Kellems® 5 Channel TredTrak Cable Protection System

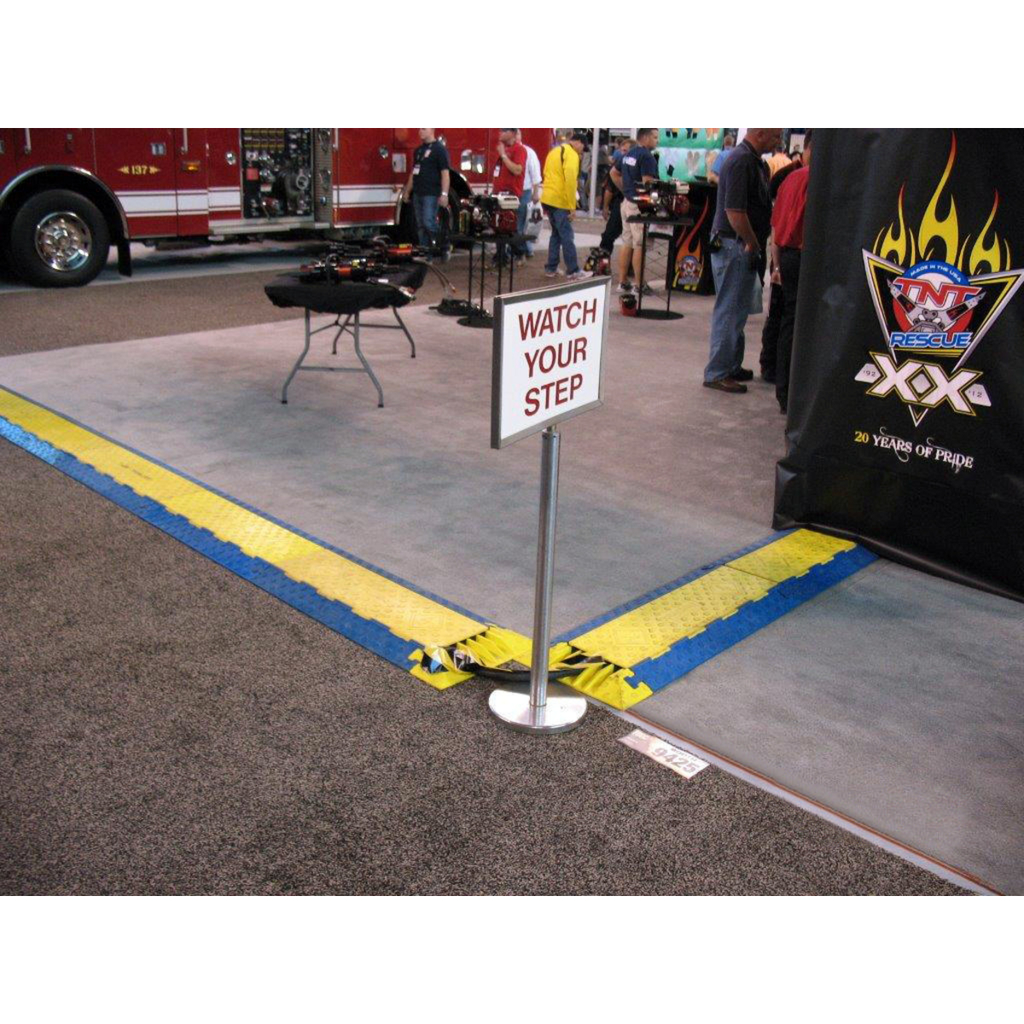

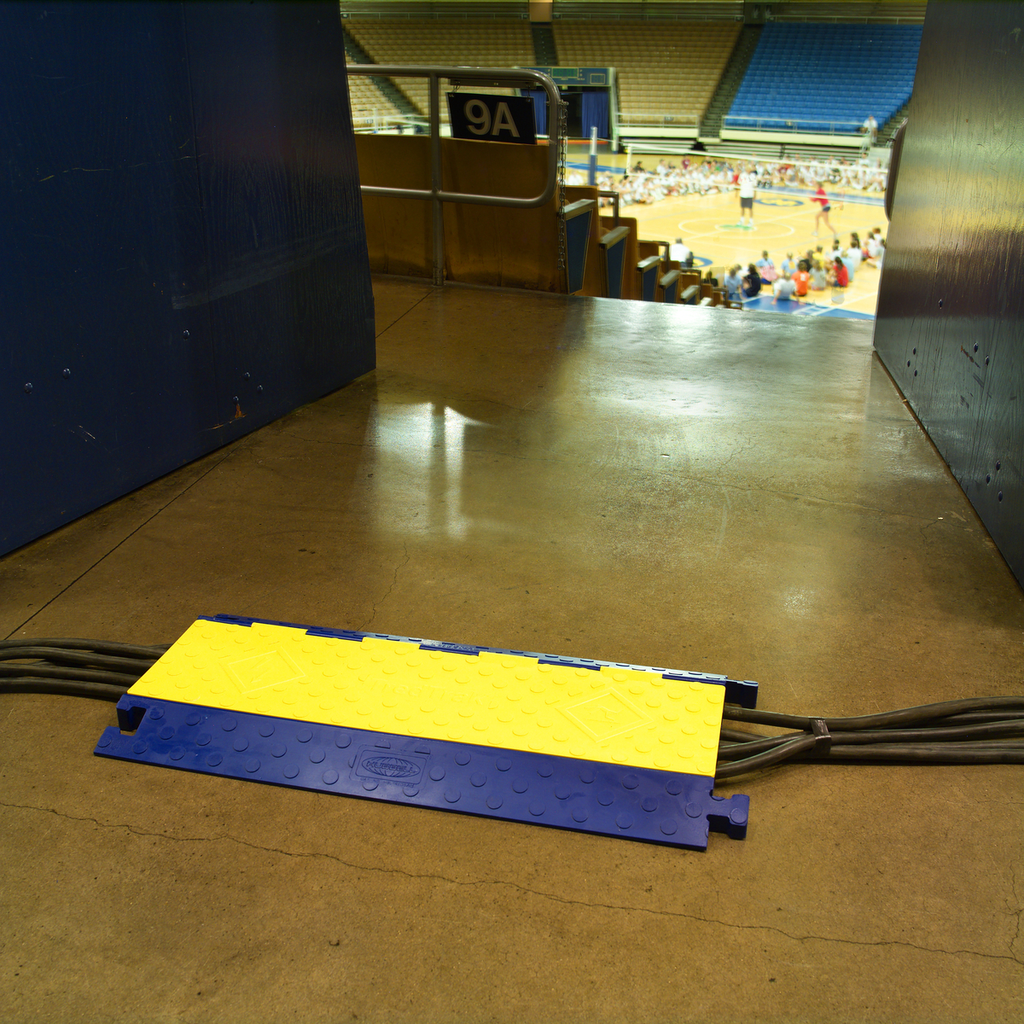

The Kellems® 5 Channel TredTrak is a cable management and protection system designed to safeguard cables and hoses from pedestrian and occasional light vehicular traffic. Ideal for temporary installations, it is widely used by electrical distributors and switchgear suppliers to ensure safety and compliance in industrial, commercial, and public environments. This system helps prevent cable damage, reduces trip hazards, and supports compliance with electrical and safety codes.

Specifications

• Application: Complete Kit
• Color: Blue, Yellow
• Dimensions: 3 ft Length x 17.5 in Width x 1.95 in Height
• Product Weight: 9.9970 lbs
• Mounting: Non-Mounted
• Channel Capacity - Max Diameter: 1.30 in (33 mm)
• Load Capacity (5 Channel at 70°F/21°C): 10,500 lbs (46,700 N)
• Load Capacity (5 Channel at 120°F/49°C): 6,500 lbs (28,900 N)
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBLTRED5B

Features

• Constructed from UV stabilized polyurethane elastomer for durability and chemical resistance
• Modular five-channel system designed to protect cables and hoses up to 1.31 inches in diameter

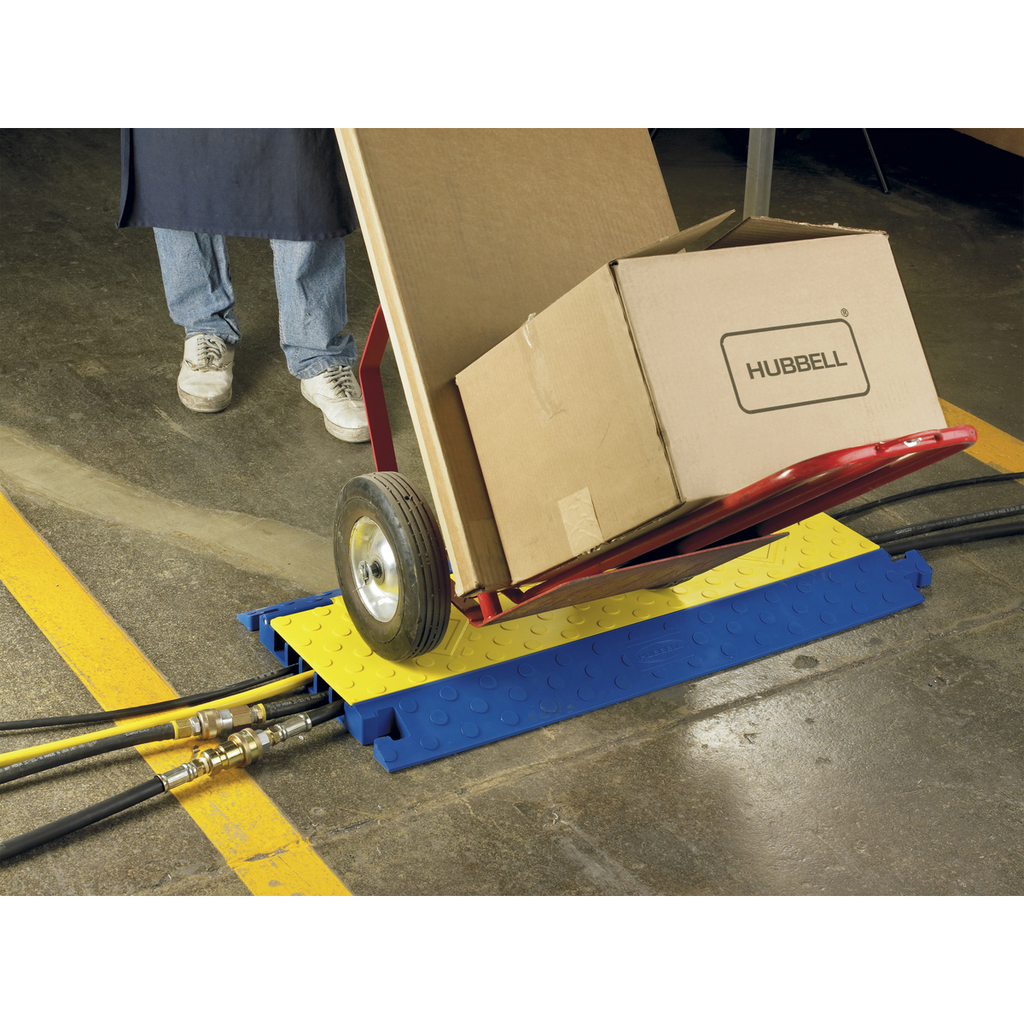

• Supports pedestrian and light vehicle traffic, suitable for industrial, institutional, and commercial applications
• Complies with NEC Articles 518 and 525 for insulating cables in public areas such as carnivals and convention centers
• Easy assembly with interlocking male and female keys for secure installation
• Designed for temporary use in accordance with electrical, building, and safety codes
• Non-mounted design allows flexible placement on stable surfaces
• Resistant to common motor oils, gasoline, and diesel fuel; chemical compatibility should be tested prior to use
• Load capacity varies with environmental conditions and type of load; suitable for momentary loads only
• Maintenance includes cleaning with detergent and water, inspection for damage, and replacement if necessary
