KC-75, Conduit Cable Connector
SKU: #315767
Part: #KC-75
UPC: 783126314304
KC-75, Conduit Cable Connector
SKU: #315767
Part: #KC-75
UPC: 783126314304
Next day delivery
Description

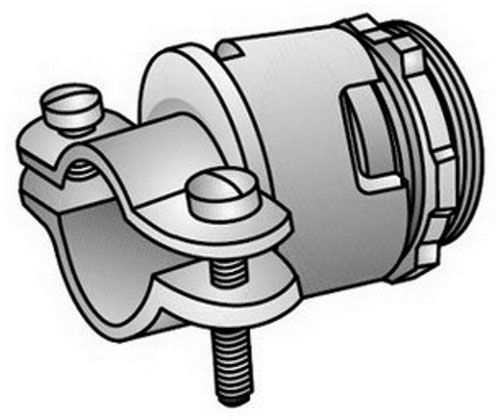

KC-75, Conduit Cable Connector - Cable Connector for Electrical Distribution
The KC-75 conduit cable connector by O-Z Gedney is designed to ground and secure armored cable, flexible metal conduit, interlocked metal clad cables, as well as non-metallic and service entrance cables to electrical boxes and enclosures. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable fittings and is compatible with various cable types in commercial and industrial applications.
Specifications
- Material: Electro Zinc Plated Malleable Iron
- Connection: Male NPS Hub X Screw Clamp
- Installation: (2) Screw
- Cord Size: 1-3/32 inches
- Conductor Range: 7/8 - 13/32 IN
- Product Weight: 0.1800 lbs
Features
- Used to ground and secure armored cable, flexible metal conduit, and interlocked metal clad cables to boxes and enclosures
- Secures non-metallic (NM) and service entrance (SE) cables to boxes and enclosures
- All connectors have male NPS threaded hubs for secure fittings
- Durable electro zinc plated finish for corrosion resistance
