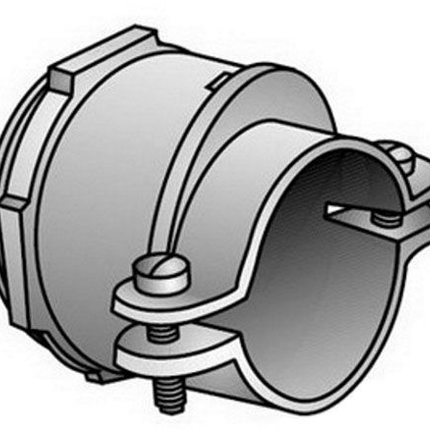

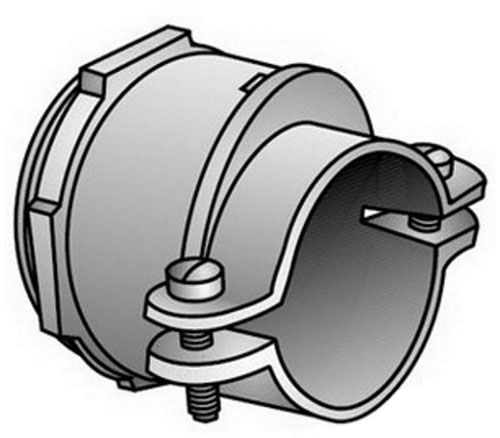

KC-125, Conduit Cable Connector for Electrical Distributor Applications

The KC-125 conduit cable connector by O-Z Gedney is designed to ground and secure armored cable, flexible metal conduit, interlocked metal clad cables, as well as non-metallic and service entrance (SE) cables to boxes and enclosures. This connector is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable fittings for secure conduit connections. It features a male NPS threaded hub and a screw clamp connection, making it compatible with a range of cable types and sizes.

Specifications

• Application: For Armored Cable, Flexible Metal Conduit, Interlocked Metal Clad Cables, Non-Metallic and Service Entrance Cable
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Connection: Male NPS Hub X Screw Clamp
• Installation: (2) Screw
• Cord Size: 1-9/32 inches
• Conductor Range: 1-9/32 - 1-5/8 IN
• Product Weight: 0.4400 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: KC-125

Features

• Grounds and secures armored cable, flexible metal conduit, and interlocked metal clad cables to boxes and enclosures
• Secures non-metallic (NM) and service entrance (SE) cables to boxes and enclosures
• Male NPS threaded hubs ensure secure and standardized connections
• Durable malleable iron construction with zinc electroplated finish for corrosion resistance
• Screw clamp connection with two screws for secure installation
