ITCSN-1500-9IN-BLACK-10PCS, Heat Shrink Cable Sleeve
SKU: #13874
Part: #ITCSN-1500-9IN-BLACK-10PCS
UPC: 054007088974
ITCSN-1500-9IN-BLACK-10PCS, Heat Shrink Cable Sleeve
SKU: #13874
Part: #ITCSN-1500-9IN-BLACK-10PCS
UPC: 054007088974
Description

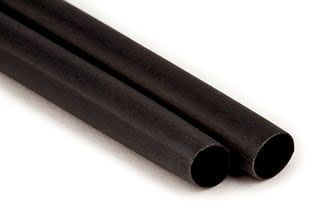

ITCSN-1500-9IN-BLACK-10PCS Heat Shrink Cable Sleeve
The ITCSN-1500-9IN-BLACK-10PCS is a 3M™ Heavy Wall Heat Shrink Cable Sleeve designed for reliable electrical insulation and mechanical protection of electrical splices, connections, and terminations. Manufactured from chemically cross-linked, thermally stabilized polyolefin, this heat shrink tubing offers robust protection against moisture, acids, alkalis, fuels, oils, ozone, and ultraviolet light. It is suitable for indoor, outdoor, overhead, direct buried, and submersible applications, making it a versatile choice for electrical distributors and switchgear suppliers managing wire and cable installations.
Specifications
- Material: Polyolefin
- Color: Black
- Length: 9 Inch
- Manufacturer: 3M
- Manufacturer Part #: ITCSN-1500-9IN-BLACK-10PCS
- Product Weight: 1.9650 lbs
- UL Listing: UL 486D
- Voltage Rating: 600 V
- Shrink Ratio: Up to 4:1
- Operating Temperature Range: -67°F to 230°F (-55°C to 110°C)
- Dielectric Strength: 500 V/mil
- Ultimate Tensile Strength: 2400 PSI (16 MPa)
- Ultimate Elongation: 475%
- Specific Gravity: 1.28
Features
- Fast and easy installation with factory-applied adhesive/sealant
- Thick wall construction resists puncture and abrasion damage
- Rugged weather-resistant protection for harsh environments
- Resistant to acids, alkalis, fuels, oils, ozone, and UV exposure
- Bonds to a wide variety of substrates including rubber, plastic, and lead
- Suitable for direct burial and submersible applications
- Provides physical protection and moisture sealing for high voltage connectors and lugs
- Compatible with solid dielectric wire and cable rated to 1000 volts
- Reliable performance for electrical splices, connections, and terminations
