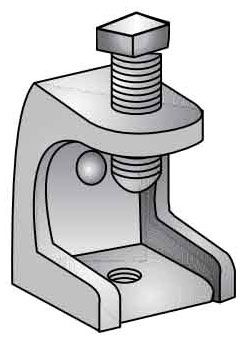

IS-500, Beam Clamp for Conduit Hanging Systems

The IS-500 Beam Clamp by O-Z Gedney is designed to provide secure support for conduit hanging systems in electrical installations. This clamp is suitable for use by electrical distributors and switchgear suppliers requiring reliable hardware for wire and cable management and lighting solutions. It ensures stable attachment to structural beams, facilitating safe and compliant conduit routing.

Specifications

• Application: For Supporting Conduit Hanging Systems
• Material: Malleable Iron Clamp, Steel Screw, Hardened Case
• Finish: Clamp - Hot Dip Galvanized, Screw - Zinc Electroplated
• Length: 1 IN
• Maximum Load: 335 LB
• Maximum Jaw Opening: 15/16 IN
• Product Weight: 0.2400 LB
• Manufacturer: O-Z Gedney
• Manufacturer Part #: IS-500
• UPC: 783126310009

Features

• Constructed from durable malleable iron with a hardened steel screw for long-lasting performance
• Hot dip galvanized clamp finish provides corrosion resistance for ordinary location applications
• Zinc electroplated screw enhances durability and secure fastening
• Designed for easy installation on structural beams with a maximum jaw opening of 15/16 inch
• Rated for a maximum load capacity of 335 pounds, suitable for various conduit sizes

Downloads & Links

• Catalog
