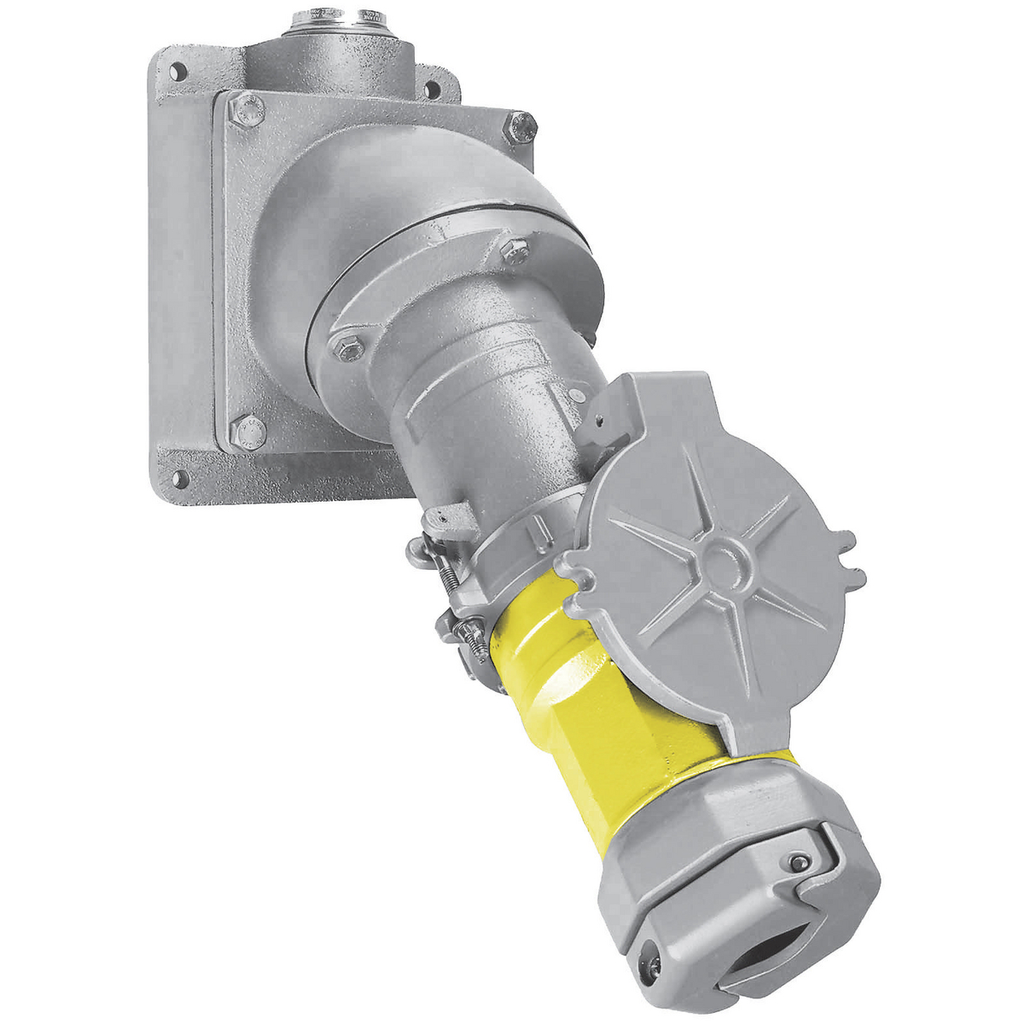

InternationalMarine Grade, Female, Inlet, 200A – Heavy Duty Pin and Sleeve Connector

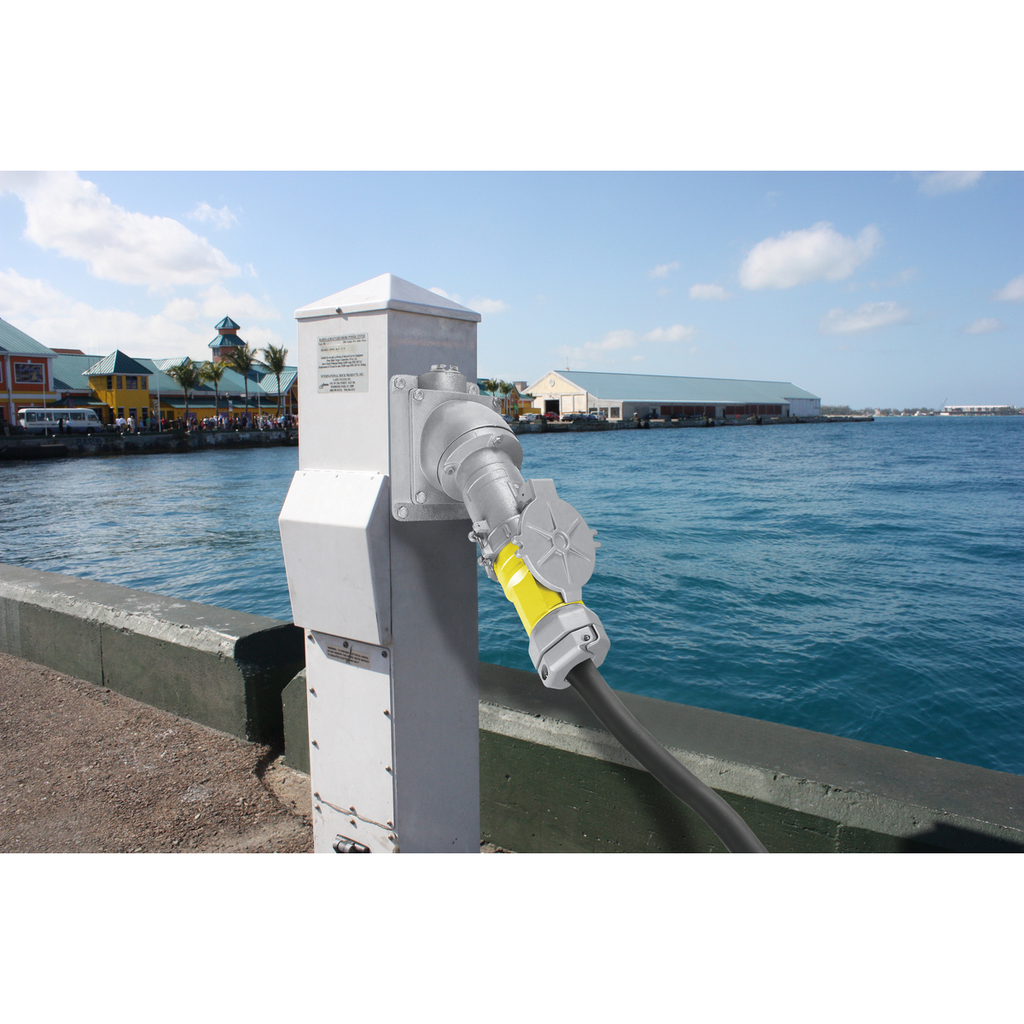

This International Marine Grade Female Inlet is a heavy-duty pin and sleeve device designed for demanding electrical applications requiring reliable power connections. Rated for 200 amperes and 600V AC, this 4-pole, 5-wire grounding inlet is suitable for harsh environments including marine and industrial settings. It features a metallic body with a nylon shroud for enhanced durability and watertight protection, making it ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring robust and secure connections.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: M5200BS1R
• Amperage Rating: 200 A
• Current: 200 amperes
• Voltage Rating: 600 V AC
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection Type: Pressure Screw Terminals
• Environmental Conditions: Watertight
• Application: Metallic with Nylon Shroud
• Width: 9.3 in
• Product Weight: 10.25 lbs
• Country of Origin: United States
• Made in USA: Yes
• NEMA Rating: Non-NEMA

Features

• Heavy Duty International Pin and Sleeve design for durable and reliable connections
• Marine grade construction for resistance to harsh and corrosive environments
• Watertight design suitable for marine and industrial applications
• Pressure screw terminals ensure secure and stable wiring connections
• Compatible with IEC 60309 standards for pin and sleeve devices
• Manufactured in the USA, ensuring quality and compliance with industry standards
