Features

• Time Saver - maximum cycle time of 8 seconds
• Patent-Pending Auto-Retract Technology - Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, for longer tool lifee
• 360° Rotating Head - Rugged, patent-pending swivel design to punch at any angle
• Compact, Ergonomic Design - Ergonomic tapered grip for easy one-handed operation
• Gator Eye® Compatible - with i-Press™ software, monitor tool performance including peak forces and number of cycles
• Compatibility - Works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH™, LS50L2 and 746A ram
• Case made in the USA

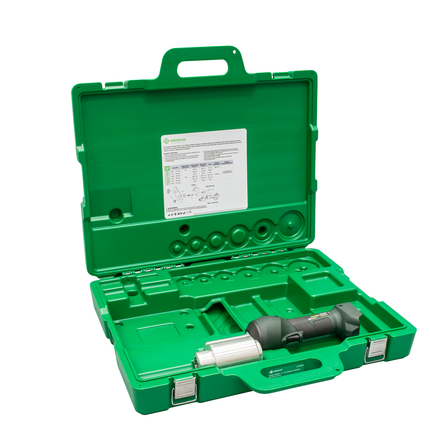

• KCC-LS2 carrying case

Application

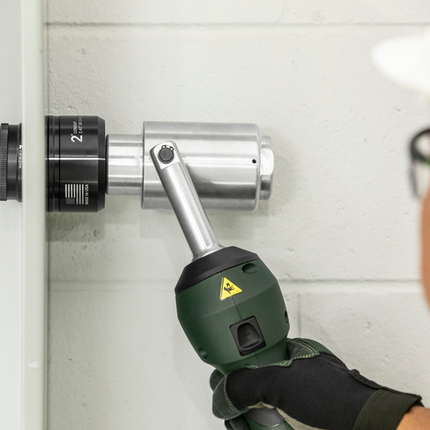

• For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics

Specifications

• Country of Origin: United States
• Shape: Round
• Type: Intelli-PUNCH™ 11-Ton Battery-Hydraulic Knockout Driver
• Size: Case accommodates 1/2" - 2" conduit size knockouts (hole size - 0.89" - 2.42" or 22.5 mm - 61.5 mm)
• Material: Punch up to 10 ga mild steel or 12 ga stainless steel
• Consists Of: Intelli-PUNCH knockout driver
