Features

Certifications

• RoHS Compliant
• NAFTA Compliant
• CSA Listed
• ETL Listed

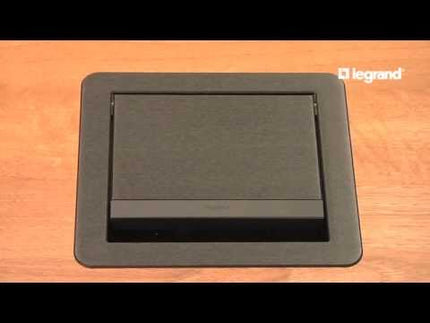

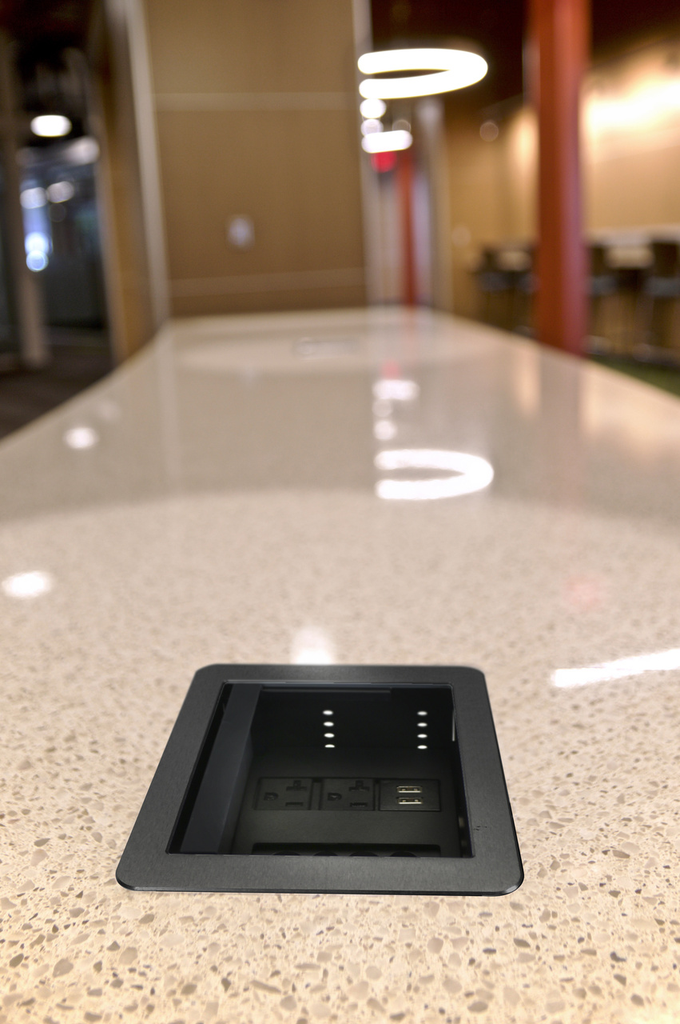

• Attractive Design: InteGreat™ A/V Table Boxes have a brushed, anodized cover available in either black or aluminum finishes, with beveled edges and a ““soft-touch”” handle. The ““pocket”” door in the cover fully recesses into the box when open, giving access to connections without obstructing the work surface. A finishing plate hides hardware on the activation surface and allows for labeling of the AVIP plates.
• Adjustability: The activation surface of the InteGreat™ A/V Table Box can be adjusted down, in 1/2”” [12.7mm] increments, from 1”” to 4”” [25mm to 102mm] to allow the cover to close even when using large style connectors.

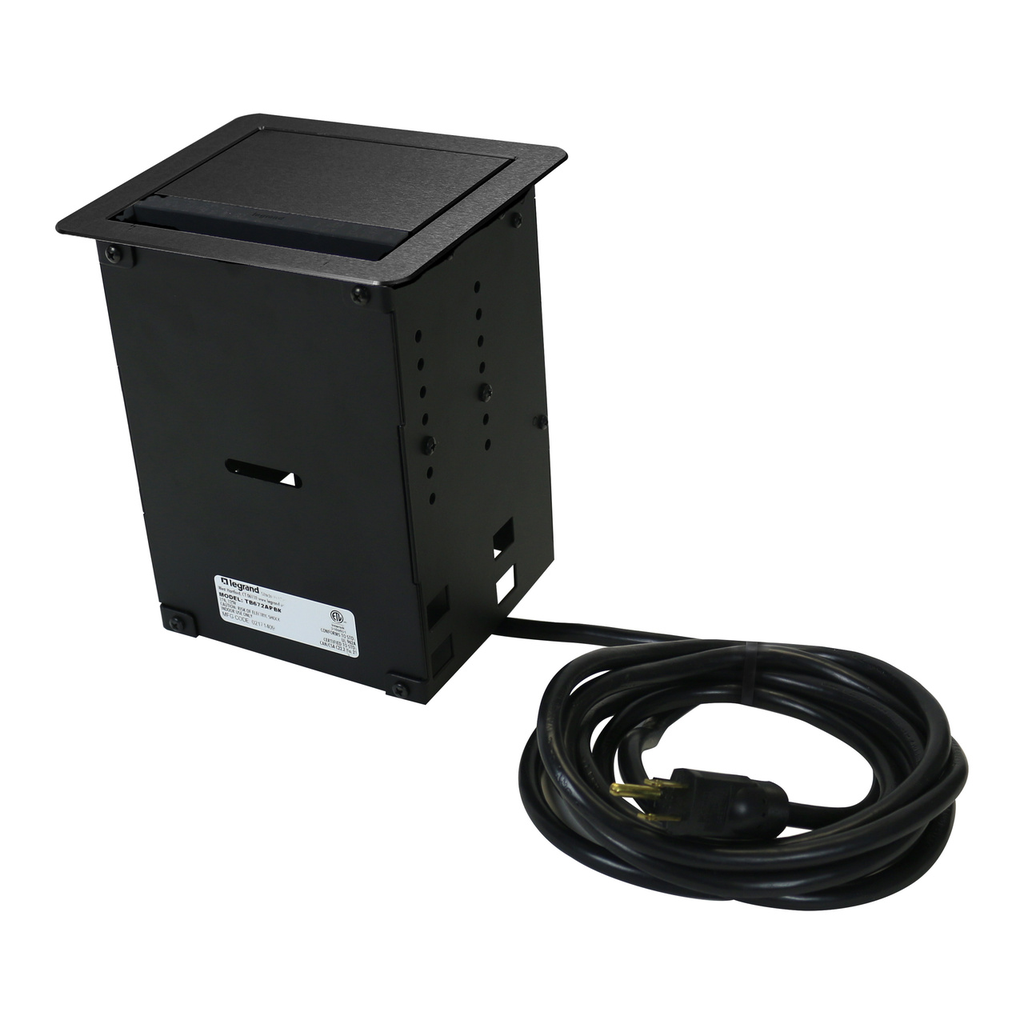

• Ease of Installation: Hole cuts are made easy with the included template. Simply configure your connectivity, set your activation height, place box in the cut out, and secure it below the table with the bracket and set screw. The cover flange allows for 1/4”” [6.4mm] of forgiveness in the cut out opening. InteGreat™ A/V Table Boxes have a 12' SJT cord for easy connection to the electrical infrastructure.

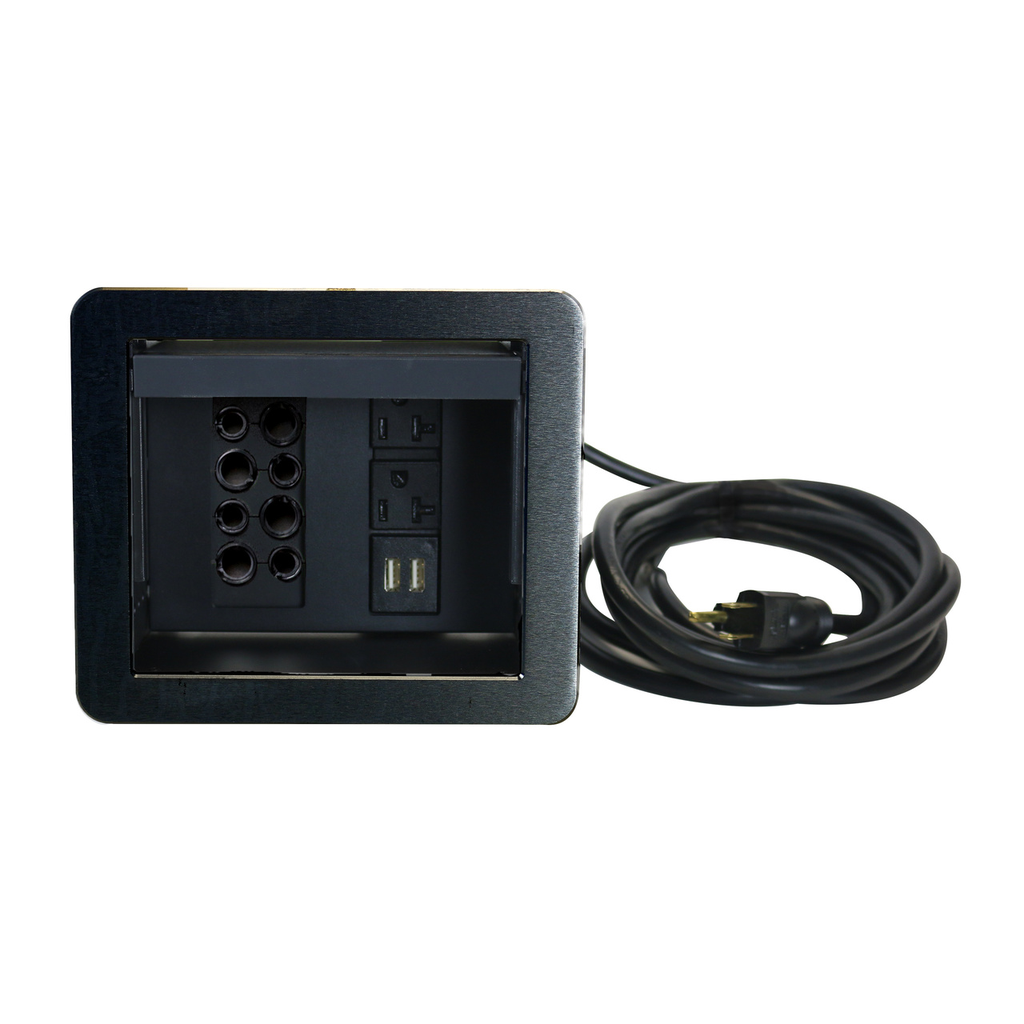

• Multiple Connectivity Options: InteGreat™ A/V Table Boxes are supplied with a cable grommet kit that can accommodate up to eight pull out connections. Boxes can also accept up to five Wiremold AVIP, or Extron® MAAP connectors. Each box also has two 15 amp receptacles in the top compartment and one 15 amp receptacle on the underside of the box.
• USB Charging - InteGreat™ A/V Tables Boxes come standard with 2 USB-A Charging Ports, 3.1A shared.

Specifications

• Product Line: Wiremold

Specifications

• Depth: 8.25 in
• Length: 6.937 in
• Width: 6.0 in
• Country of Origin: United States
