InsulgripFemale Connector Body 60A Style 2
SKU: #143811
Part: #HBL460CS2W
UPC: 783585010625
InsulgripFemale Connector Body 60A Style 2
SKU: #143811
Part: #HBL460CS2W
UPC: 783585010625
Next day delivery
Description

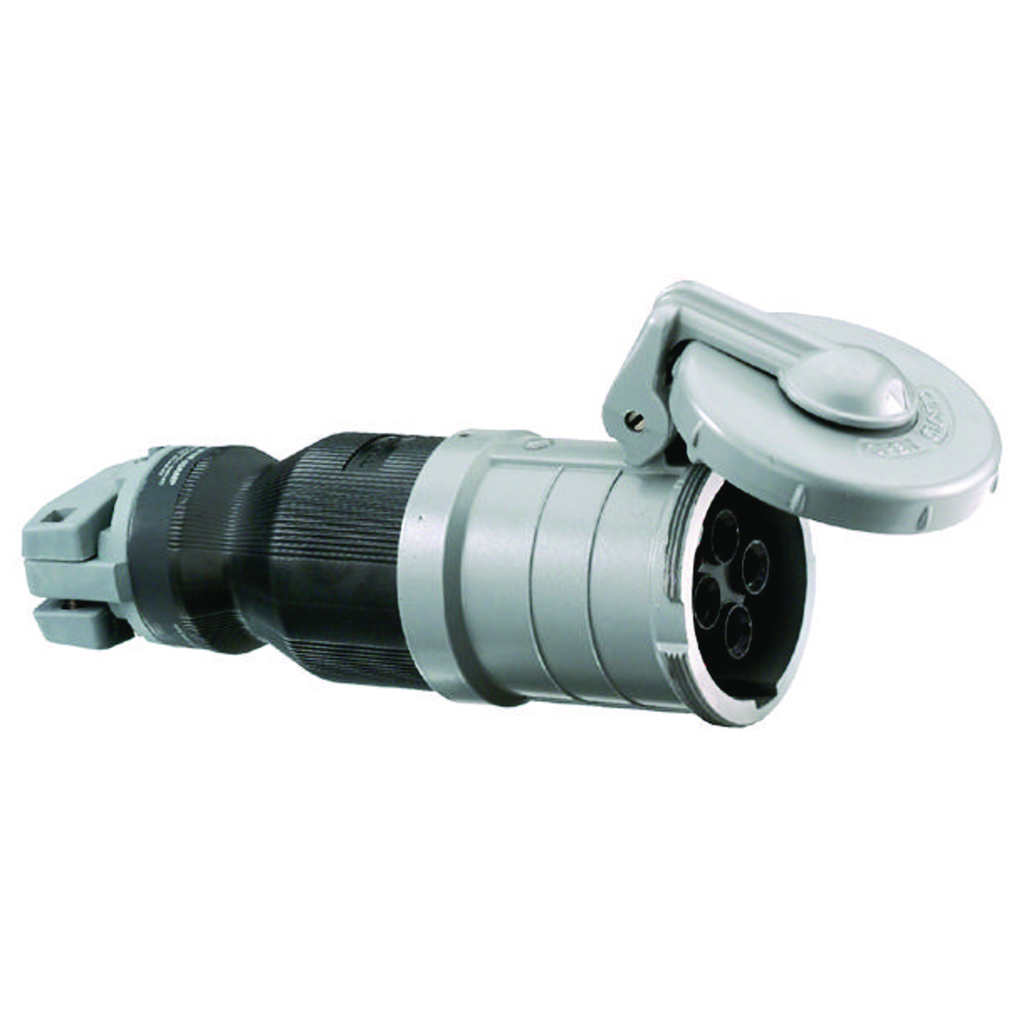

Insulgrip Female Connector Body 60A Style 2 – Industrial Electrical Connector
The Insulgrip Female Connector Body 60A Style 2 is a heavy-duty industrial grade pin and sleeve device designed for secure and reliable power connections in demanding electrical distribution applications. Ideal for use by electrical distributors and switchgear suppliers, this connector supports 60 amperes at 600V AC with a 3-pole, 4-wire grounding configuration. Its composite insulated body with a metallic and nylon shroud ensures durability and watertight performance suitable for harsh environments.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL460CS2W
- Current Rating: 60 amperes
- Voltage Rating: 600V AC
- Poles: 3-Pole
- Wires: 4-Wire Grounding
- Conductor Range: #6 AWG to #4 AWG
- Material: Composite
- Color: Black and Gray
- Mounting: Cord Mounted
- Connection Type: Pressure Screw Terminal
- Insulation: Insulated Body
- Environmental Conditions: Watertight
- Product Weight: 3.2 lbs
- Width: 5.3 in
- Country of Origin: United States
- Made in USA: Yes
- NEMA Rating: Non-NEMA
Features
- Heavy Duty Insulgrip design for industrial applications
- Female connector body with terminal screws for secure wiring
- Watertight construction suitable for wet and corrosive environments
- Composite body with metallic and nylon shroud for enhanced durability
- Cord mounted for flexible installation
- Pressure screw terminal connection ensures reliable electrical contact
- Complies with industrial-grade performance standards
- Manufactured in the USA for quality assurance
