Insulation Tester by IDEAL Industries – Digital Insulation Meter

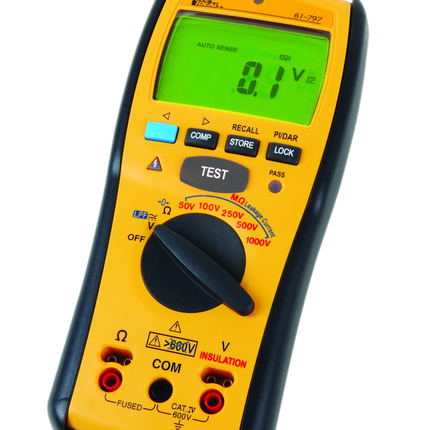

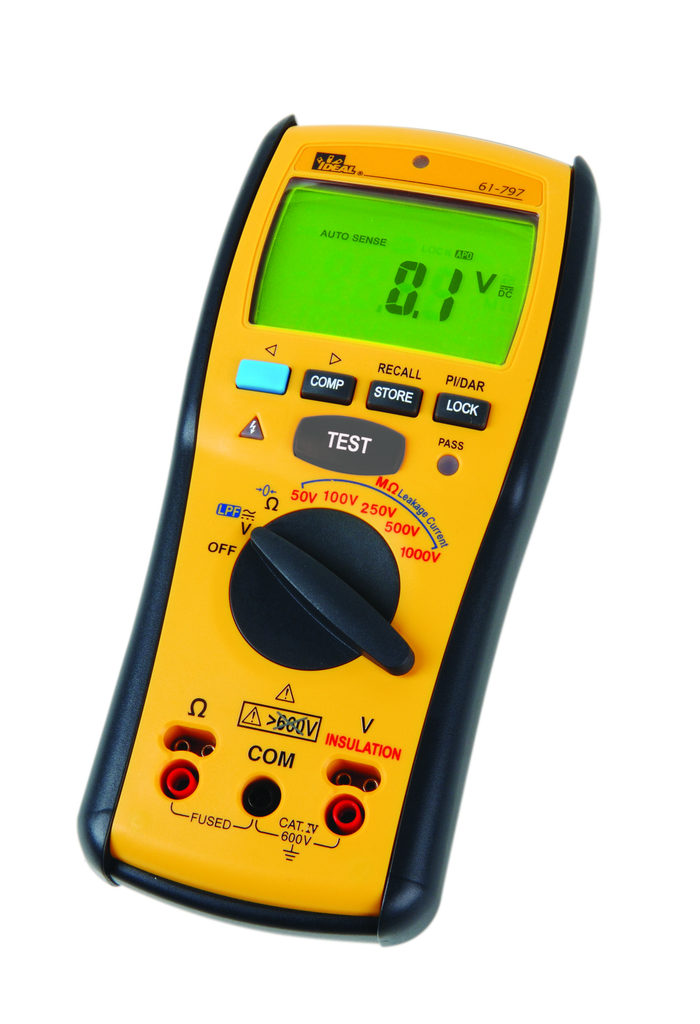

The IDEAL Industries 61-797 Insulation Tester is a professional-grade digital insulation meter designed for industrial and commercial electrical applications. It is essential for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers to assess insulation integrity and safety. This tester measures insulation resistance, leakage current, and earth-bond resistance, helping to prevent equipment failure and electrical hazards during installation and routine maintenance.

Specifications

• Test Voltages: 50/100/250/500/1000 VDC
• Voltage AC/DC Range: 0.1 to 600.0 V
• Insulation Resistance: Up to 20 GΩ
• Low Resistance Test: 0.01 Ω to 40.00 kΩ
• Display: 4000 count digital with analog arc
• Safety Rating: CAT IV – 600V
• Power Supply: Four 1.5V AA batteries
• Battery Life: Approximately 40 hours or 1000 tests at 1000V/1MΩ
• Dimensions: 8.1” H x 3.7” W x 2.0” D (207 mm x 95 mm x 52 mm)
• Weight: 22.3 oz (630 g)
• Operating Environment: 32°F to 104°F (0°C to 40°C), < 75% RH
• Storage Environment: -4°F to 140°F (-20°C to 60°C), < 80% RH
• Safety Certifications: Complies with UL/IEC/EN 61010-1, 61010-031, EN61557, EN 61326-1 +1A (EMC)

Features

• Test voltages selectable at 50, 100, 250, 500, and 1000 VDC for versatile insulation testing
• Automatic calculation of Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for insulation quality assessment
• Auto sensing AC/DC voltage measurement up to 600 V
• Low Pass Filter (LPF) to filter out high-frequency noise for accurate readings on complex waveforms
• Earth-bond resistance testing capability
• Test inhibition feature for voltages above 30 V to ensure user safety
• Digital display with backlit auto-sensing for visibility in low light environments
• Compare pass/fail mode with green pass indicator
• Remote test probe and remote test button for convenient two-handed operation
• Store and recall memory function for test data management
• Auto discharge and auto power off to protect equipment and conserve battery life
• Protective rubber boot and carrying case included for durability and portability
• Live voltage hazard indicator for enhanced safety awareness
• 2-year warranty for product reliability assurance
