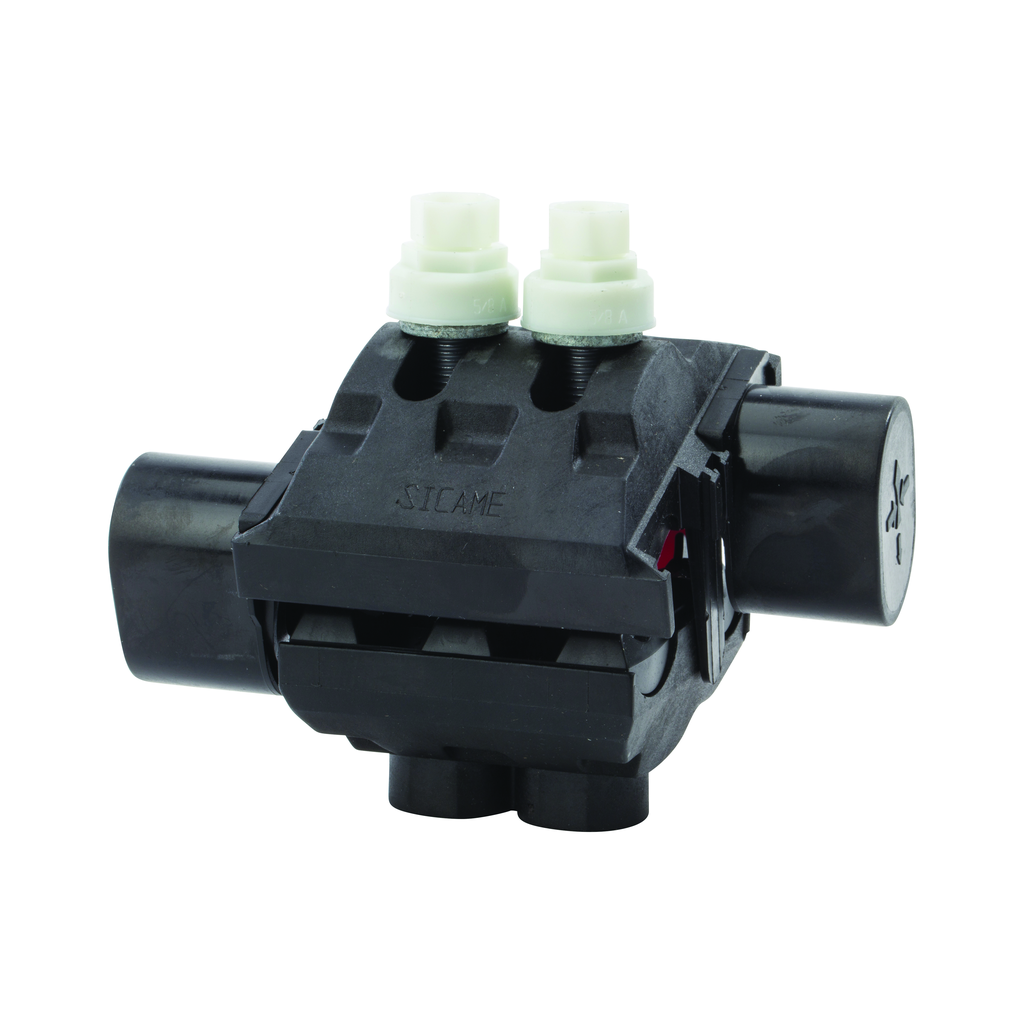

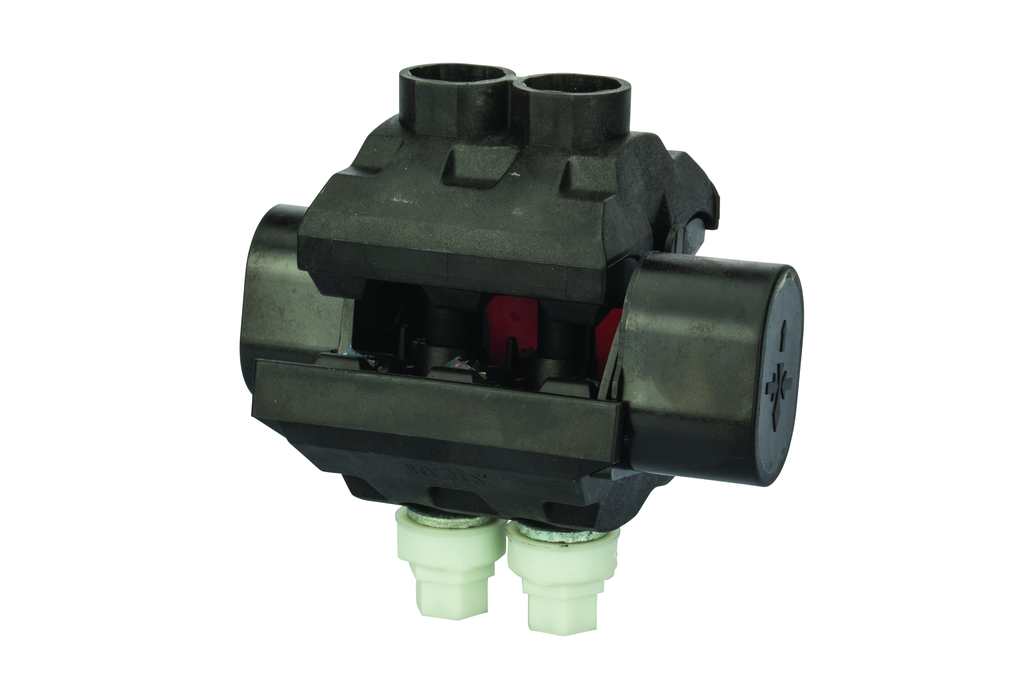

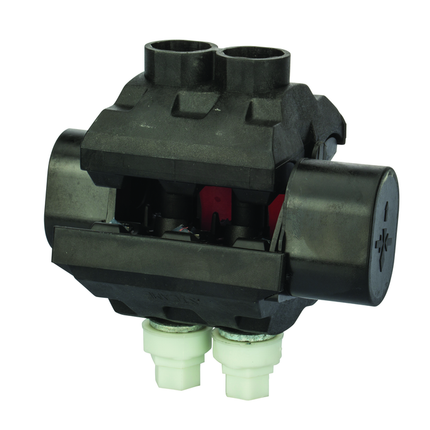

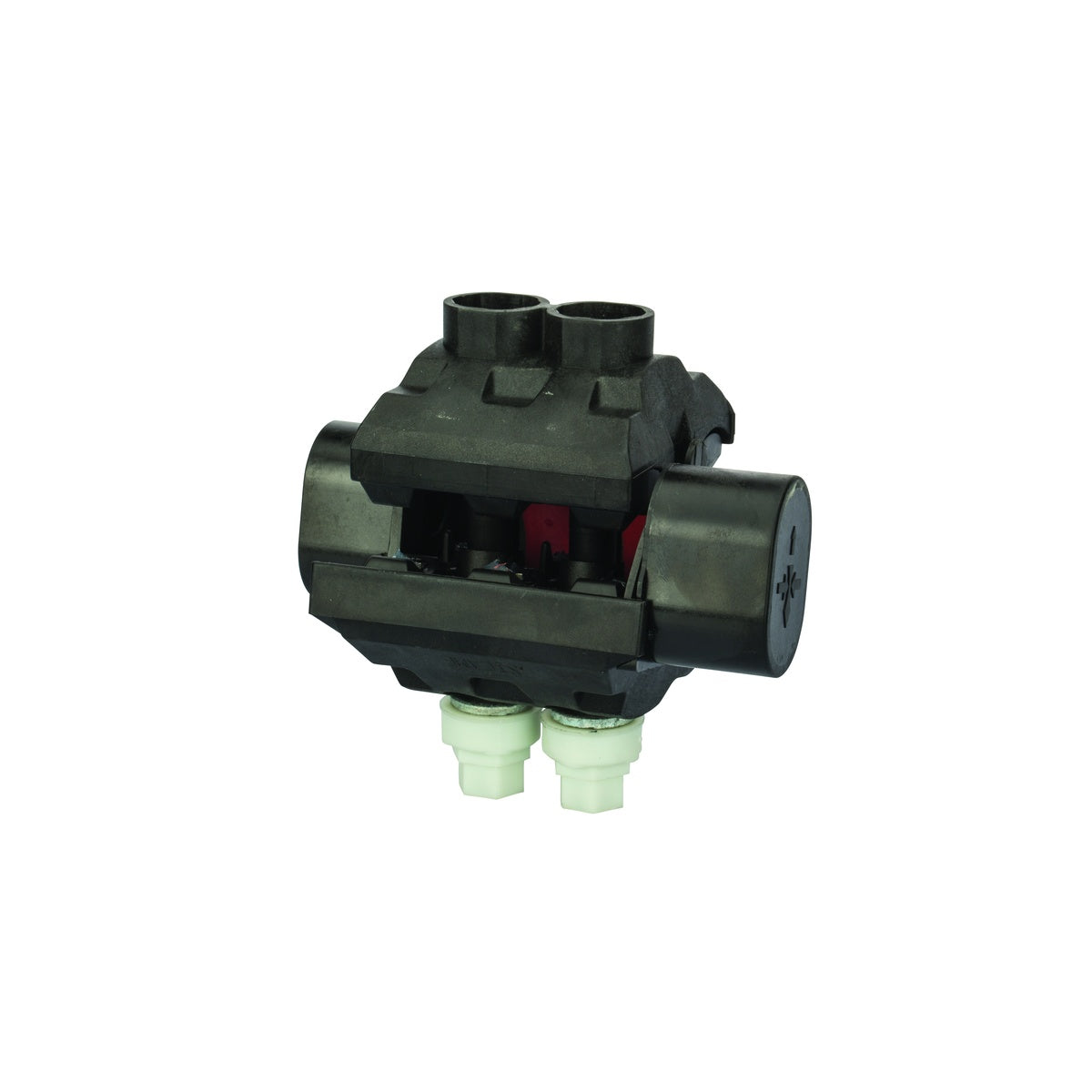

Insulation Piercing Connector 750-500 MC Electrical Connector

This insulation piercing connector is designed for use in electrical distribution systems, suitable for copper-copper, copper to aluminum, and aluminum to aluminum conductor applications. It provides a secure, watertight, and corrosion-free connection without the need to strip wire insulation, enabling installation on energized conductors without risk of contact. Ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable connection solutions.

Specifications

• Conductor Size: 750-250 MCM (Main)
• Amperage Rating: 700 (CU Amps) - 545 (AL Amps)
• Material: Fiber Reinforced Thermal Plastic
• Finish: Thermal Plastic
• Color: Black
• Dimensions (L x W x H): 4.3 in x 3.3 in x 4.7 in
• Maximum Temperature: 90 degrees celsius
• Mounting: Clamp
• Product Weight: 1.66 lbs
• Manufacturer Part #: IPCS7550
• Country of Origin: France

Features

• Insulation piercing design eliminates need to strip wire
• Safe installation on energized conductors with no contact points
• Exclusive turbo spacer keeps tap side open during tightening
• Watertight and corrosion-free connection
• No spacer required between connections
