Insulation Piercing Connector 500-4/0 AW
SKU: #304226
Part: #IPCS5040
UPC: 662381082688
Insulation Piercing Connector 500-4/0 AW
SKU: #304226
Part: #IPCS5040
UPC: 662381082688
Total Price: $142.89 per each Sold in increments of 1 each
Description

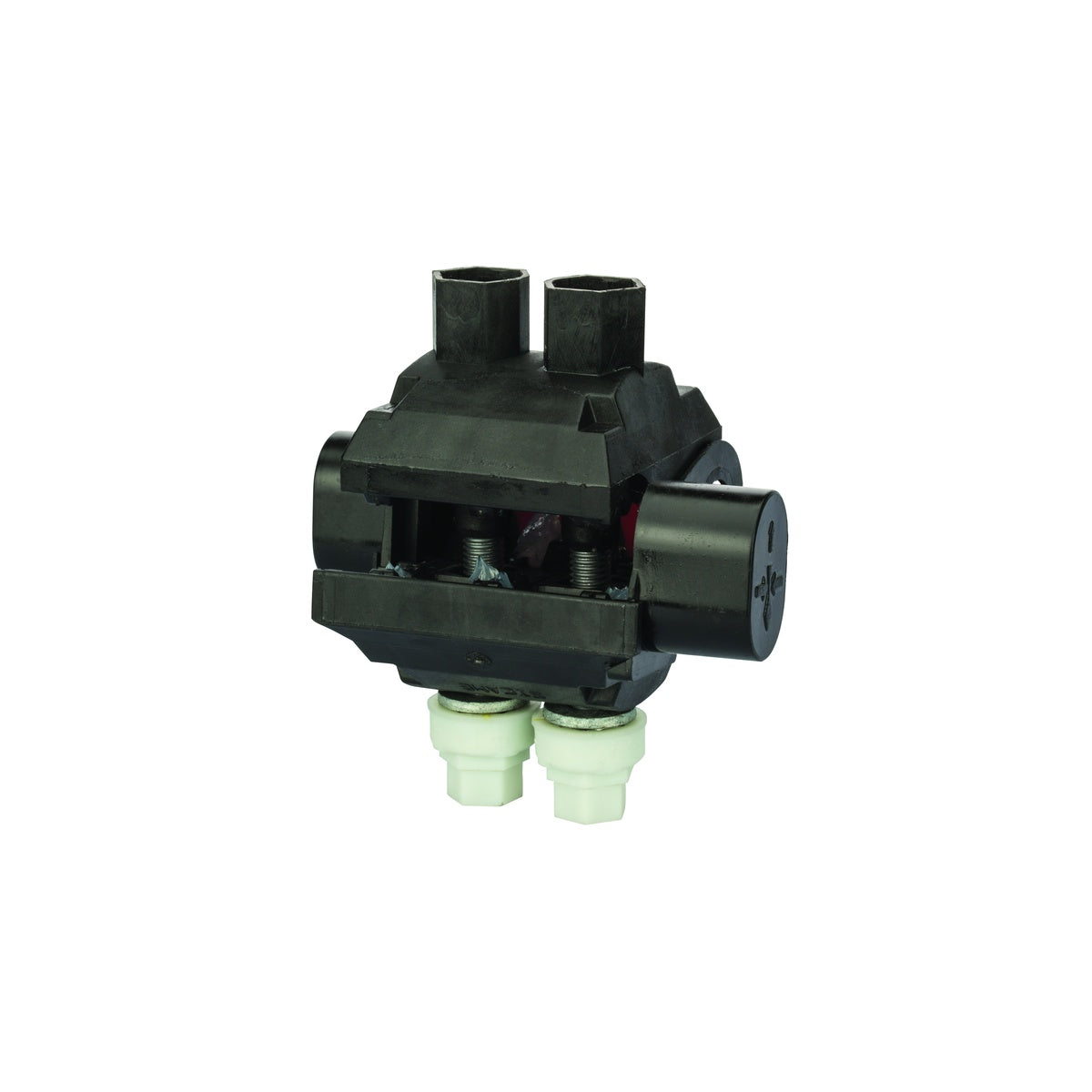

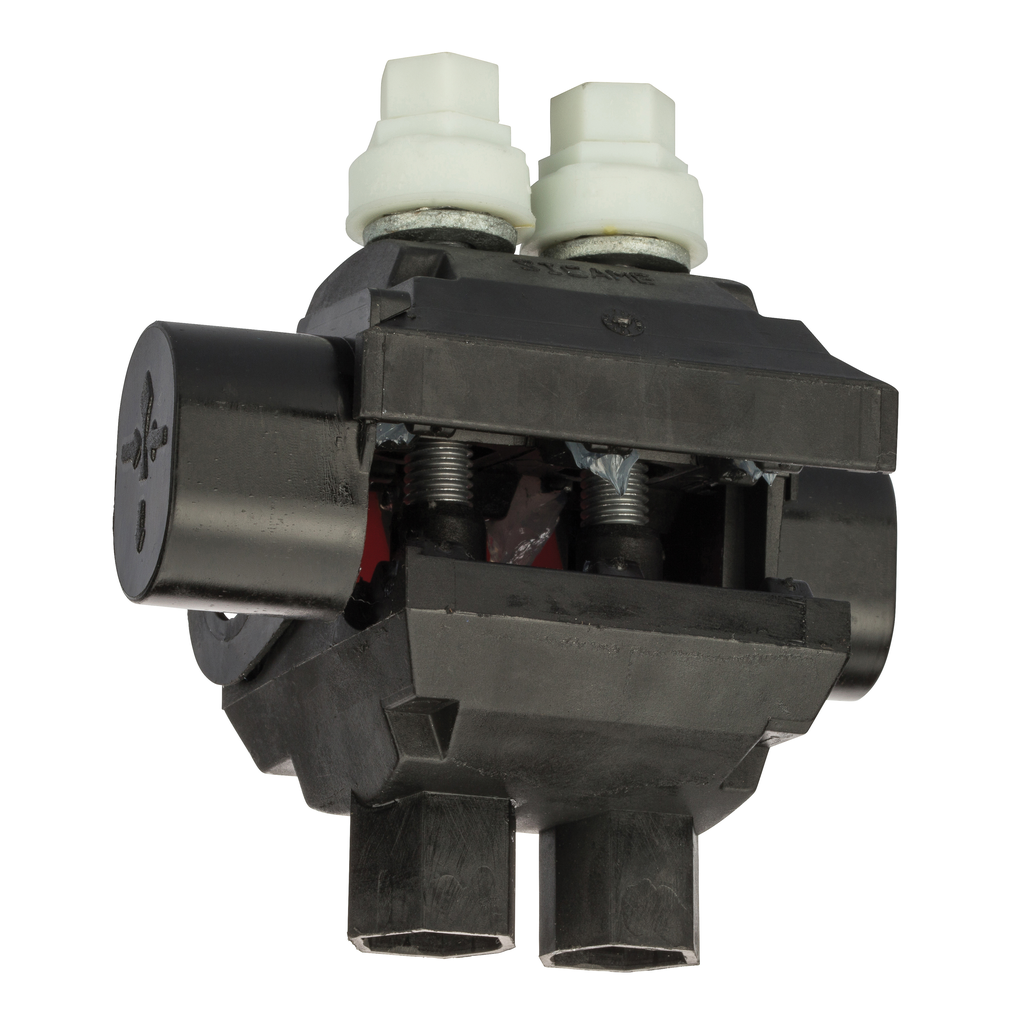

Insulation Piercing Connector 500-4/0 AW - Electrical Connector
The Insulation Piercing Connector 500-4/0 AW by NSI Industries is designed for reliable electrical connections in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum applications. This connector enables secure, watertight connections without the need to strip wire insulation, making it suitable for energized conductors. It is ideal for electrical distributors and switchgear suppliers looking for efficient wire and cable connection solutions.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPCS5040
- Conductor Size: 500 MCM - 2/0 AWG (Main)
- Amperage Rating: 405 (CU Amps) - 315 (AL Amps)
- Material: Fiber Reinforced Thermal Plastic
- Finish: Thermal Plastic
- Color: Black
- Dimensions (H x W x L): 4.5 in x 3 in x 3.9 in
- Mounting: Clamp
- Maximum Temperature: 90 degrees Celsius
- Voltage Rating: 600V
- Country of Origin: France
Features
- Safe to use and fully insulated; no need to strip wire or use tape
- Can be installed on energized conductors without any live contact
- Exclusive “turbo spacer” keeps tap side open during main conductor tightening
- Watertight and corrosion-free connection sealed by a rubber grommet
- No spacer required between connections
- Double shear-head bolts ensure consistent, reliable connections
- Suitable for solid and stranded wires
- Compatible with a wide wire range (#14 AWG to 750 MCM)
- Installation requires no special tools or additional hands
