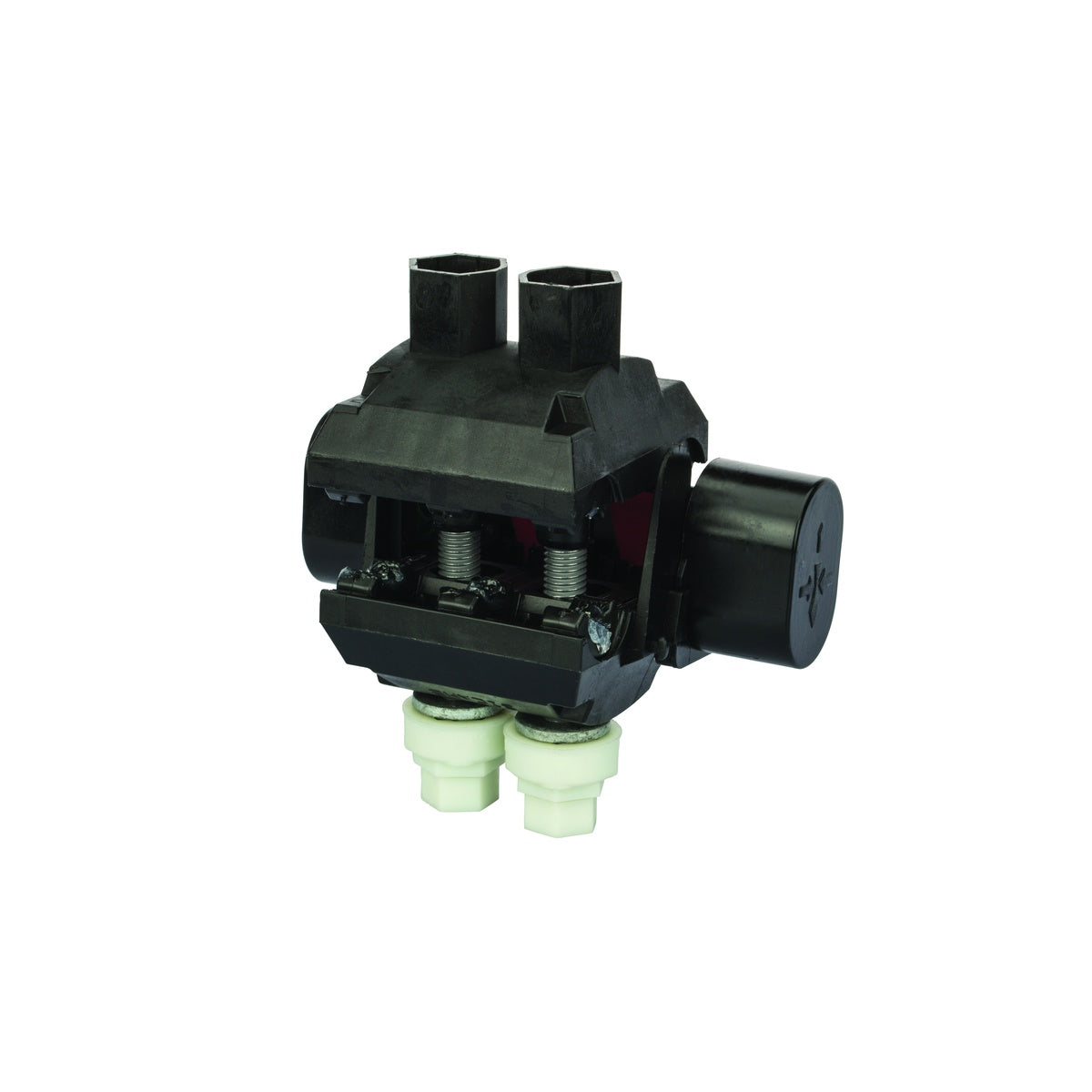

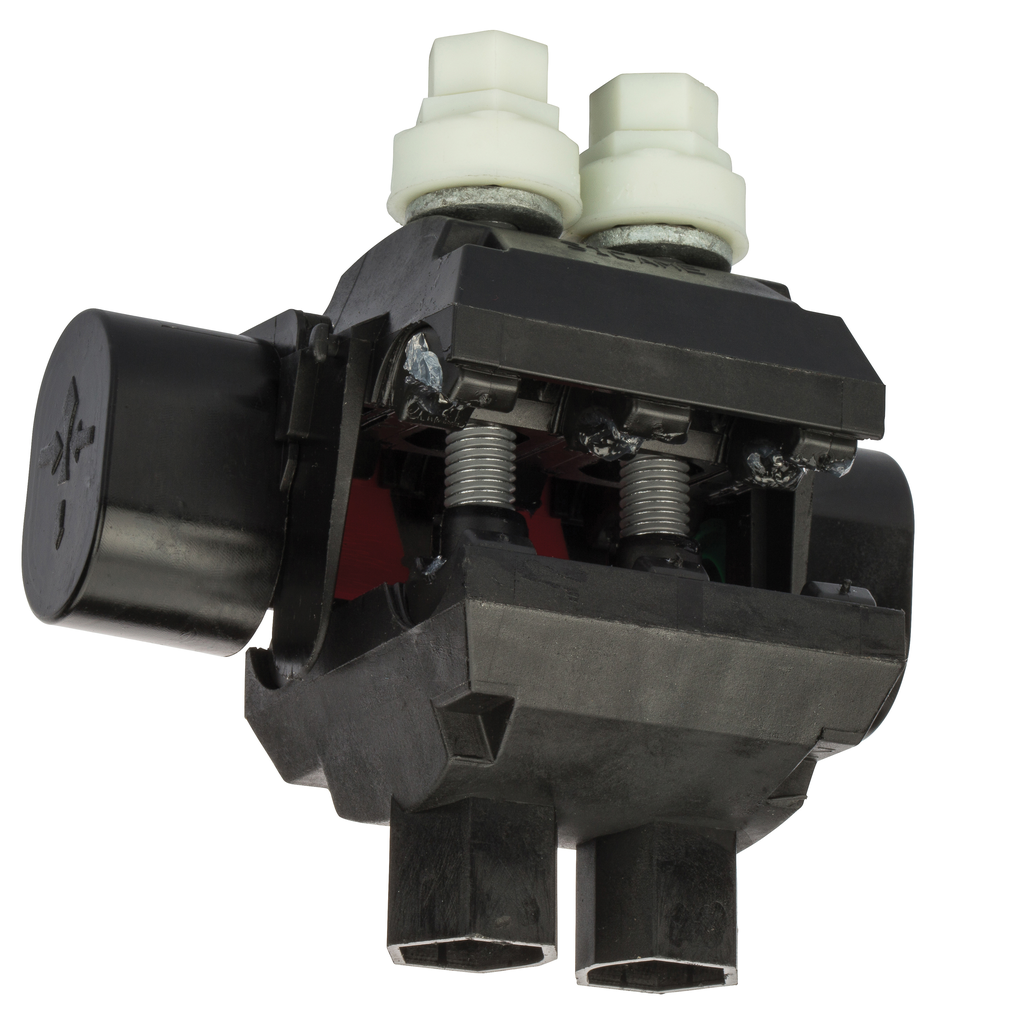

Insulation Piercing Connector 500-350 MC for Electrical Connections

This Insulation Piercing Connector is designed for secure and efficient connections in copper-copper, copper-aluminum, and aluminum-aluminum wire applications. Suitable for electrical distributors and switchgear suppliers, it enables installation on energized conductors without the need to strip wire, ensuring safety and reliability in wire and cable management.

Specifications

• Conductor Size: 500 MCM-4/0 AWG (Main)
• Amperage Rating: 570 (CU Amps) - 445 (AL Amps)
• Material: Fiber Reinforced Thermal Plastic
• Finish: Thermal Plastic
• Color: Black
• Dimensions (L x W x H): 3.9 in x 3 in x 4.5 in
• Mounting: Clamp
• Max. Temperature: 90 degrees celsius
• Product Weight: 1.11 lbs
• Country of Origin: France
• Manufacturer Part #: IPCS5035

Features

• Insulated design eliminates the need to strip wires
• Safe installation on energized conductors with no contact points
• No spacer required between connections
• Exclusive turbo spacer keeps tap side open while tightening main conductor
• Watertight and corrosion-free construction
