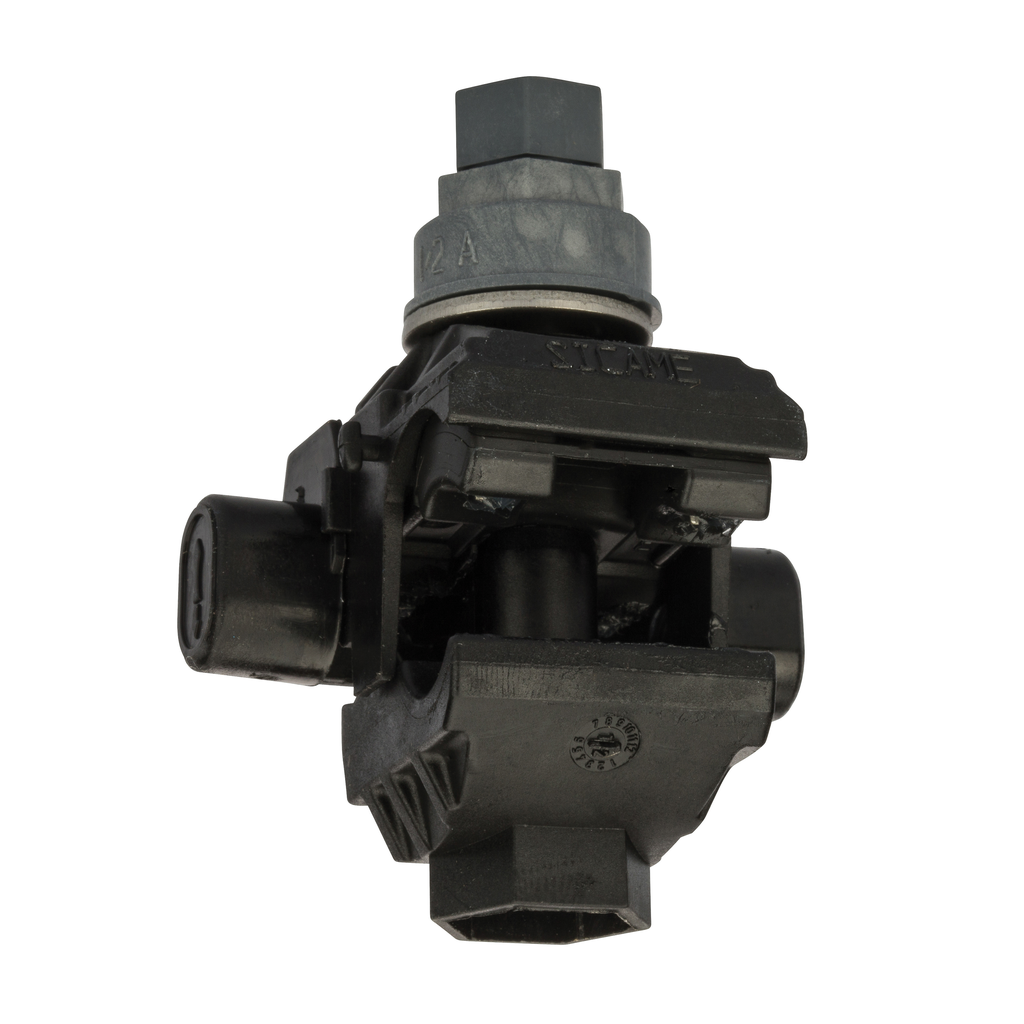

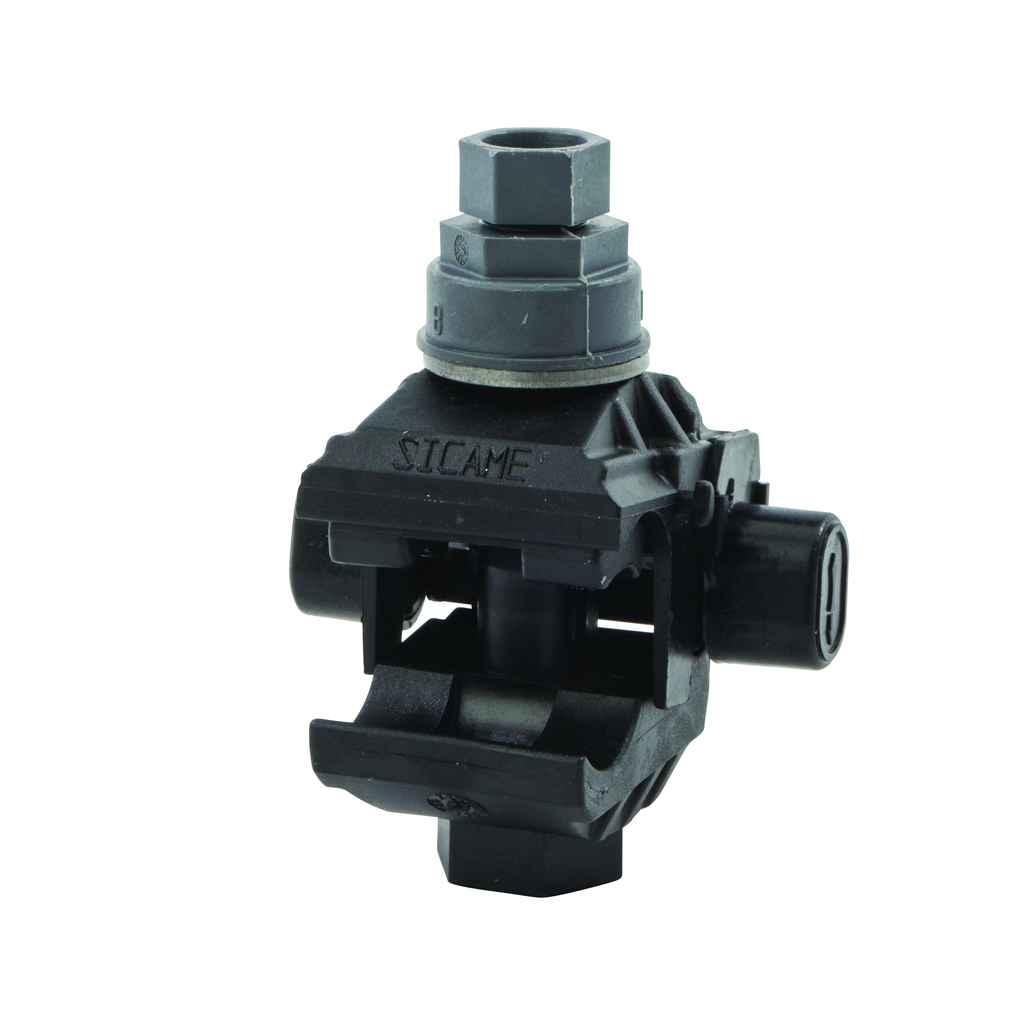

Insulation Piercing Connector 2/0-10 AWG for Electrical Connections

This Insulation Piercing Connector (IPC) by NSI Industries is designed for reliable and safe electrical connections in wire and cable installations. It is suitable for copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum applications without the need to strip wire insulation. The connector supports energized conductor installation, making it ideal for electrical distributors and lighting solutions requiring efficient and secure wire tapping.

Specifications

• Conductor Size: 2/0-4 AWG (Main)
• Amperage Rating: 55 CU Amps, 40 AL Amps
• Maximum Temperature: 90 degrees Celsius
• Material: Fiber Reinforced Thermal Plastic
• Finish: Thermal Plastic
• Color: Black
• Dimensions (H x W x L): 3 in x 1.8 in x 2.2 in
• Mounting: Clamp
• Voltage Rating: 600V (from specification sheet)
• UL Listed Wire Connector (UL486B)
• Meets ANSI C119.4 requirements
• Manufacturer: NSI Industries
• Country of Origin: France
• Manufacturer Part Number: IPCS2001

Features

• Safe to use, fully insulated—no need to strip wire or use tape
• Can be installed on energized conductors with no contact at any live point
• No spacer required between connections; exclusive turbo spacer keeps tap side open during tightening
• Watertight and corrosion-free design with sealed rubber grommet preventing water migration and contamination
• Double shear-head bolts ensure consistent, secure connections and eliminate hot spots
• Suitable for solid and stranded wires
• Easy installation without special tools or need for a third hand
• Versatile for use as a splice or a tap
