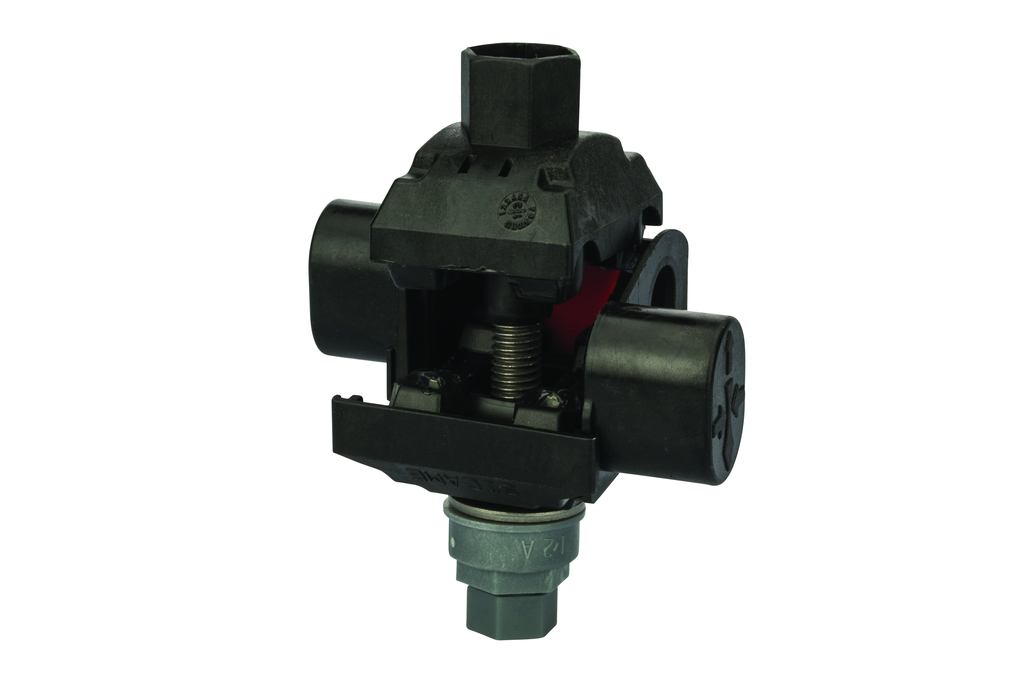

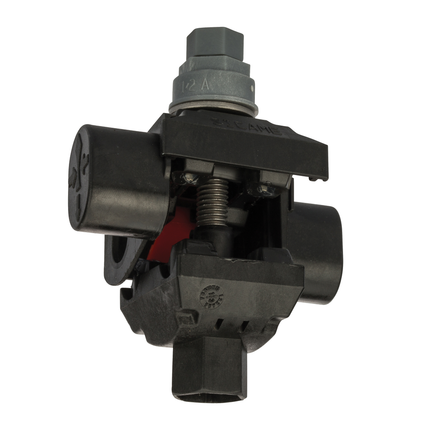

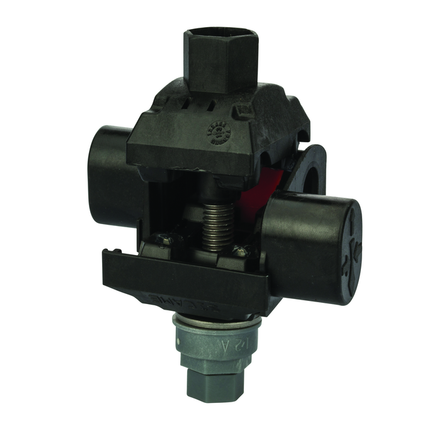

Insulation Piercing Connector 1/0-2 AWG
Insulation Piercing Connector 1/0-2 AWG
Total Price: $22.57 per each Sold in increments of 1 each
Description
Features
- Safe to use, versatile and reliable
- No need to strip wire and totally insulated
- No tape or cover needed
- No contact at any point with a live part
- Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened.
Certifications and Standards
- ANSI
- Not UL
Specifications
- Country of Origin: France
- Length: 2.200 in
- Width: 1.800 in
- Height: 3.1 in
- Wire Range - Main, Line, Primary, Run: 1/0 AWG - 8 AWG
- Wire Range - Tap, Load, Secondary: 2 AWG - 10 AWG
- Mounting Base: No
- Number of Bolts: 1
- Wire Range: 1/0-8AWG (MAIN) 2-10AWG (TAP)
- ANSI: ANSI C119.4
- Environmental Temperature: 90°C
- Field Application: Tap
- Future Plan: Rebrand as Polaris
- Max Temperature: 90 C
- Product Assortment: Insulation Piercing
- Product Series: IPCS
- VOLTAGE RATING: 600 V
- WARRANTY: 1 Year
- Copper Conductor Max AMP: 190
- Aluminum Conductor Max AMP: 150
- Conductor Type: Copper, Aluminum
More Information
Manufacturer Catalog Number
IPCS1002
Weight
0.3
Length
2.200
Width
1.800
Height
3.1
Country of Origin
France
Material
Fiber Reinforced Thermal Plastic
Color
Black
Conductor Size
1/0-8 AWG (Main)
Finish
Thermal Plastic
Product Size
L=2.20 - W=1.80 - H=3.10
Temperature Rating
90 C
Type
Insulation Piercing Connectors
Voltage
600 volts
Warranty Length
1 years
