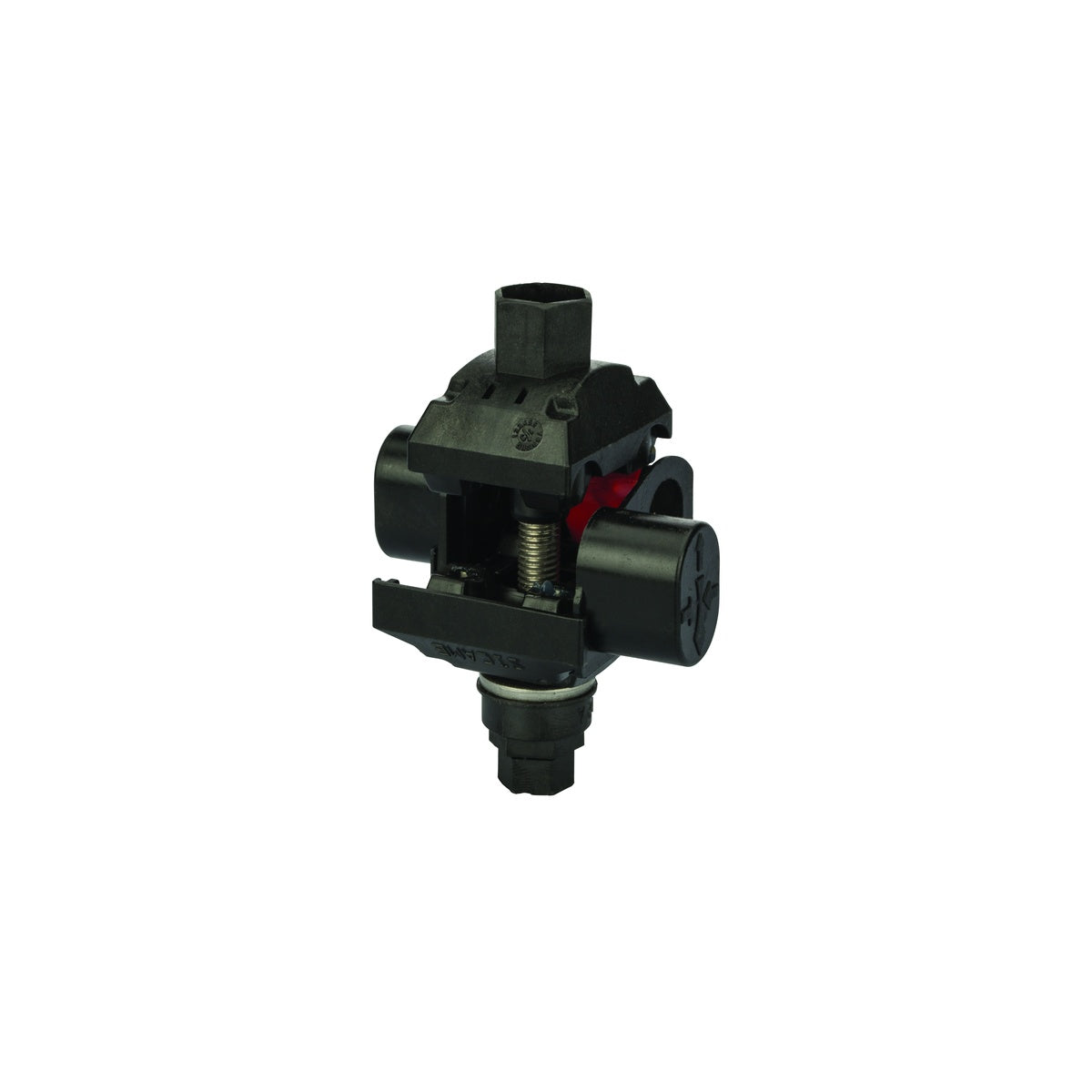

Insulation Piercing Connector 1/0-1/0 AWG – Electrical Connector

The Insulation Piercing Connector 1/0-1/0 AWG by NSI Industries is designed for safe and efficient electrical connections in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum applications. This connector enables installation without stripping wire insulation and can be used on energized conductors without any direct contact with live parts, making it suitable for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers requiring reliable, insulated connections.

Specifications

• Conductor Size: 1/0-8 AWG (Main)
• Amperage Rating: 190 (CU Amps) - 150 (AL Amps)
• Material: Fiber Reinforced Thermal Plastic
• Finish: Thermal Plastic
• Color: Black
• Dimensions (HxWxL): 3.1 in x 1.8 in x 2.2 in
• Mounting: Clamp
• Maximum Temperature: 90 degrees Celsius
• Voltage Rating: 600V
• Country of Origin: France
• Manufacturer Part #: IPCS1010

Features

• No need to strip wire insulation or apply tape; fully insulated design
• Can be installed on energized conductors without any contact with live parts
• No spacer required between connections due to exclusive “turbo spacer” design
• Watertight and corrosion-free with connection sealed by a rubber grommet
• Suitable for solid and stranded wires
• Handles wire range from #14 AWG to 750 MCM
• Double shear-head bolts ensure perfect connection and eliminate hot spots
• Can be used as a splice or tap connector
• Easy installation without special tools or additional hands
