Insulated Split Grounding Bushing, 2" Zinc with Aluminum Lug - Split Grounding Bushing

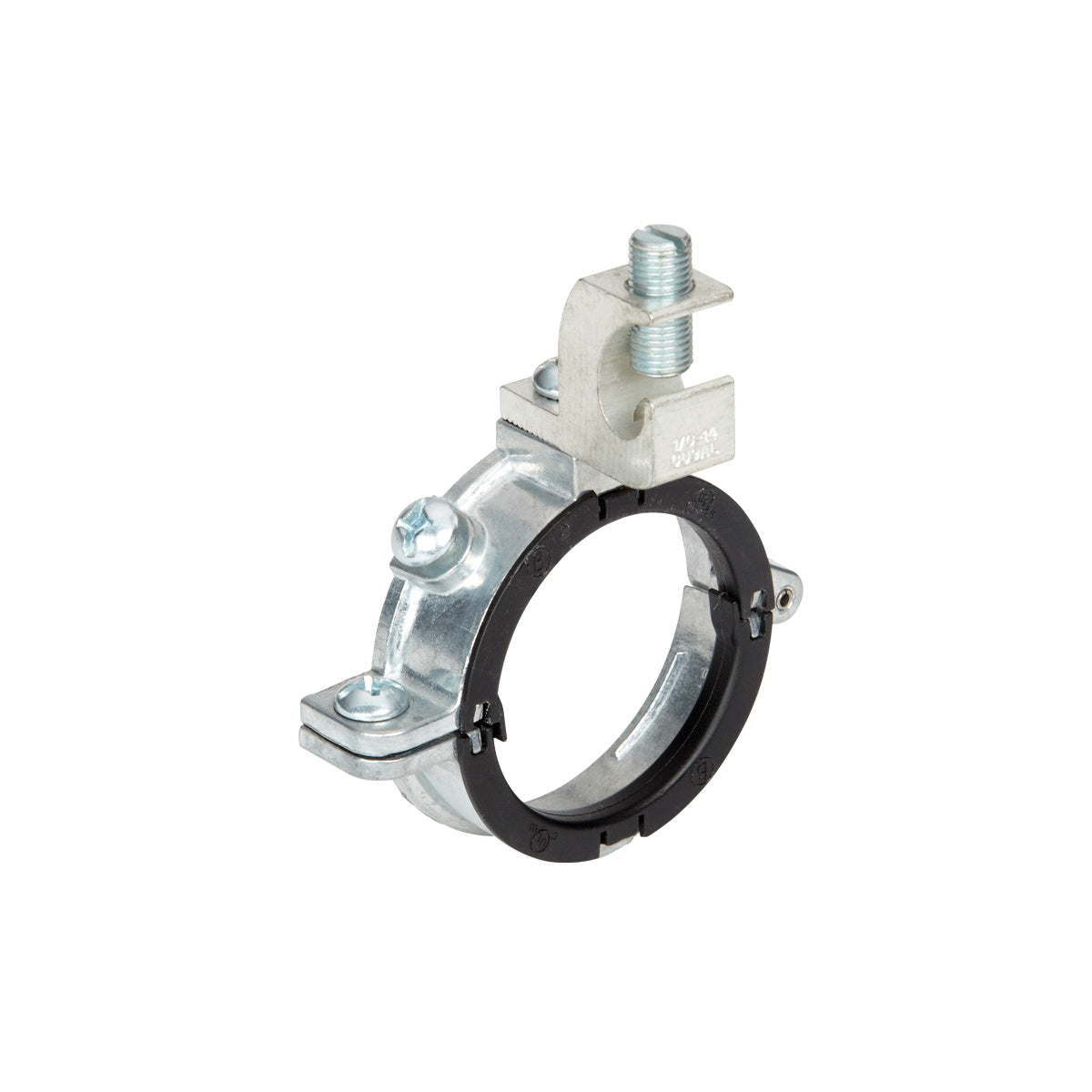

The Bridgeport Fittings Insulated Split Grounding Bushing, model SGB-386CL, is designed for use with 2-inch rigid or IMC conduit and EMT fittings. It provides a reliable grounding solution for electrical distributors and switchgear suppliers, especially in applications where wires have already been pulled through conduit. This bushing features a patented Mighty-Rite® split design that allows installation before or after wire pull-through, reducing downtime during upgrades to power and data systems. It incorporates a zinc die cast body with a ball-burnished finish, aluminum alloy 6061-T6 grounding lug, and a UV stabilized nylon insulator rated for 150°C, making it suitable for outdoor and solar installations.

Specifications

• Material: Zinc Alloy
• Finish: Ball burnish
• Color: Grey with Black Insulator
• Dimensions: 2.7 in length x 2.68 in width x 1.9 in depth
• Weight: 0.2933 lbs
• Temperature Rating: 150°C
• Wire Capacity: 14 to 1/0 AWG
• Manufacturer Part #: SGB-386CL
• Country of Origin: China
• UL/cUL Listed, File No. E20412

Features

• Patented Mighty-Rite® split design for easy installation before or after wire pull-through
• UV stabilized nylon insulator for outdoor and solar applications
• Stainless steel hardware for corrosion resistance
• Aluminum alloy 6061-T6 grounding lug for secure conductor connection
• Ball-burnished mirror-smooth zinc die cast body for durability
• Compliant with OSHA-recognized and NRTL-listed electrical standards
• Adjustable lay-in lug accepts and positions conductors for simple access
• Reduces facility downtime during power and data system upgrades
