Insulated Split Grounding Bushing, 2" Steel with Aluminum Lug - Electrical Conduit Fitting

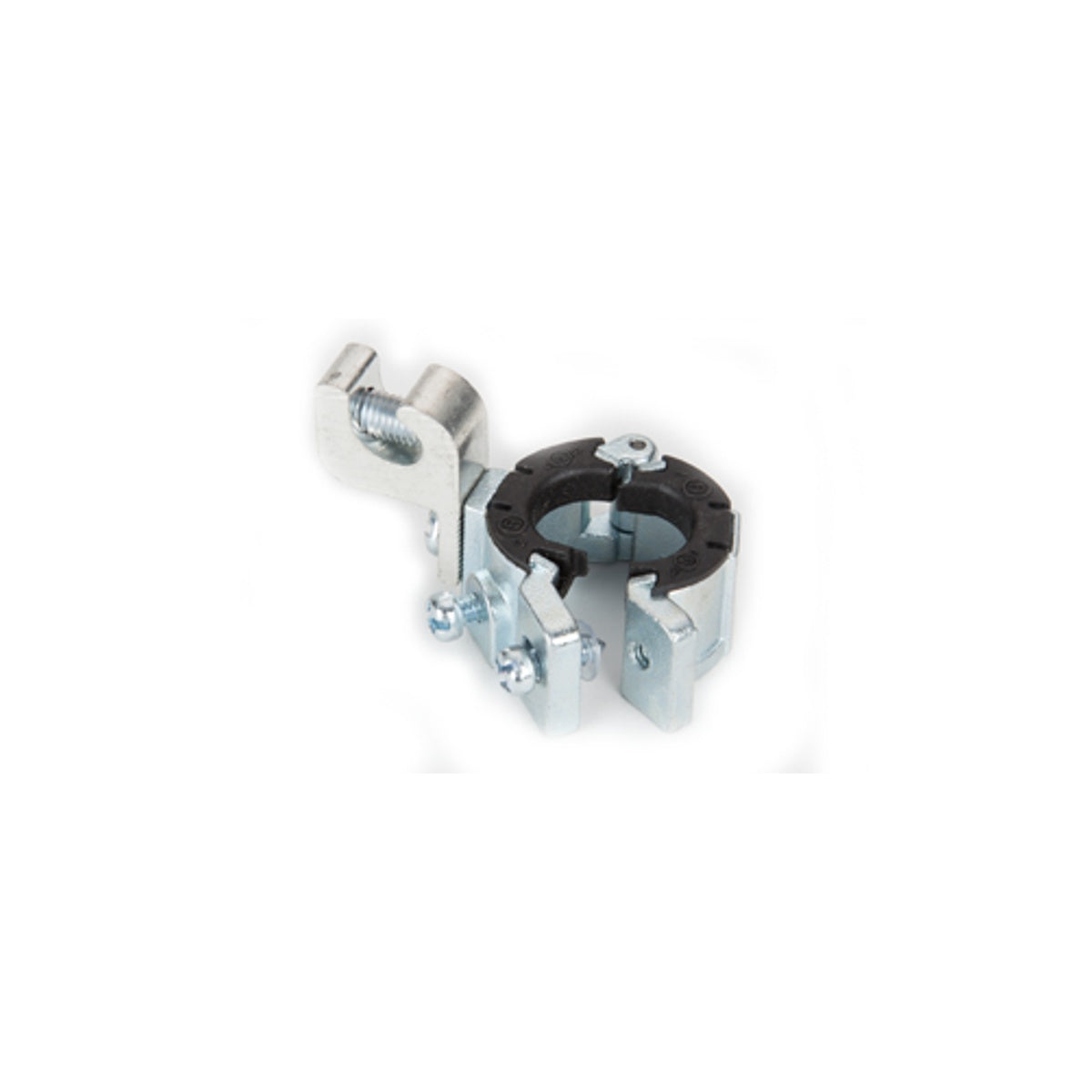

The Bridgeport SGBS-38614 Insulated Split Grounding Bushing is designed for use with 2-inch rigid, IMC, or EMT conduit fittings. It allows installation before or after wire pulling, making it suitable for upgrading existing power and data systems with minimal downtime. This product is ideal for electrical distributors and switchgear suppliers seeking reliable grounding solutions compliant with OSHA-recognized and NRTL-listed electrical standards.

Specifications

• Material: Steel
• Finish: Zinc Plated
• Color: Grey with Black Insulator
• Dimensions: Length 2.7 in, Width 2.29 in, Depth 1.9 in
• Grounding Lug: Aluminum Alloy 6061-T6
• Temperature Rating: 150¬∞C
• Wire Capacity: 14 to 4 AWG
• UL/cUL Listed: File No. E20412
• Country of Origin: China
• Weight: 0.3220 lbs

Features

• Innovative split design allows installation after conductors are pulled
• Captive nylon insulator rated for 150¬∞C
• Adjustable hinged design for easier alignment in tight spaces
• Aluminum grounding lug accepts and positions conductors for simple access
• Zinc plated steel construction for corrosion resistance
• Patented design with US Patents 8,419,449; 7,182,611; 6,840,782
• Compliant with NEC Articles 250.64, 250.92, 344.46, and 300.4(G)
