Insulated Split Grounding Bushing, 1-1/2" Zinc with Aluminum Lug – Electrical Grounding Solutions

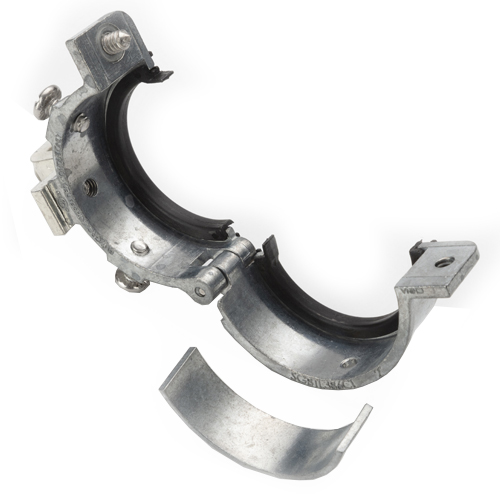

The Bridgeport SGBTL384CL Insulated Split Grounding Bushing is designed for secure grounding in electrical installations involving 1-1/2-inch EMT or threadless GRC conduits. It supports wire sizes from 14 to 1/0 AWG and features a split design that facilitates installation before or after conductor pulling, minimizing facility downtime. This grounding bushing is ideal for electrical distributors and switchgear suppliers requiring reliable bonding solutions for power and data systems.

Specifications

• Material: Zinc Die Cast
• Finish: Ball burnish
• Color: Grey with Black Insulator
• Length: 3.675 in
• Width: 3.07 in
• Depth: 1.55 in
• Temperature Rating: 150°C
• Application: Grounding lug; aluminum alloy 60610-T6
• Compliance: cULus listed to UL514B and UL467
• Product Weight: 0.4000 lbs
• Country of Origin: China

Features

• Split-design Mighty-Rite® zinc die cast bushing for easy installation
• Stainless steel hardware and UV-stabilized nylon insulator for outdoor use
• Ball-burnished mirror-smooth finish for enhanced bonding
• Suitable for bonding stub-ups and data applications
• Patented design to save time and reduce facility downtime during upgrades
