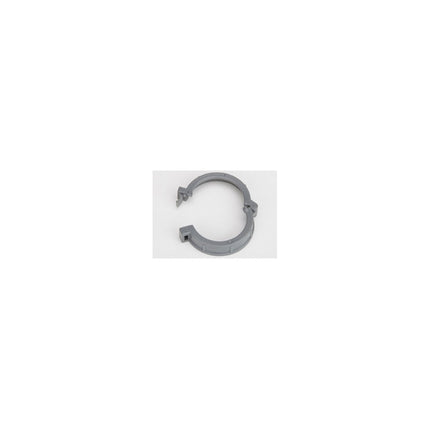

Insulated Split Bushing, 2" Plastic for Conductor Protection

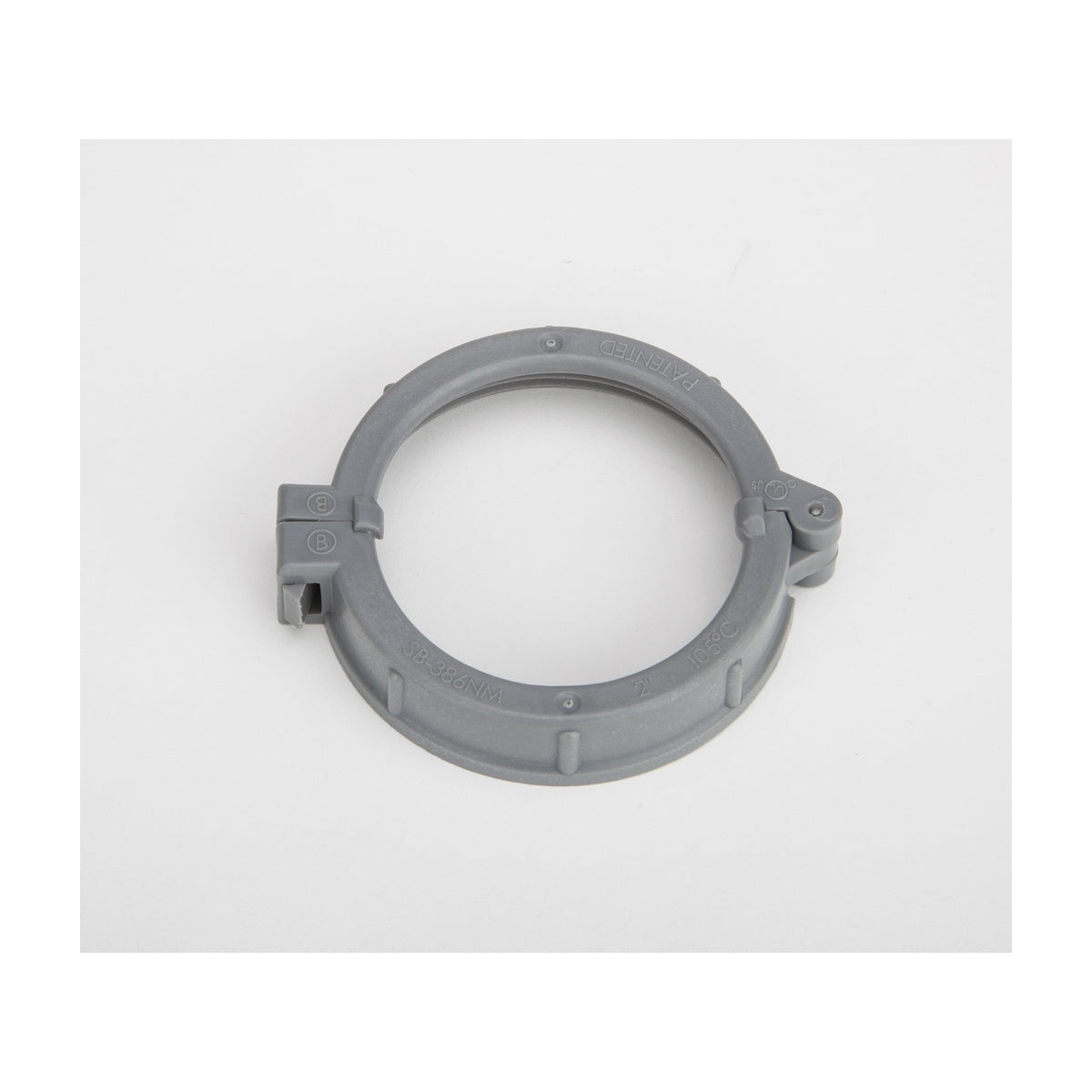

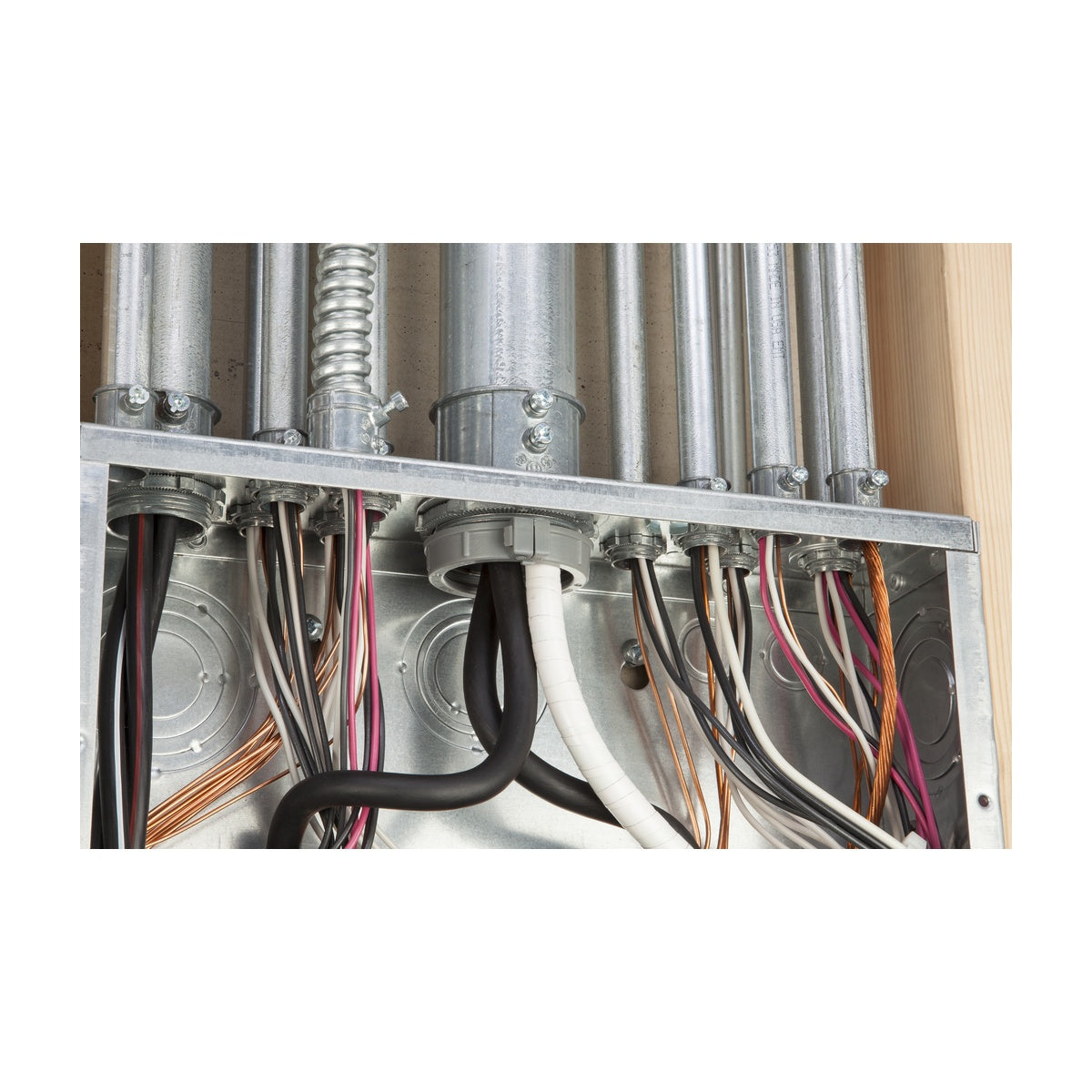

The Bridgeport SB-386NM 2-Inch Mighty-Rite® Insulated Split Bushing is designed to protect conductors passing through rigid and IMC conduits or EMT connectors. It is used in applications where wires have already been pulled through conduits and an insulated bushing is required to prevent damage to wire insulation. This product is suitable for electrical distributors and switchgear suppliers seeking reliable conduit fittings and wire protection solutions. The patented split design allows for easy installation after conductor pulling, reducing facility downtime during upgrades. It is cULus listed and rated for 105°C operation, meeting recognized electrical standards.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: SB-386NM
• Material: Nylon Plastic
• Color: Gray
• Trade Size: 2 inches
• Dimensions A (Diameter): 1.53 in
• Dimensions B (Depth): 0.56 in
• Dimensions C (Width): 1.99 in
• Dimensions D (Length): 2.64 in
• Product Weight: 0.0318 lbs
• Order Minimum: 1 unit
• Country of Origin: China
• UL File Number: E9391
• Federal Specification Number: A-A-50553
• UL Standard: UL-514B
• NEMA Standard: FB-1
• Patent Numbers: 9,012,791; 9,000,310; D721,652
• cULus Listed

Features

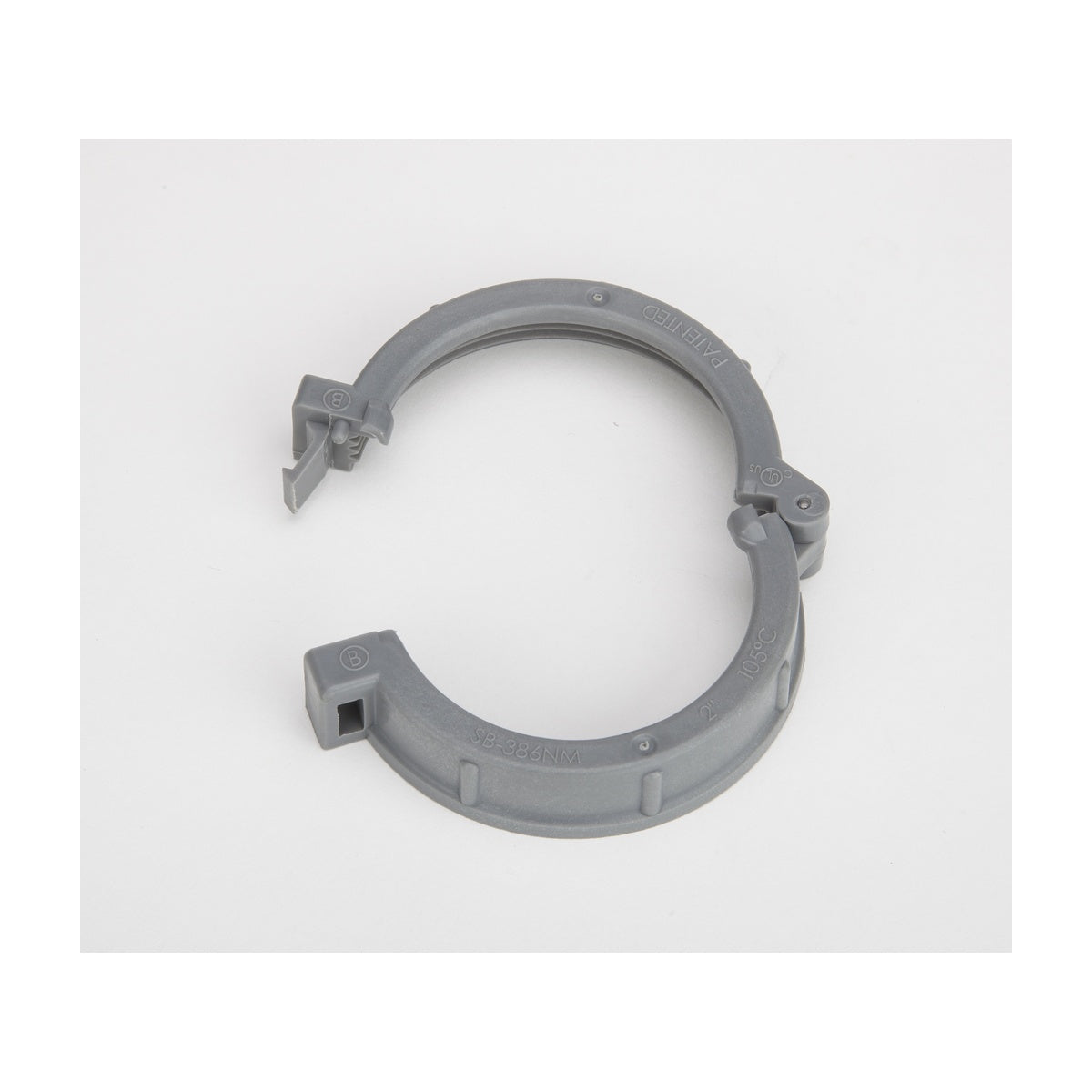

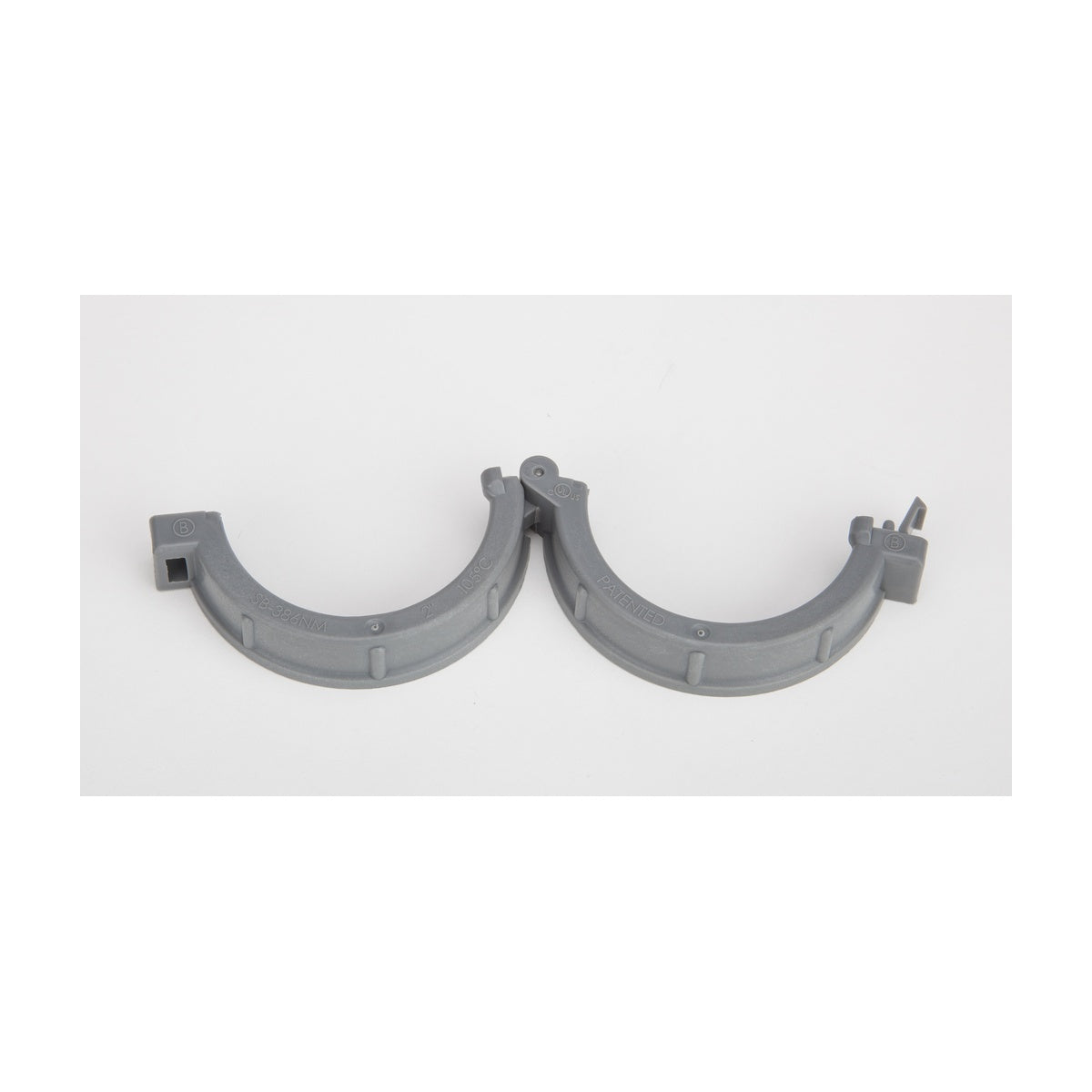

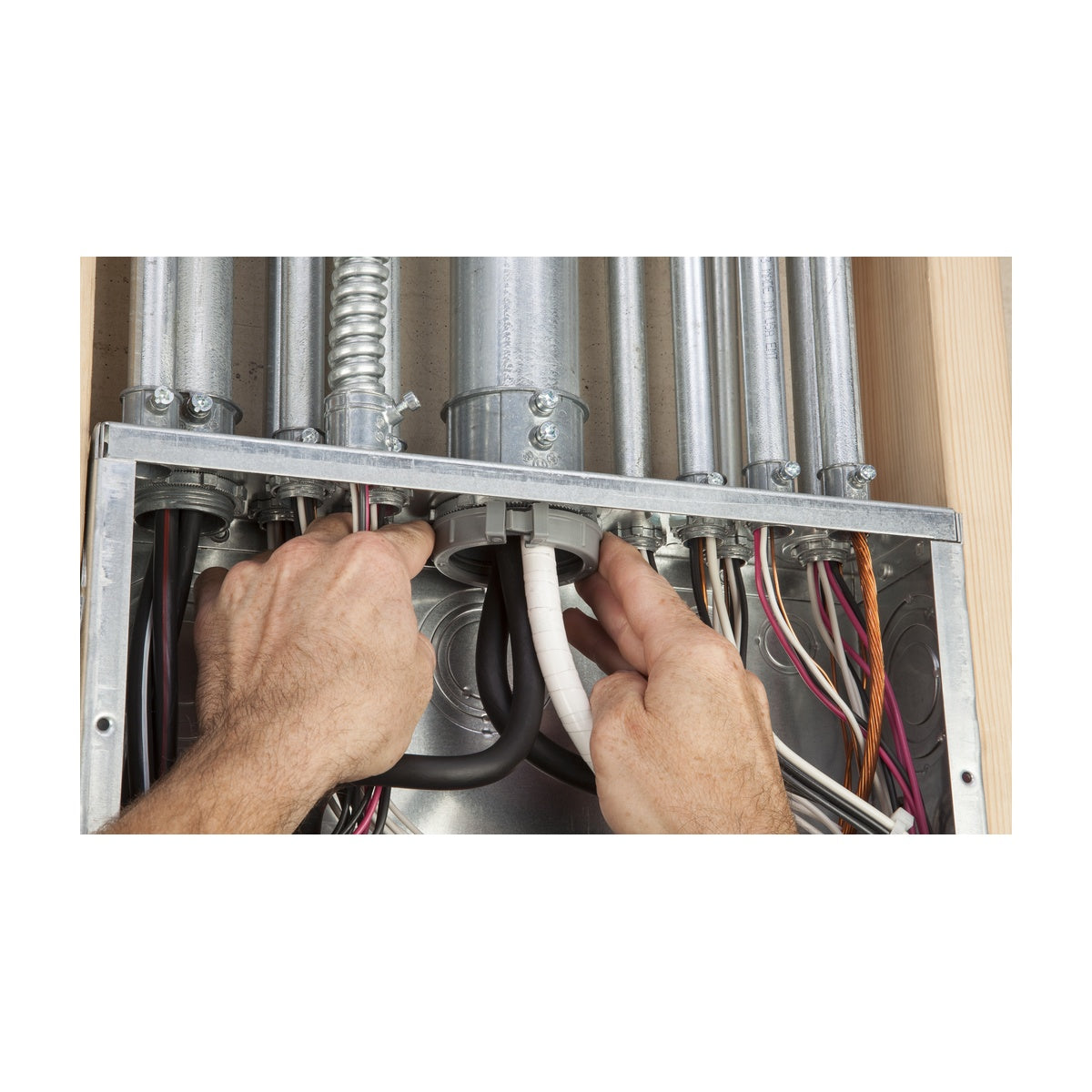

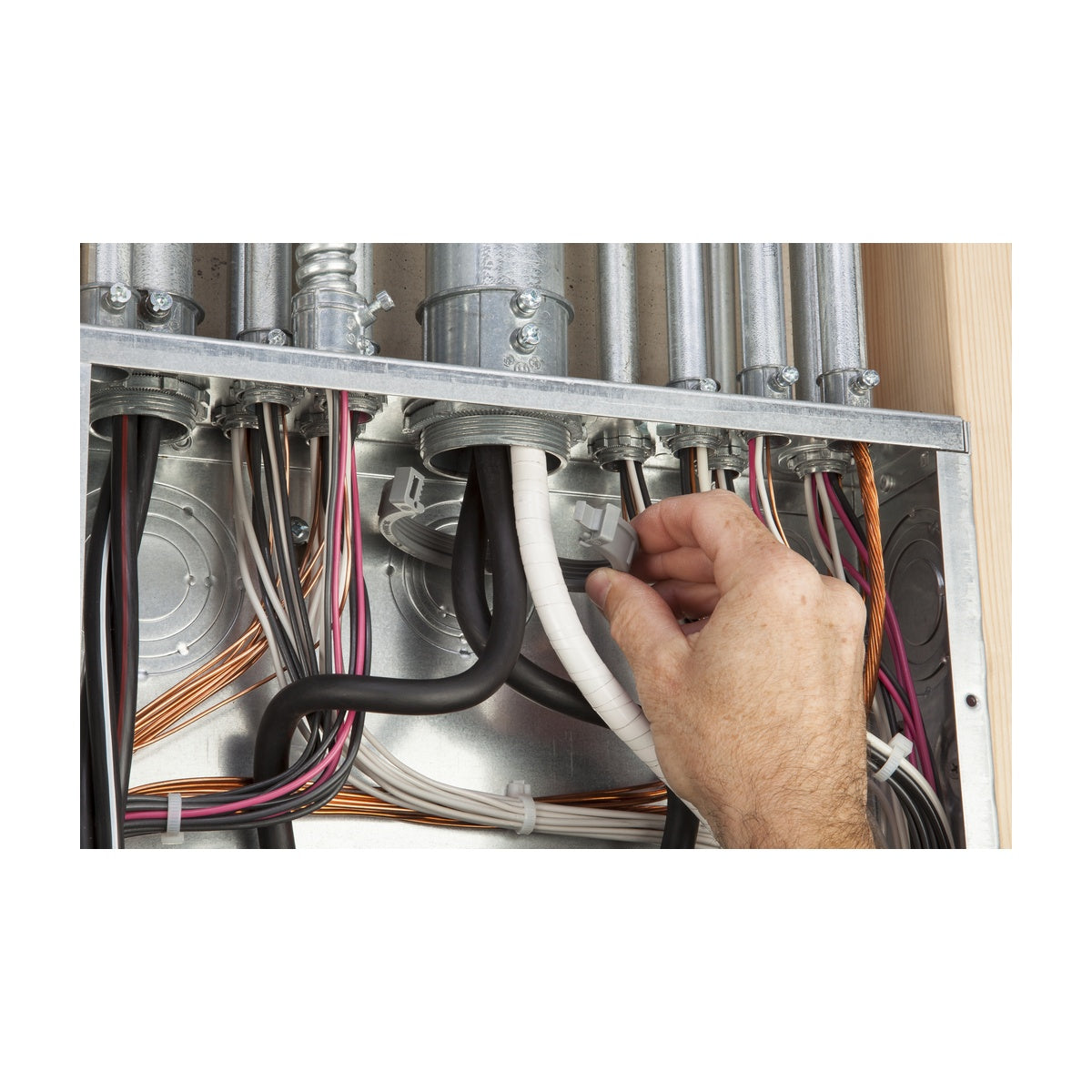

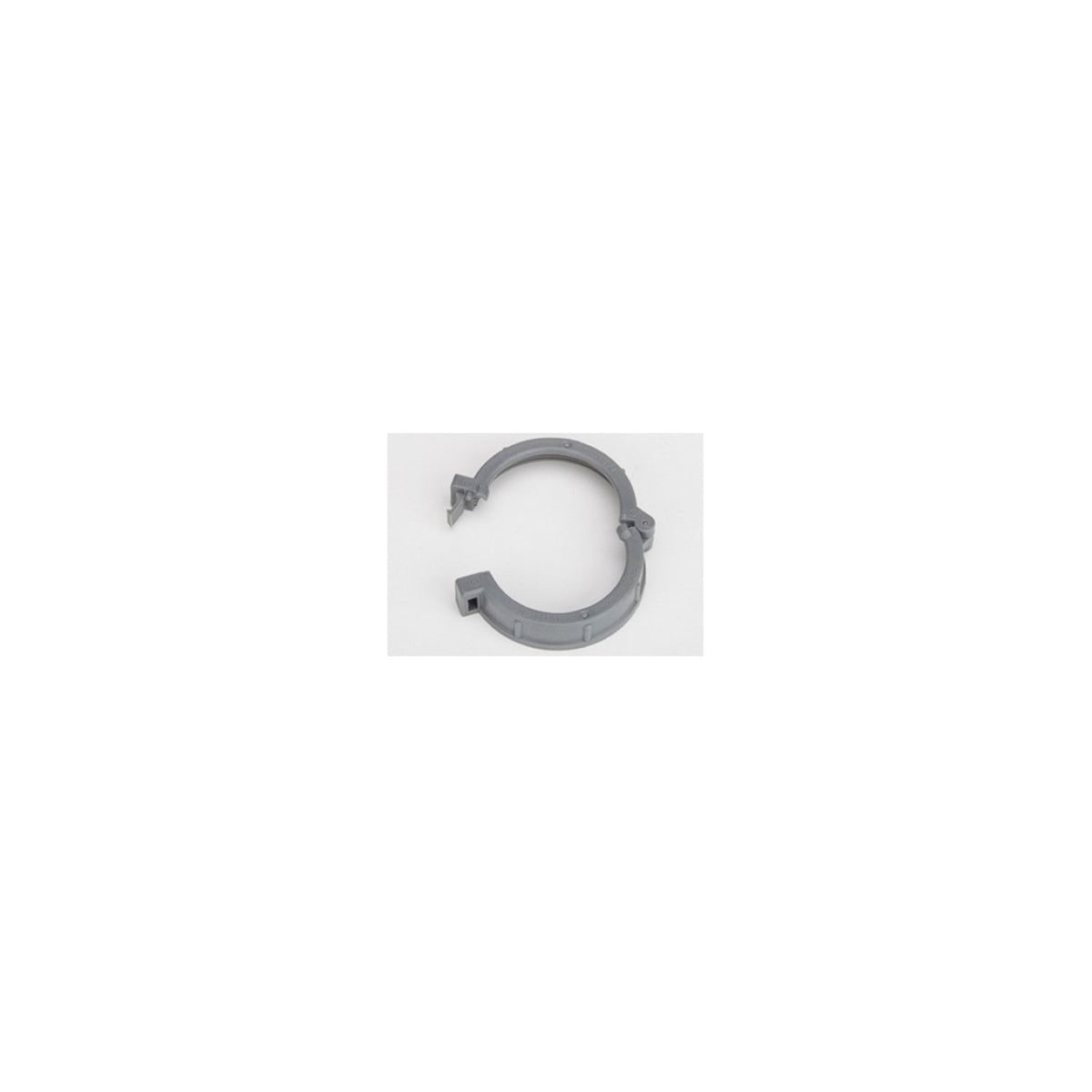

• Patented split design enables installation after conductors are pulled through conduits
• Insulated bushing protects wire insulation from abrasion and wear
• Heat rated to 105°C for high-temperature applications
• Compatible with rigid, IMC, and EMT conduit fittings
• Gray nylon plastic construction for durability and wear resistance
• Facilitates quicker upgrades and maintenance, reducing downtime
