Morris Products
Insulated Service Entrance Splices 2-25/32" URO 24 #1 & #2 Str to #4 Str #2 Sol
SKU: #276873
Part: #90678
UPC: 601986906784
Morris Products
Insulated Service Entrance Splices 2-25/32" URO 24 #1 & #2 Str to #4 Str #2 Sol
SKU: #276873
Part: #90678
UPC: 601986906784
Description

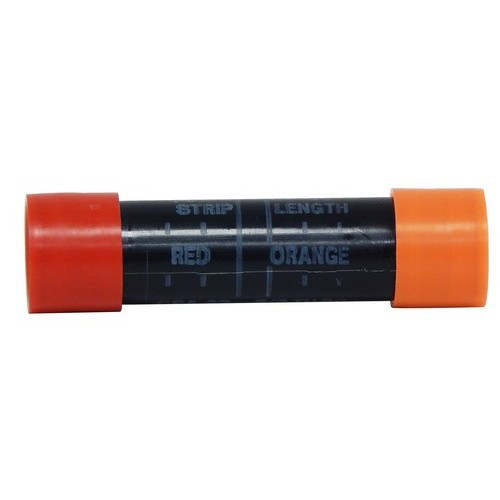

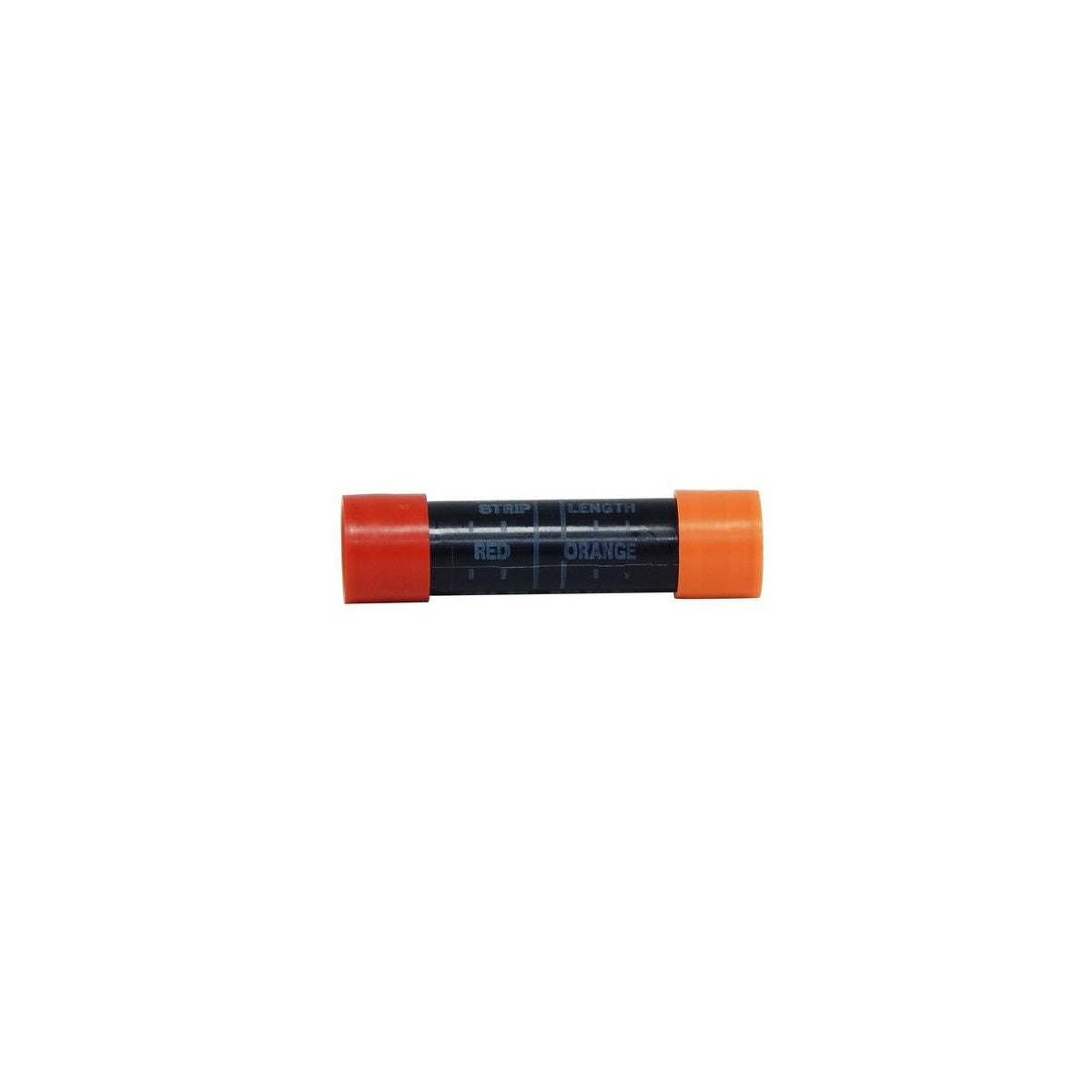

Insulated Service Entrance Splices 2-25/32" URO 24 #1 & #2 Str to #4 Str #2 Sol – Electrical Splice Connectors
This insulated service entrance splice is designed for electrical service installations, providing reliable connections between various conductor sizes. Manufactured from high conductivity aluminum alloy with a heat stabilized nylon insulating sleeve, it is suitable for use by electrical distributors and switchgear suppliers in wire and cable applications requiring durable and conductive splice solutions.
Specifications
- Material: 6061-T6 Aluminum
- Length: 2-25/32"
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Wire Range: #6 AWG to 1/0 AWG
- Product Weight: 0.0750 lbs
- Certifications: ANSI C119.4 Class A-3, UL, cUL, RoHS
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Color coded nylon insulation sleeves for easy identification
- Oxide inhibitor coating to prevent corrosion
- CU/Al rated for compatibility with copper and aluminum conductors
- Chamfered barrel with center stop for secure wire insertion
