Morris Products

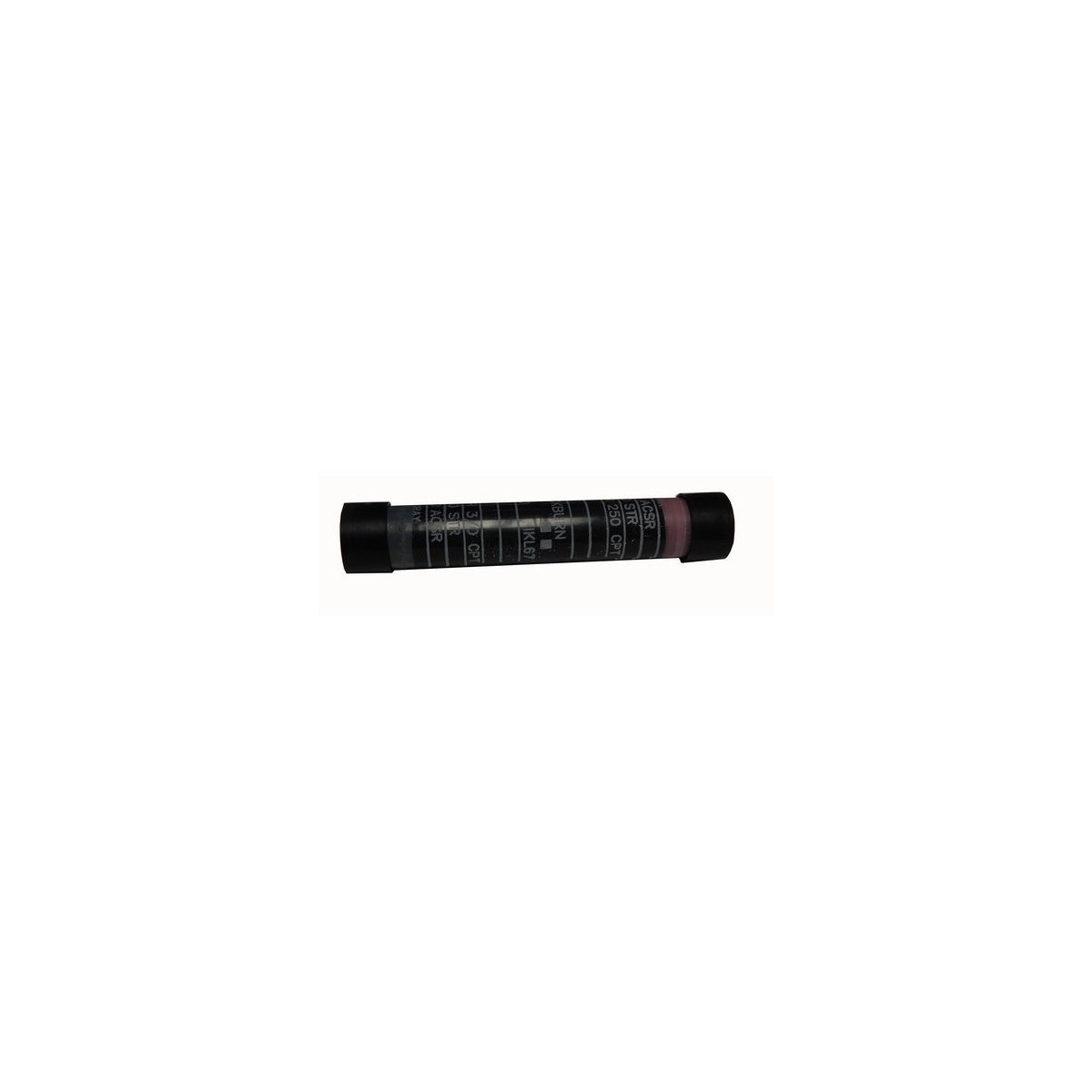

Insulated Service Entrance Compression Splices Model: X1N4040 5-1/2" 840 Die 4/0-250MCM
SKU: #276844
Part: #90669
UPC: 601986906692
Morris Products
Insulated Service Entrance Compression Splices Model: X1N4040 5-1/2" 840 Die 4/0-250MCM
SKU: #276844
Part: #90669
UPC: 601986906692
Description
Insulated Service Entrance Compression Splices Model: X1N4040 5-1/2" 840 Die 4/0-250MCM - Electrical Wire and Cable Connector
This insulated service entrance compression splice is designed for electrical service installations, providing reliable connections for wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity aluminum splices that meet industry standards.
Specifications
- Material: 6061-T6 Aluminum
- Model: X1N4040
- Length: 5-1/2 inches
- Die: 840 Die
- Wire Size Range: 4/0 to 250 MCM
- Product Weight: 0.2630 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 90669
Features
- High conductivity aluminum construction for efficient electrical performance
- Insulated with tough stabilized nylon sleeves providing reliable 600-volt insulation
- Coated with oxide inhibitor compound to prevent corrosion
- Solid center barriers and large chamfers facilitate cable insertion
- Color-coded and marked with catalog numbers, strip lengths, installing die references, and compression locations
- Meets or exceeds Class A-3 requirements of ANSI C119.4 when properly installed on aluminum to aluminum or aluminum to copper conductors
