Morris Products
Insulated Service Entrance Compression Splices 2-25/32" UYR 02 1/0 Str to #1 & #2 Str
SKU: #276852
Part: #90672
UPC: 601986906722
Morris Products
Insulated Service Entrance Compression Splices 2-25/32" UYR 02 1/0 Str to #1 & #2 Str
SKU: #276852
Part: #90672
UPC: 601986906722
Description

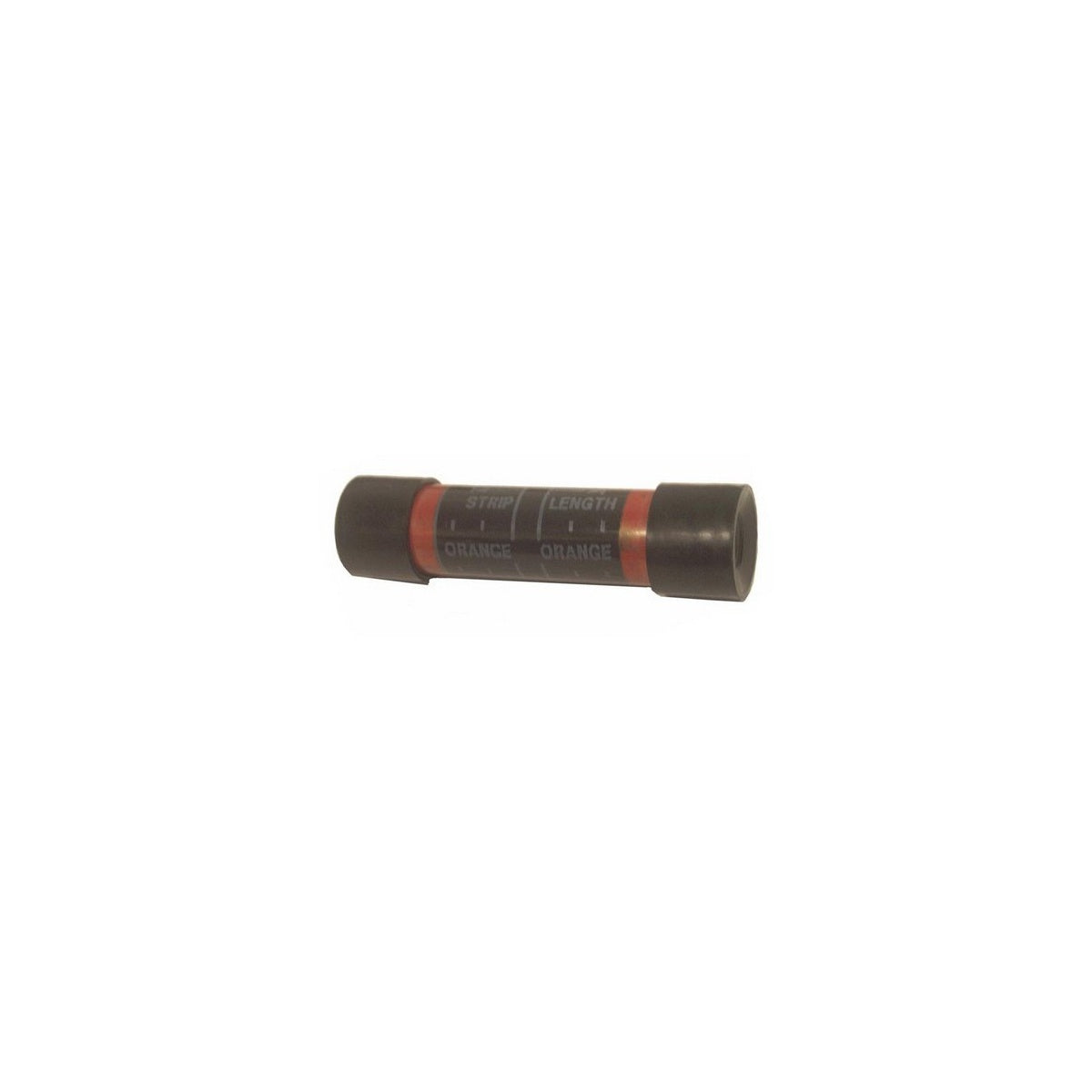

Insulated Service Entrance Compression Splices 2-25/32" UYR 02 1/0 Str to #1 & #2 Str - Electrical Wire Splice Connectors
The Insulated Service Entrance Compression Splices by Morris Products are designed for electrical service installations, providing secure and reliable connections for wire and cable in service entrance applications. These splices are suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable splice solutions for wire sizes ranging from #6 AWG to 1/0. The product features a heat stabilized nylon insulating sleeve and is rated for 600 volts, making it appropriate for various lighting solutions and electrical distribution systems.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Length: 2-25/32"
- Wire Range: #6 AWG to 1/0 Stranded
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Temperature Rating: Not Specified
- Flammability Rating: N/A
- Certifications: ANSI C119.4 Class A-3, UL, cUL, RoHS
- Product Weight: 0.0560 lbs
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Color coded nylon insulation sleeves for easy identification
- Oxide inhibitor coating to enhance conductivity and prevent corrosion
- CU/AL rated for use with copper and aluminum conductors
- Chamfered barrel with center stop for precise conductor insertion
