Morris Products

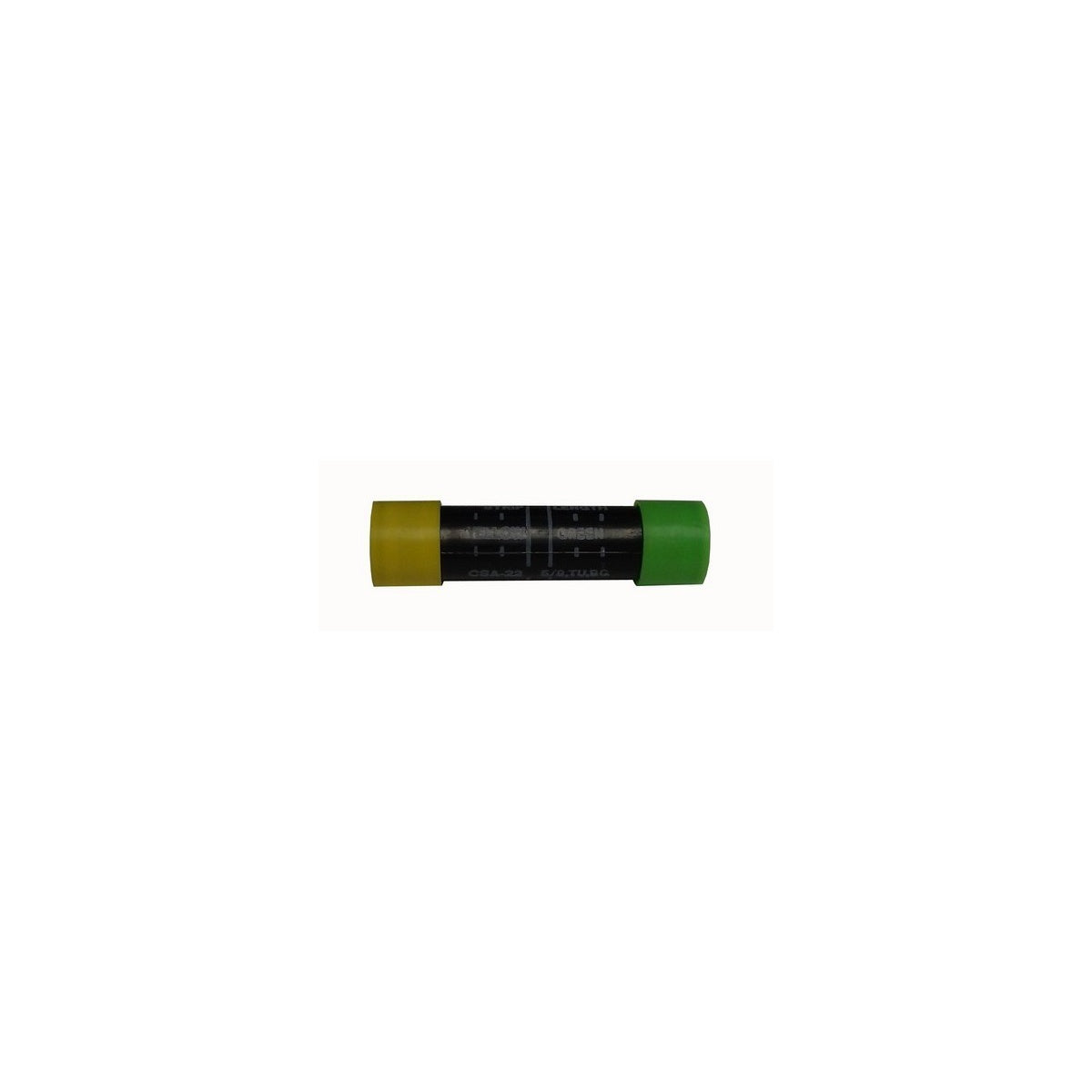

Insulated Service Entrance Compression Splices 2-25/32" UYG 08 1/0 Str to #8 & Str #6 Sol
SKU: #276849
Part: #90671
UPC: 601986906715
Morris Products
Insulated Service Entrance Compression Splices 2-25/32" UYG 08 1/0 Str to #8 & Str #6 Sol
SKU: #276849
Part: #90671
UPC: 601986906715
Description
Insulated Service Entrance Compression Splices 2-25/32" UYG 08 1/0 Str to #8 & Str #6 Sol – Electrical Wire and Cable Connector
This insulated service entrance compression splice is designed for electrical service installations, facilitating secure and reliable connections between wire sizes 1/0 stranded and #8 or #6 solid conductors. Manufactured from high conductivity 6061-T6 aluminum, it is suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable splicing solutions.
Specifications
- Material: 6061-T6 Aluminum
- Length: 2-25/32"
- Voltage Rating: 600 V
- Wire Range: #6 AWG to 1/0
- Temperature Rating: (not specified)
- Amp Rating: To Conductor
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Heat stabilized nylon insulating sleeve
- Color coded nylon insulation sleeves for identification
- Oxide inhibitor coating to enhance conductivity and prevent corrosion
- CU/AL rated for copper and aluminum conductor compatibility
- Chamfered barrel with center stop for precise conductor positioning
