Morris Products

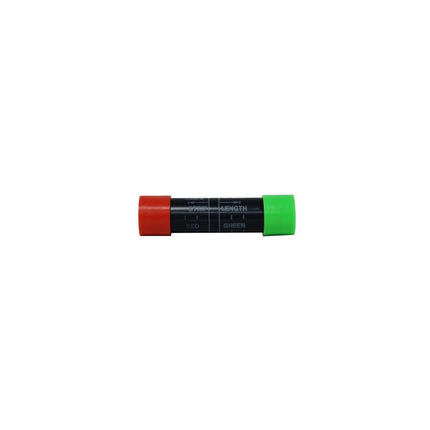

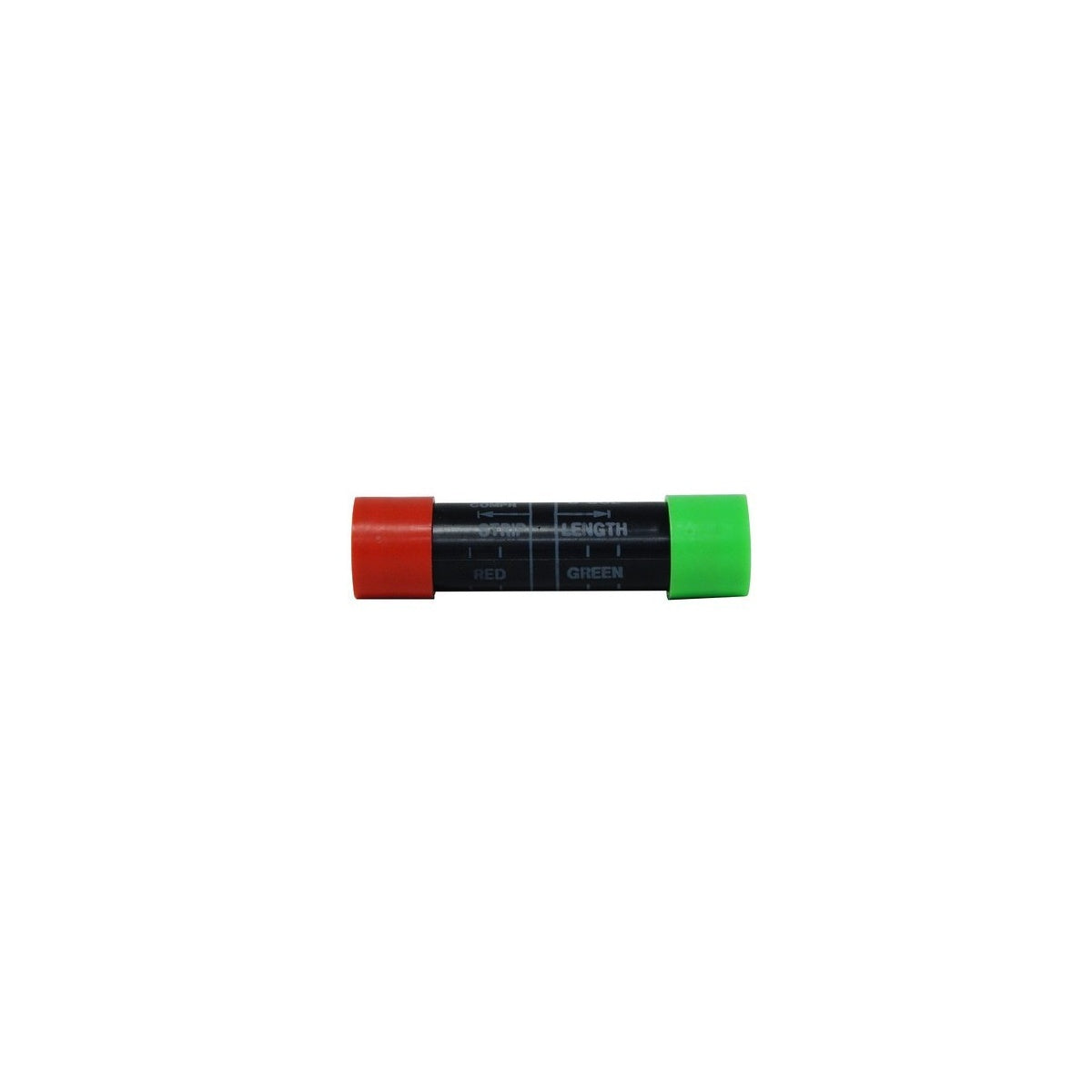

Insulated Service Entrance Compression Splices 2-25/32" URG 28 #1 & #2 Str to #8 Str #6 Sol
SKU: #276870
Part: #90677
UPC: 601986906777
Morris Products
Insulated Service Entrance Compression Splices 2-25/32" URG 28 #1 & #2 Str to #8 Str #6 Sol
SKU: #276870
Part: #90677
UPC: 601986906777
Description
Insulated Service Entrance Compression Splices 2-25/32" URG 28 #1 & #2 Str to #8 Str #6 Sol - Electrical Wire and Cable Connector
This insulated service entrance compression splice is designed for electrical service installations, providing secure and reliable connections for wire and cable applications. Manufactured from high conductivity aluminum alloy, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient lighting and electrical solutions.
Specifications
- Material: 6061-T6 Aluminum
- Length: 2-25/32"
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Wire Range: #6 AWG to 1/0
- Insulation Sleeve: Heat Stabilized Nylon
- Certifications: ANSI C119.4 Class A-3, UL, cUL, RoHS
- Product Weight: 0.0750 lbs
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Color coded nylon insulation sleeves for easy identification
- Oxide inhibitor coating to prevent corrosion
- CU/AL rated for copper and aluminum conductor compatibility
- Chamfered barrel with center stop for precise compression
