Morris Products

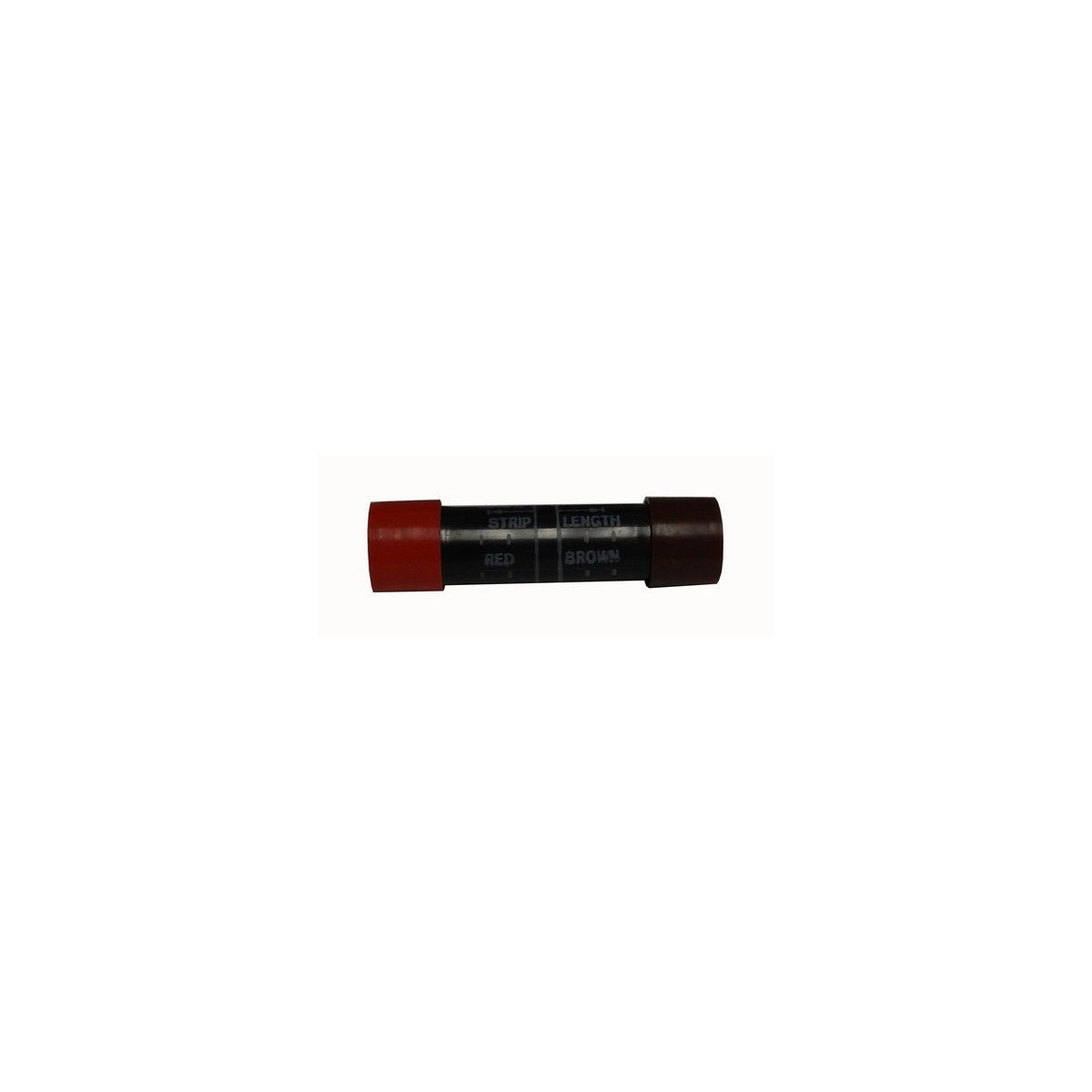

Insulated Service Entrance Compression Splices 2-25/32" URBR 21 #1 & #2 Str to #10 Str #8 Sol
SKU: #276869
Part: #90676
UPC: 601986906760
Morris Products
Insulated Service Entrance Compression Splices 2-25/32" URBR 21 #1 & #2 Str to #10 Str #8 Sol
SKU: #276869
Part: #90676
UPC: 601986906760
Description
Insulated Service Entrance Compression Splices 2-25/32" URBR 21 #1 & #2 Str to #10 Str #8 Sol - Service Entrance Splices
This insulated service entrance compression splice is designed for electrical service installations, providing reliable connections for wire and cable in service entrance applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable splicing solutions.
Specifications
- Material: 6061-T6 Aluminum
- Length: 2-25/32"
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Wire Range: #6 AWG to 1/0
- Temperature Rating: Not specified
- Flammability Rating: N/A
- UPC: 601986906760
- Product Weight: 0.0750 lbs
- Manufacturer Part #: 90676
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Heat stabilized nylon insulating sleeves for electrical insulation
- Color coded nylon insulation sleeves for easy identification
- Oxide inhibitor coating to prevent corrosion
- CU/Al rated for copper and aluminum conductor compatibility
- Chamfered barrel with center stop for secure and consistent compression
