Description

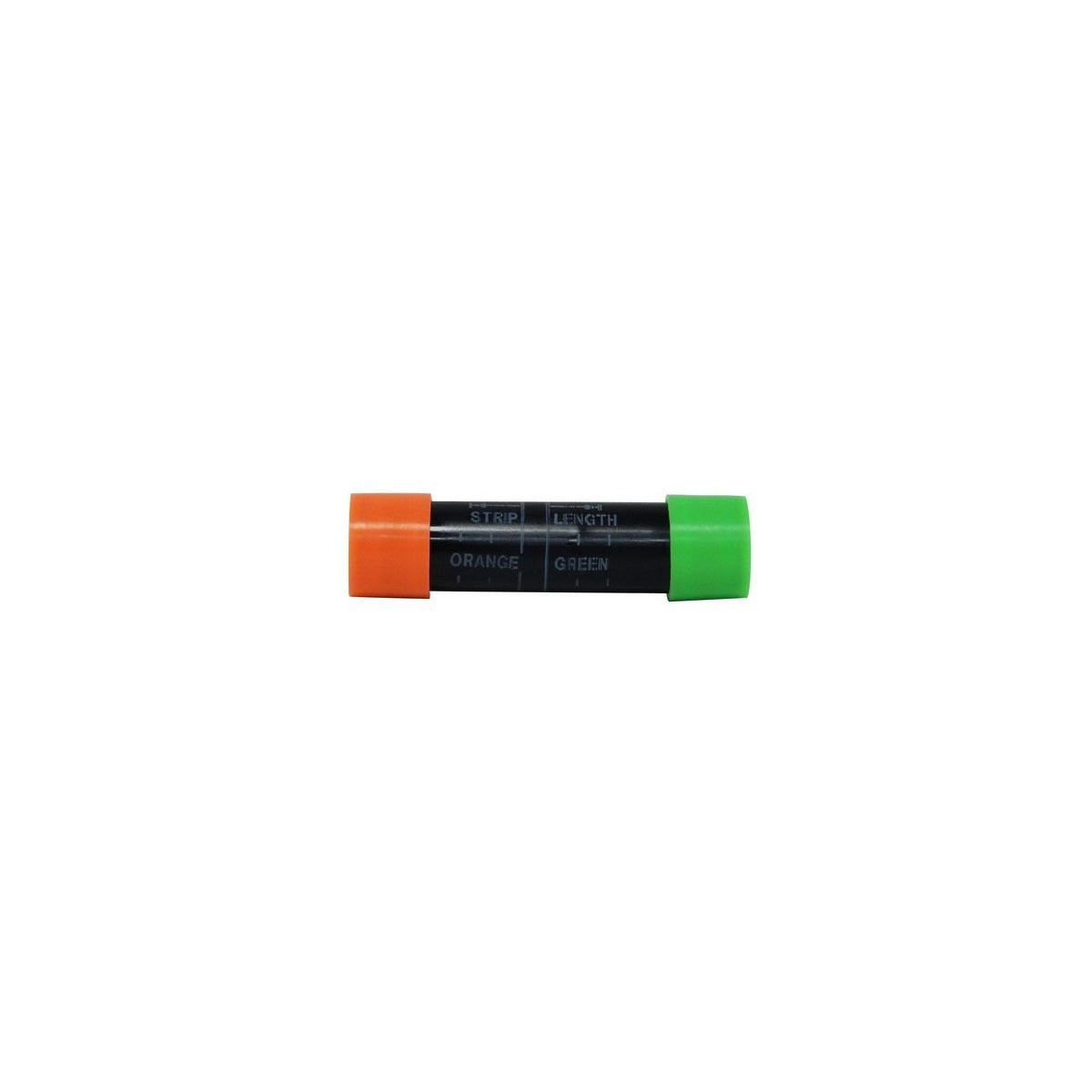

Insulated Service Entrance Compression Splices 2-25/32" UOG 48 #4 Str #2 Sol to #8 Str #6 Sol - Electrical Wire and Cable Connector
This insulated service entrance compression splice is designed for electrical service installations, providing a reliable connection for wire and cable in residential and commercial applications. Manufactured by Morris Products, it serves as an essential component for electrical distributors and switchgear suppliers requiring durable and high conductivity splicing solutions.
Specifications
- Material: 6061-T6 Aluminum
- Length: 2-25/32"
- Wire Range: #4 Stranded to #2 Solid and #8 Stranded to #6 Solid
- Voltage Rating: 600V
- Amp Rating: To Conductor
- Temperature Rating: Not specified
Features
- High conductivity aluminum alloy for efficient electrical performance
- Insulated with color-coded nylon sleeves for easy identification
- Oxide inhibitor coating to prevent corrosion
- Chamfered barrel with center stop for secure and consistent compression
- CU/AL rated for compatibility with copper and aluminum conductors
