Morris Products
Insulated Service Entrance Compression Splices 2-25/32" UOB 46 #4 Str #2 Sol to #6 Str #4 Sol
SKU: #276895
Part: #90690
UPC: 601986906906
Morris Products
Insulated Service Entrance Compression Splices 2-25/32" UOB 46 #4 Str #2 Sol to #6 Str #4 Sol
SKU: #276895
Part: #90690
UPC: 601986906906
Description

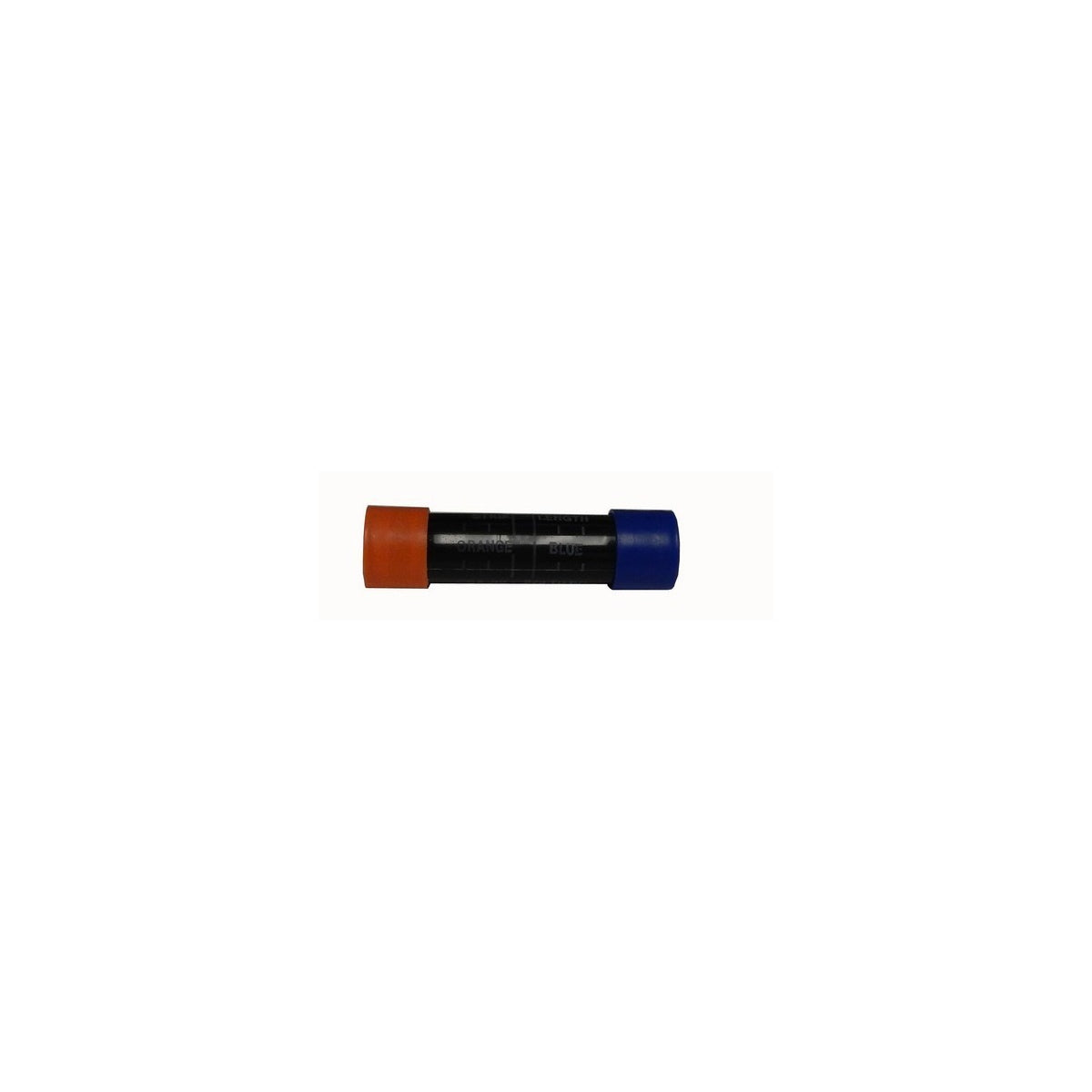

Insulated Service Entrance Compression Splices 2-25/32" UOB 46 #4 Str #2 Sol to #6 Str #4 Sol - Electrical Wire and Cable Connector
This insulated service entrance compression splice is designed for electrical service installations, providing a reliable connection for wire and cable in residential, commercial, and industrial electrical systems. It is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable splicing solutions.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Length: 2-25/32"
- Wire Range: #6 AWG to 1/0 AWG
- Voltage Rating: 600V
- Temperature Rating: Not specified
- Amp Rating: To Conductor
- Insulation: Heat Stabilized Nylon Insulating Sleeve
- Certifications: ANSI C119.4 Class A-3, UL, cUL, RoHS
- UPC: 601986906906
- Manufacturer Part #: 90690
- Product Weight: 0.0660 lbs
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Color coded nylon insulation sleeves for easy identification
- Oxide inhibitor coating to prevent corrosion
- CU/Al rated for compatibility with copper and aluminum conductors
- Chamfered barrel design with center stop for secure compression
