Features

• For Standard Conductors
• High Conductivity Insulated Service Entrance Splice meets or exceed Class A-3 requirements of ANSI C119.4, when properly installed on Aluminum to Aluminum or Aluminum to Copper Conductors
• High Conductivity Aluminum Service Entrance Splices have Solid Center Barriers and Large Chamfers to ease cable insertion
• High Conductivity Splice is coated with Oxide Inhibiting compound
• Tough Stabilized Nylon Sleeve resists installation tool pressure, providing reliable 600 Volt insulation
• Color coded and marked with catalog numbers, strip lengths, installing die references and compression locations
• RUS Approved
• ANSI C119.4 Compliant

Specifications

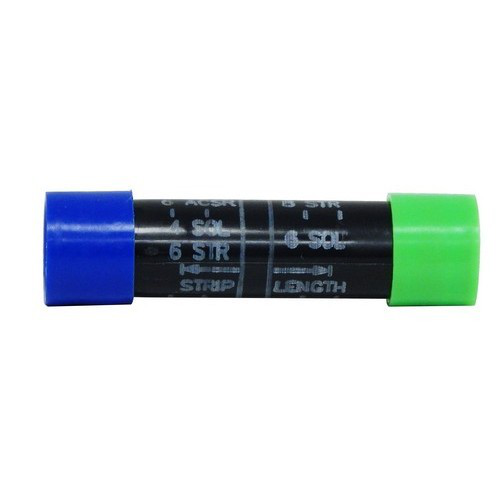

• Model: UBG 68
• Color Cond A: Blue
• ACSR Cond A: #6
• Strand Cond A: #6
• Solid Cond A: #4
• Color Cond B: Green
• Strand Cond B: #8
• Solid Cond B: #6
