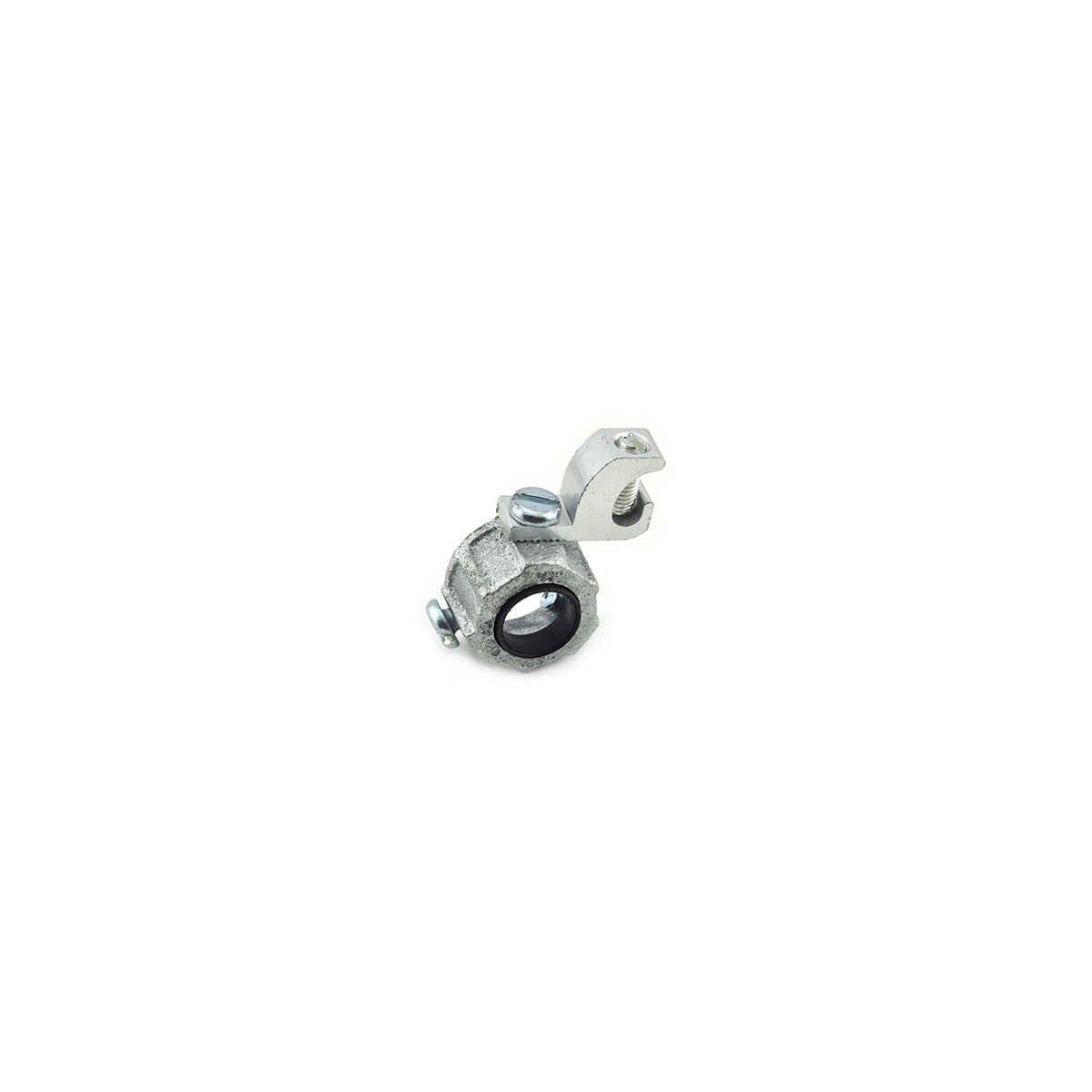

Insulated Grounding Bushing, 2", Malleable Iron with Lug
SKU: #329964
Part: #TL-38614
UPC: 781747138613
Insulated Grounding Bushing, 2", Malleable Iron with Lug
SKU: #329964
Part: #TL-38614
UPC: 781747138613
Total Price: $26.11 per each Sold in increments of 1 each
Description
Insulated Grounding Bushing, 2", Malleable Iron with Lug – Threadless Grounding Solutions
This insulated grounding bushing is designed for use on threadless rigid and IMC conduit where an insulated grounding bushing is required. It provides a secure termination to a cabinet and includes a tin-plated aluminum lug for bonding a jumper to a neutral busbar. The bushing features a plastic metaliner that prevents damage to wire insulation and is temperature rated to 150°C, making it suitable for demanding electrical distributor and switchgear supplier applications.
Specifications
- Material: Malleable Iron
- Finish: Zinc Plated
- Color: Grey with Black Insulator
- Length: 2.75 in
- Width: 0.875 in
- Trade Size: 2"
- Grounding Lug Wire Capacity: 14 to 4 AWG
- Temperature Rating: 150°C
- Manufacturer: Bridgeport Fittings
- Manufacturer Part Number: TL-38614
- Country of Origin: China
- UL File Number: E20412
- UL Standard: UL-514B
- Federal Specification Number: A-A-50553
- NEMA Standard: FB-1
Features
- Plastic metaliner protects wire insulation from damage
- Tin-plated aluminum lug for reliable bonding to neutral busbar
- Corrosion-resistant zinc-plated finish
- Designed for threadless rigid and IMC conduit termination
- Meets OSHA-recognized and NRTL-listed electrical standards
