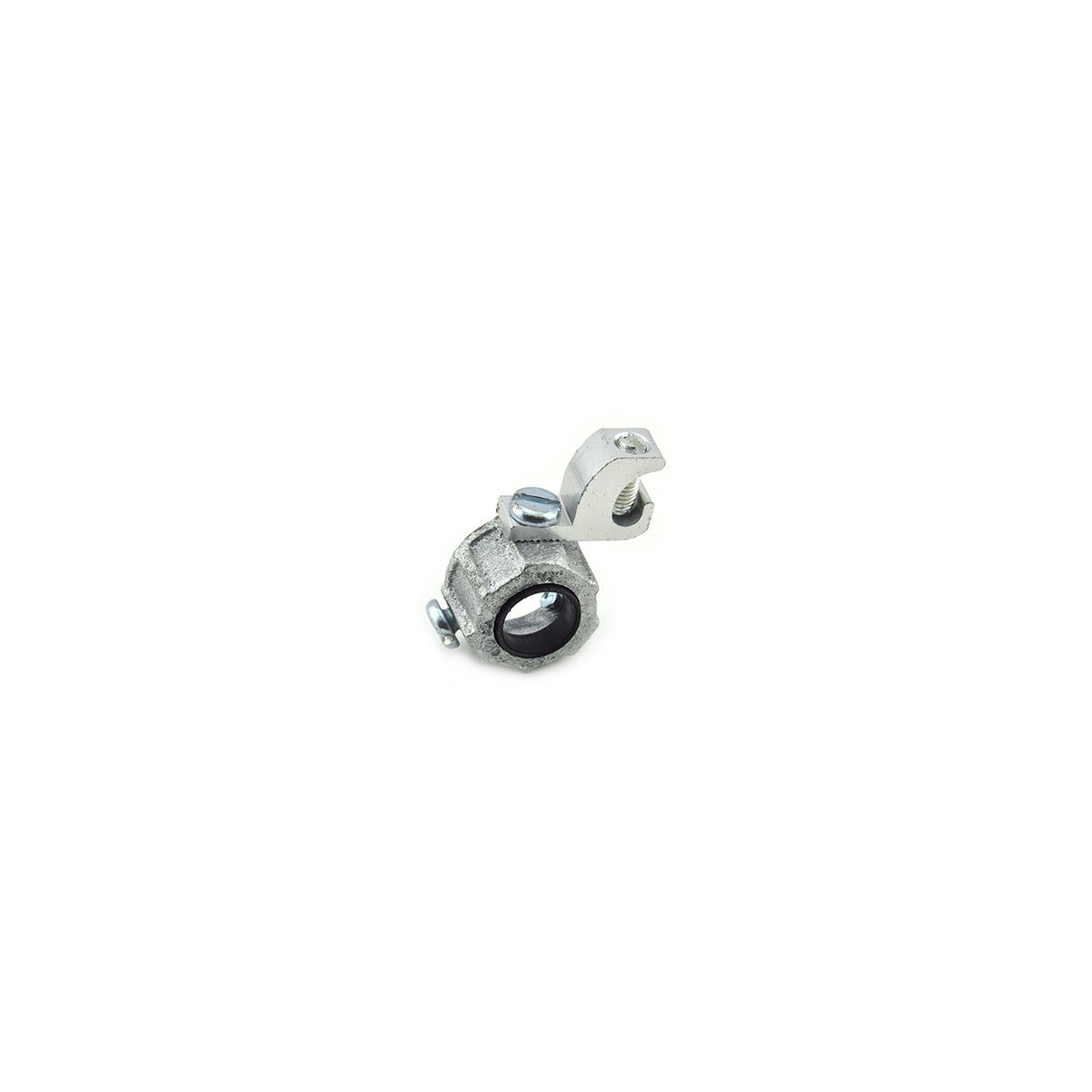

Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug
SKU: #329970
Part: #TL-387
UPC: 781747013873
Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug
SKU: #329970
Part: #TL-387
UPC: 781747013873
Total Price: $34.84 per each Sold in increments of 1 each
Description
Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug
This insulated grounding bushing is designed for use on threadless rigid and IMC conduit where an insulated grounding bushing is required. It provides a secure termination to a cabinet, featuring a plastic metaliner that protects wire insulation from damage. The bushing includes a tin-plated aluminum lug for bonding a jumper to a neutral busbar. Rated for temperatures up to 150°C, it is cULus listed and patented, meeting recognized electrical standards suitable for electrical distributors, lighting solutions, and wire and cable applications.
Specifications
- Material: Malleable Iron
- Finish: Zinc Plated
- Grounding Lug: Tin Electro-plated Aluminum Alloy
- Trade Size: 2-1/2"
- Dimensions: 3.3125 in length × 1 in width
- Temperature Rating: 150°C
- Order Minimum: 1 unit
- Product Weight: 0.5730 lbs
- Manufacturer Part Number: TL-387
- Country of Origin: China
- Certifications: cULus Listed, UL File No. E20412, Federal Specification A-A-50553, NEMA Standard FB-1, UL Standard UL-514B
Features
- Plastic metaliner prevents damage to wire insulation
- Tin-plated aluminum lug for bonding jumper to neutral busbar
- Corrosion-resistant zinc-plated finish
- Suitable for terminating threadless rigid and IMC conduit
- Patented design ensuring reliable grounding
