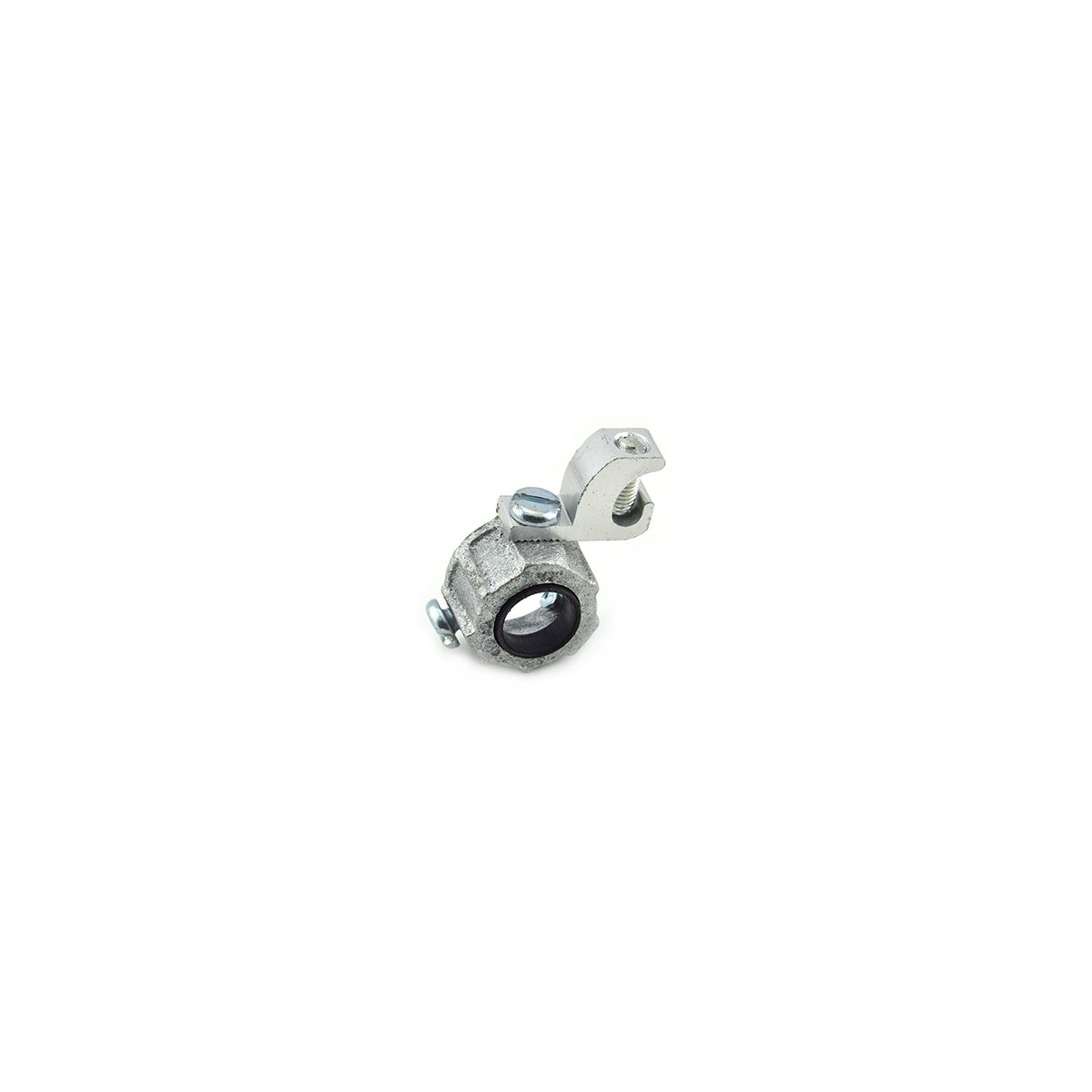

Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug
SKU: #329972
Part: #TL-38740
UPC: 781747138743
Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug
SKU: #329972
Part: #TL-38740
UPC: 781747138743
Total Price: $41.52 per each Sold in increments of 1 each
Description
Insulated Grounding Bushing, 2-1/2", Malleable Iron with Lug – Threadless Grounding Bushing
This insulated grounding bushing is designed for use on threadless rigid and IMC conduit where an insulated grounding bushing is required. It provides secure termination of conduit to a cabinet, featuring a tin-plated aluminum lug for bonding a jumper to a neutral busbar. The bushing includes a plastic metaliner that prevents damage to wire insulation and is temperature rated to 150°C. It meets OSHA-recognized and NRTL-listed electrical standards, making it suitable for professional electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: TL-38740
- Material: Malleable Iron
- Finish: Zinc Plated, Grounding Lug: Tin Electro-plate
- Trade Size: 2-1/2"
- Dimensions: Length 3.3125 in, Width 1 in
- Grounding Lug Wire Capacity: 6 to 250 MCM
- Temperature Rating: 150°C
- Country of Origin: China
- Certifications: cULus Listed, UL File No. E20412, UL Standard UL-514B, NEMA Standard FB-1
- Product Weight: 0.6950 lbs
- Standard Package Quantity: 25
Features
- Plastic metaliner protects wire insulation from damage
- Tin-plated aluminum lug for reliable bonding to neutral busbar
- Corrosion-resistant zinc-plated malleable iron construction
- Designed for threadless rigid and IMC conduit applications
- Meets industry safety and performance standards for grounding bushings
