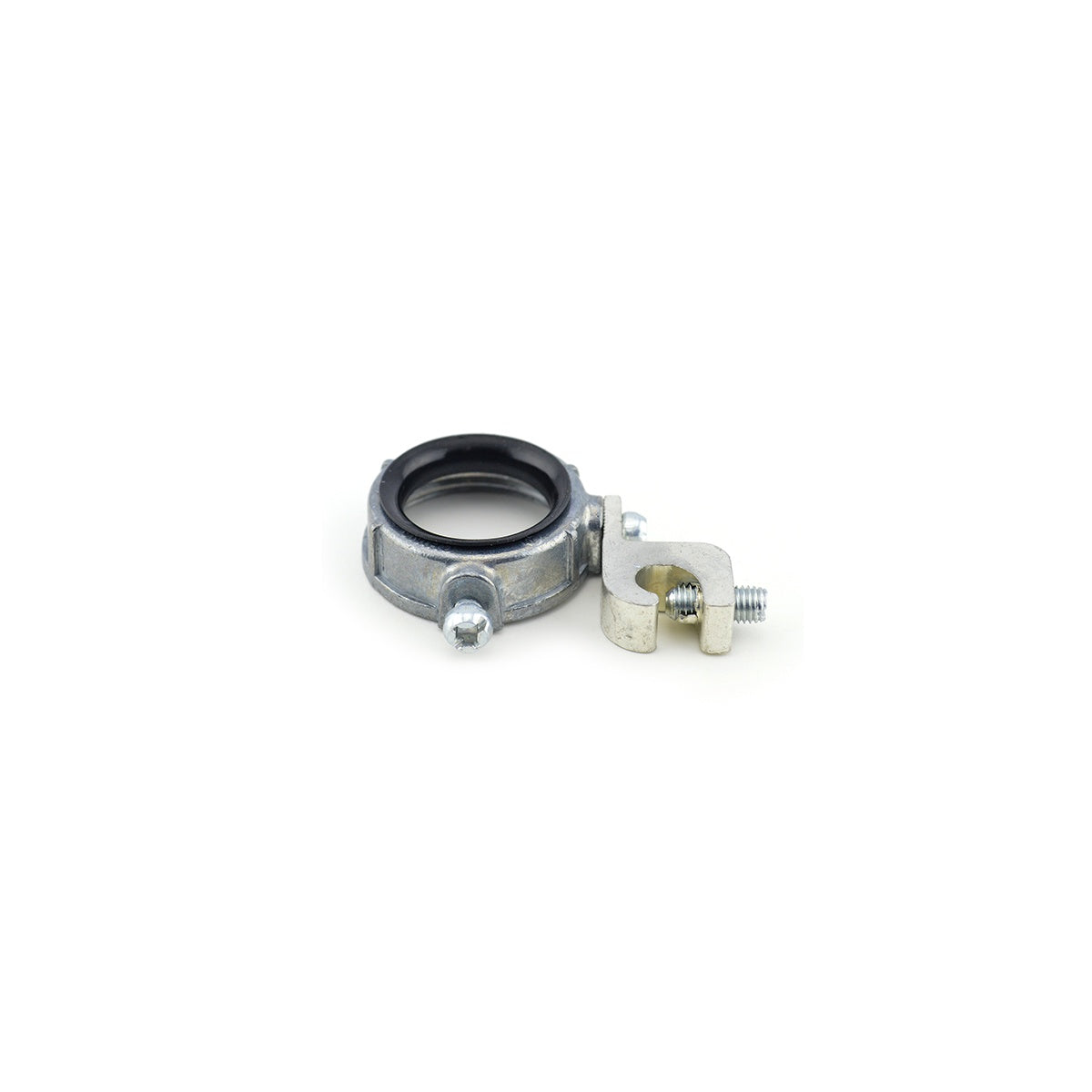

Insulated Grounding Bushing, 1" Zinc Die Cast with Lug – Electrical Conduit Fitting

This insulated grounding bushing is designed for use with locknuts to terminate service conduit or fittings to cabinets, protecting conductors inside threaded rigid or IMC conduit. It features a zinc die cast body with a plastic metaliner that prevents damage to wire insulation and includes a lug for bonding a jumper to the neutral busbar. Suitable for electrical distributors and switchgear suppliers, this product supports safe grounding and bonding in electrical installations.

Specifications

• Material: Zinc Die Cast
• Color: Grey with Black Insulator
• Length: 1.5625 in
• Width: 1 in
• Finish: Ball burnish
• Temperature Rating: 150¬∞C
• Grounding Lug Material: Aluminum Alloy 6061-T6
• Lug Wire Capacity: 14 to 4 AWG
• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 383-DC
• Country of Origin: China
• Product Weight: 0.0956 lbs

Features

• Plastic metaliner prevents damage to wire insulation
• Lug provided for bonding jumper to neutral busbar
• Used to terminate service conduit to cabinet with locknut
• Rated for high temperature applications up to 150¬∞C
• Solid construction meeting OSHA-recognized and NRTL-listed electrical standards

Downloads & Links

• Spec Sheet
