Insulated Ground Bushing, 2-1/2"
SKU: #384915
Part: #GLL 7
UPC: 784564123077
Insulated Ground Bushing, 2-1/2"
SKU: #384915
Part: #GLL 7
UPC: 784564123077
Next day delivery
Description

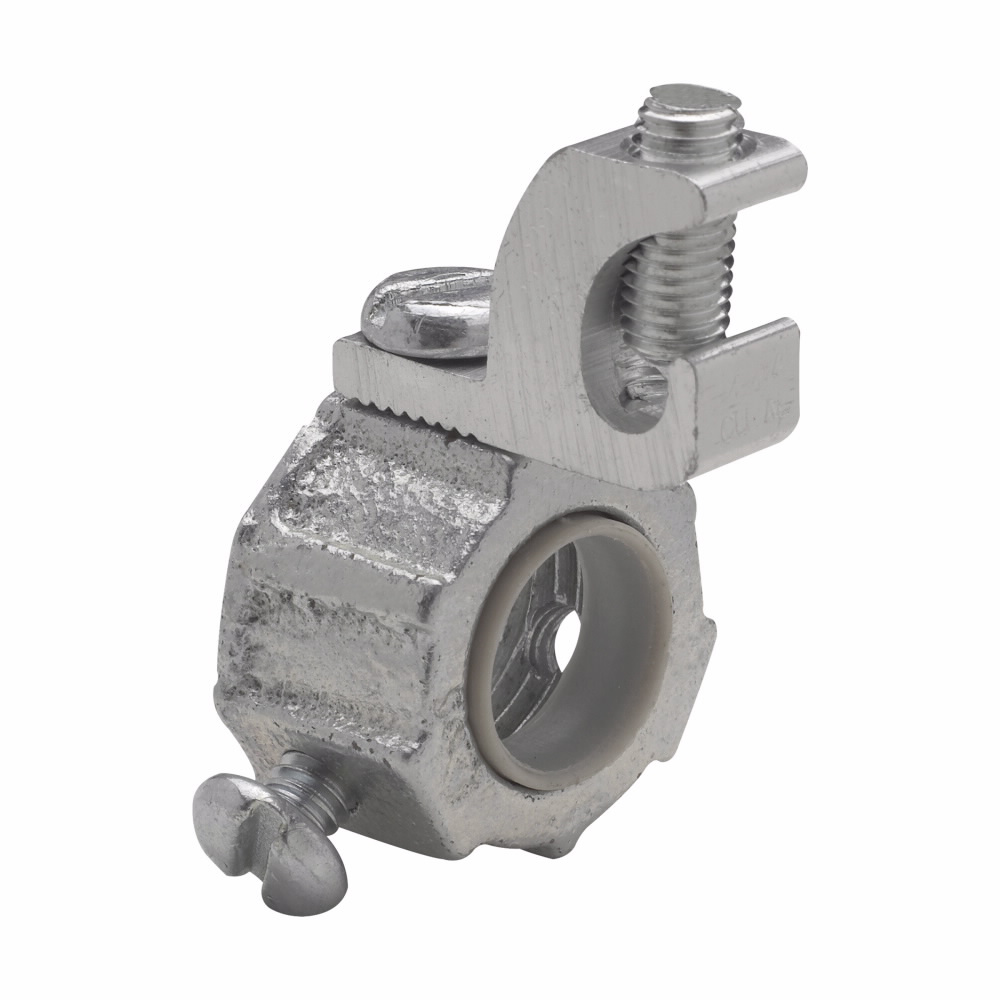

Insulated Ground Bushing, 2-1/2" – Grounding Conduit Fitting
The Insulated Ground Bushing, 2-1/2", manufactured by Crouse-Hinds, is designed for use in commercial and institutional building structures to provide a reliable means of grounding threaded rigid or intermediate metal conduit (IMC). This fitting features a resilient plastic throat liner rated for 105°C, ensuring resistance to corrosion, chemicals, and temperature extremes. It is constructed from durable iron with a zinc-plated finish for enhanced protection. This product is suitable for electrical distributors and switchgear suppliers requiring dependable grounding solutions within wire and cable installations.
Specifications
- Manufacturer: Crouse-Hinds
- Manufacturer Part #: GLL 7
- Material: Iron
- Size: 2-1/2"
- Dimensions (L x W x H): 3.31 in x 3.31 in x 1 in
- Weight: 0.62 lbs
- Application: Commercial / Institutional Buildings / Structures - Other
- UPC: 784564123077
Features
- 105°C rated plastic throat liner for enhanced durability
- Resilient liner resists corrosion, chemicals, and temperature extremes
- Zinc-plated finish for corrosion protection
- Designed for grounding conduit through an insulated bushing
- Compatible with copper or aluminum grounding conductors (threaded lug)
