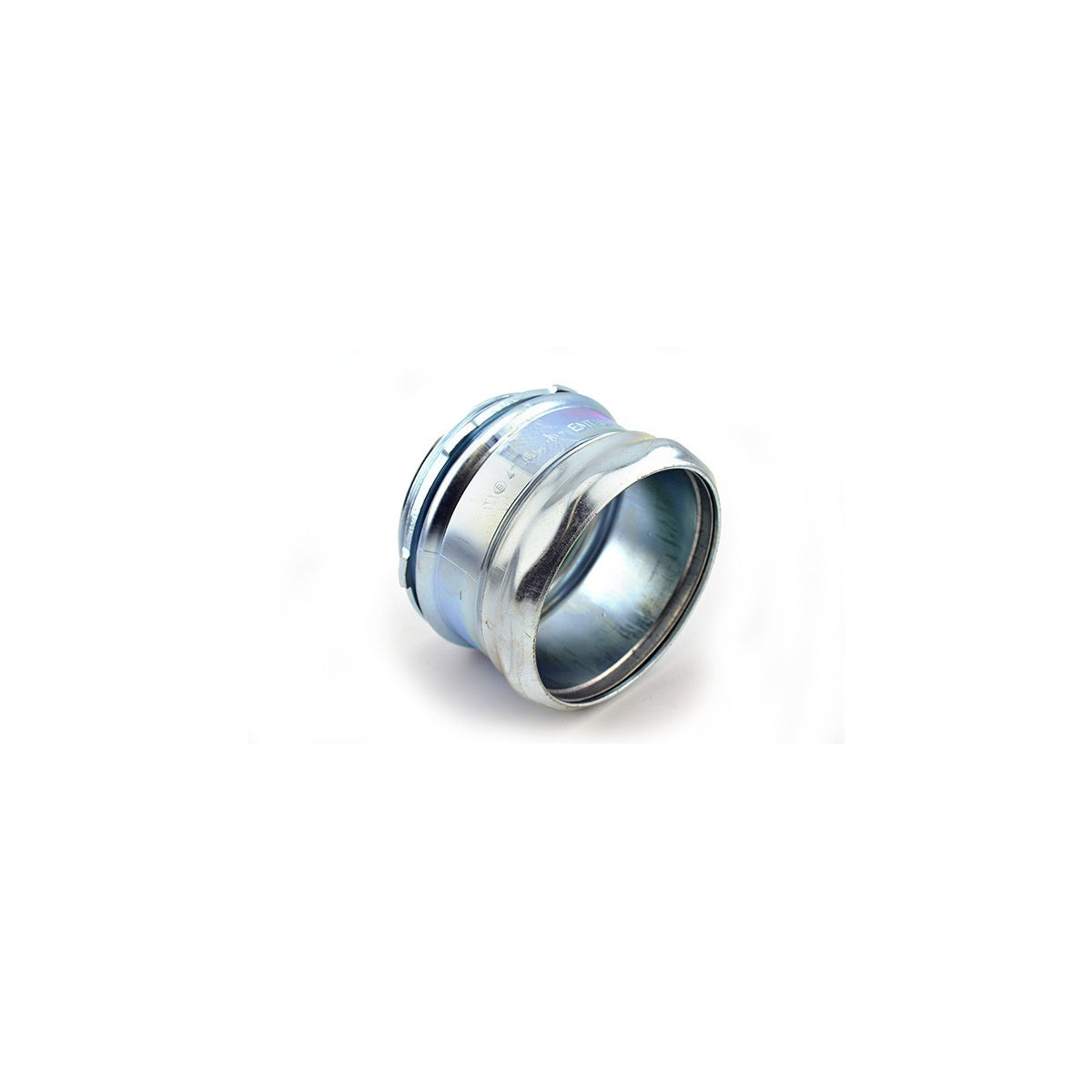

Insulated EMT Compression Connector 1/2", Zinc Plated Steel – Compression EMT Connector

The Bridgeport Fittings Insulated EMT Compression Connector 1/2" is designed to securely join electrical metallic tubing (EMT) to electrical boxes or enclosures with a concrete-tight seal. This connector is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant fittings for lighting solutions and wire and cable installations. Its insulated throat protects internal wiring from abrasion and supports a working temperature of up to 105°C, making it ideal for harsh electrical environments.

Specifications

• Material: Steel
• Finish: Zinc Electroplated
• Insulation: Insulated Throat
• Length: 1.75 in
• Width: 1.375 in
• Order Minimum: 1 unit
• Product Weight: 0.1340 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 250-I
• Country of Origin: China
• UL Listed File No.: E24001
• Working Temperature Rating: 105¬∞C

Features

• Compression type connector for quick, concrete-tight seals between EMT and boxes or enclosures
• Rugged steel construction with electroplated zinc finish for excellent corrosion resistance
• Insulated throat protects wiring from abrasion
• Simple installation: insert EMT, tighten compression ring, and secure with locknut
• Meets UL 514B bonding and grounding requirements
• Suitable for use in lighting solutions and electrical distribution systems

Downloads & Links

• Spec Sheet
