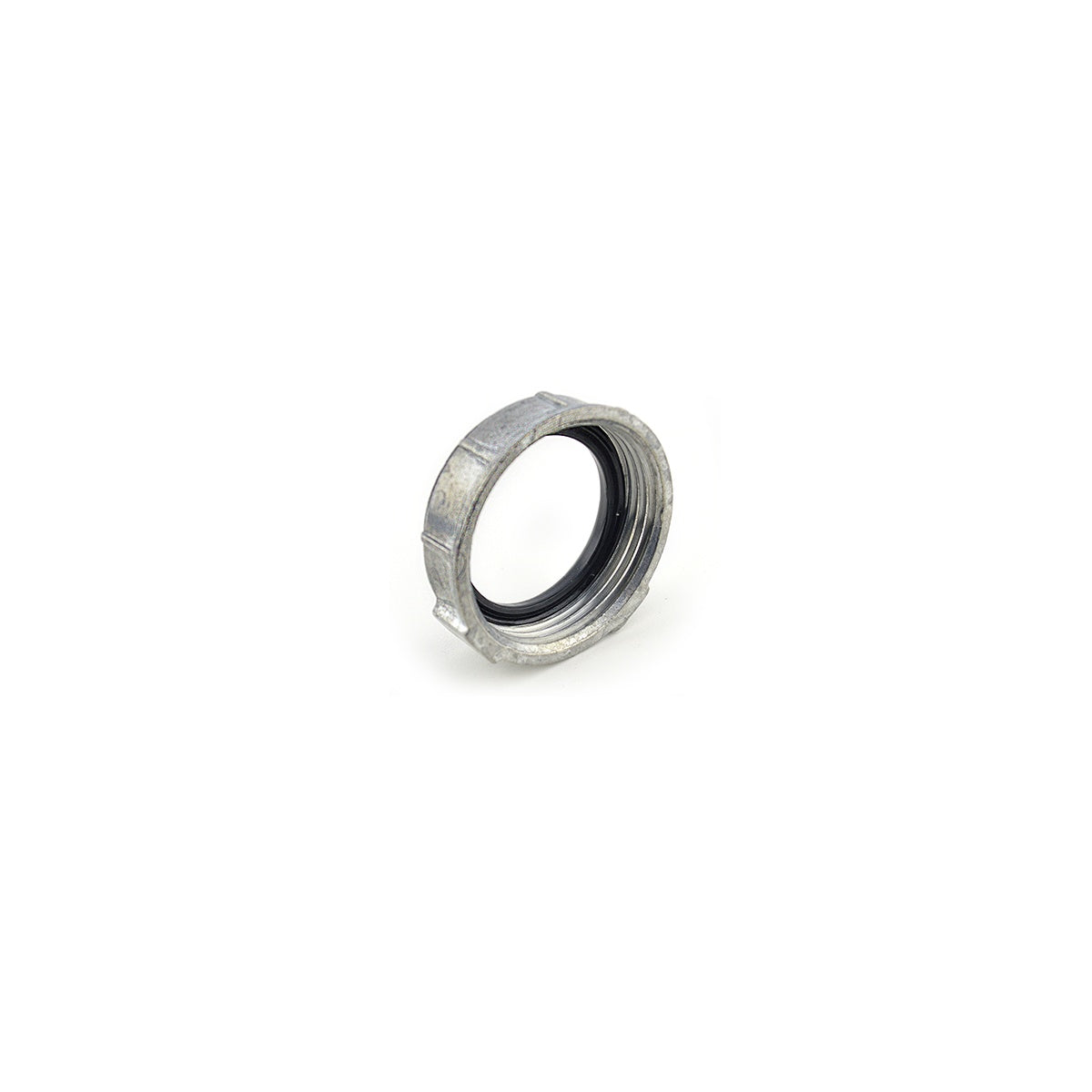

Insulated Bushing, 1-1/4", Zinc Die Cast to Protect Conductors
SKU: #384911
Part: #364-DC
UPC: 781747093646
Insulated Bushing, 1-1/4", Zinc Die Cast to Protect Conductors
SKU: #384911
Part: #364-DC
UPC: 781747093646
Total Price: $6.17 per each Sold in increments of 1 each
Description
Insulated Bushing, 1-1/4", Zinc Die Cast to Protect Conductors
The Bridgeport Insulated Bushing 364-DC is designed for use with locknuts to protect conductors inside threaded rigid or IMC conduit entering an electrical box. Featuring a zinc die cast construction with a plastic metaliner, it prevents damage to wire insulation, ensuring compliance with electrical safety standards. This component is suitable for electrical distributors and lighting solutions requiring durable conduit fittings and wire protection.
Specifications
- Material: Zinc Die Cast
- Finish: Ball burnished, mirror smooth
- Color: Grey with Black Insulator
- Length: 1.9375 in
- Width: 1.875 in
- Height: 0.5 in
- Temperature Rating: 150°C
- Trade Size: 1-1/4"
- Manufacturer Part #: 364-DC
- Country of Origin: China
- UL File Number: E9391
- Federal Specification Number: A-A-50553
- NEMA Standard: FB-1
- UL Standard: UL-514B
Features
- Plastic metaliner protects wire insulation from damage
- Corrosion-resistant zinc die cast construction
- Compact dimensions suitable for threaded rigid or IMC conduit
- Meets OSHA-recognized, NRTL-listed electrical standards
- Ball burnished finish for smooth surface and durability
