InSITE™ RTQ™ RG-6 BNC Compression Connector -35 pk
SKU: #213049
Part: #89-5048
UPC: 783250689439
InSITE™ RTQ™ RG-6 BNC Compression Connector -35 pk
SKU: #213049
Part: #89-5048
UPC: 783250689439
Total Price: $3.41 per each Sold in increments of 35 each
Description

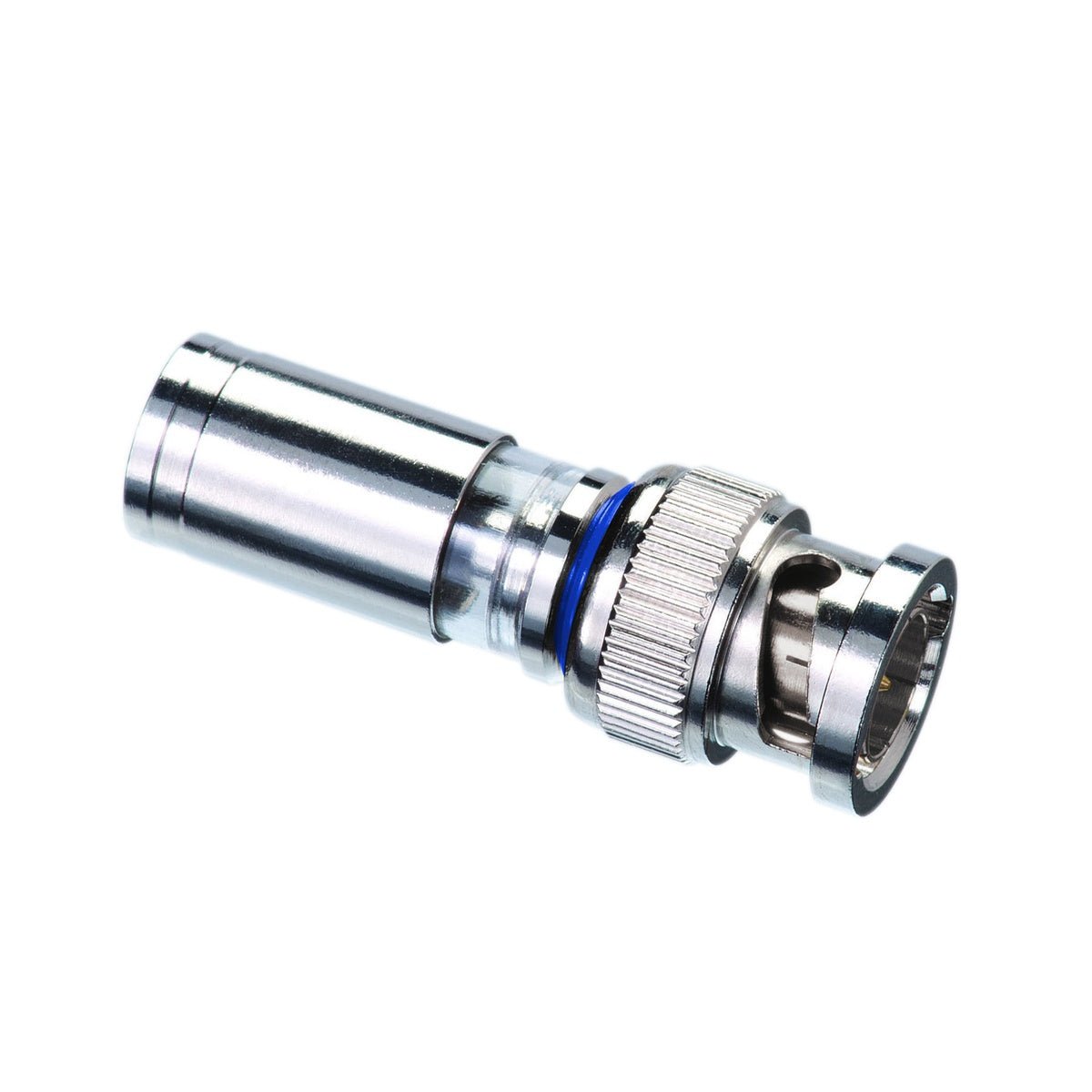

InSITE™ RTQ™ RG-6 BNC Compression Connector - BNC Compression Connector
The InSITE™ RTQ™ RG-6 BNC Compression Connector is a universal BNC compression connector designed for nearly all RG-6 coax cables, including RG-6, RG-6 Quad, RG-6 Plenum, and RG-6 Quad Plenum types. It is engineered to provide a high-performance, reliable connection for video-based applications such as CCTV system installations and HD video distribution. This connector features patented InSITE™ technology, which includes a 360° clear window that allows installers to verify proper cable insertion before compression, eliminating guesswork and rework. The nickel-plated brass body with a gold-plated fixed center pin ensures durability and excellent electrical performance. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, it requires a standard 1/4” x 1/4” cable preparation and works with recommended compression tools for efficient field termination.
Specifications
- Material: Brass
- Finish: Nickel-Plated
- Conductor Range: 0.029 - 0.042 in, 20 - 18 AWG Solid Center Conductor
- Dimensions: Length 5.25 in, Width 2.5 in, Height 2.5 in
- Application: For CCTV System Installations/Integrations and General Purpose Applications on RG-6 Cable
- Product Weight: 1.4310 lbs
- Manufacturer: IDEAL Industries
- Manufacturer Part #: 89-5048
- UPC: 783250689439
- Cable Jacket Diameter Compatibility: 0.226” - 0.305” (from catalog data)
- Cable Dielectric Diameter Compatibility: 0.168” - 0.183” (from catalog data)
Features
- Patented InSITE™ 360° clear window for visual confirmation of proper cable insertion before compression
- Fixed gold-plated center pin that will not fall out, ensuring secure and consistent connections
- Compatible with multiple RG-6 cable types, reducing inventory requirements
- Weatherproof back seal with patented RTQ™ compression sleeve to prevent moisture ingress
- Nickel-plated brass body for durability and corrosion resistance
- Accepts 23-18 AWG solid center conductors
- Requires industry standard 1/4” x 1/4” cable preparation for easy and accurate installation
- Improved return loss performance: >35dB up to 1GHz, >25dB up to 2GHz, >20dB up to 3GHz
- Compatible with IDEAL compression tools such as OmniSeal™ Pro XL (30-793) and LinearX®3 (33-632)
