InSITE™ RG-59 BNC Compression Connector -35 pk
SKU: #213048
Part: #89-5047
UPC: 783250689408
InSITE™ RG-59 BNC Compression Connector -35 pk
SKU: #213048
Part: #89-5047
UPC: 783250689408
Total Price: $3.41 per each Sold in increments of 35 each
Description

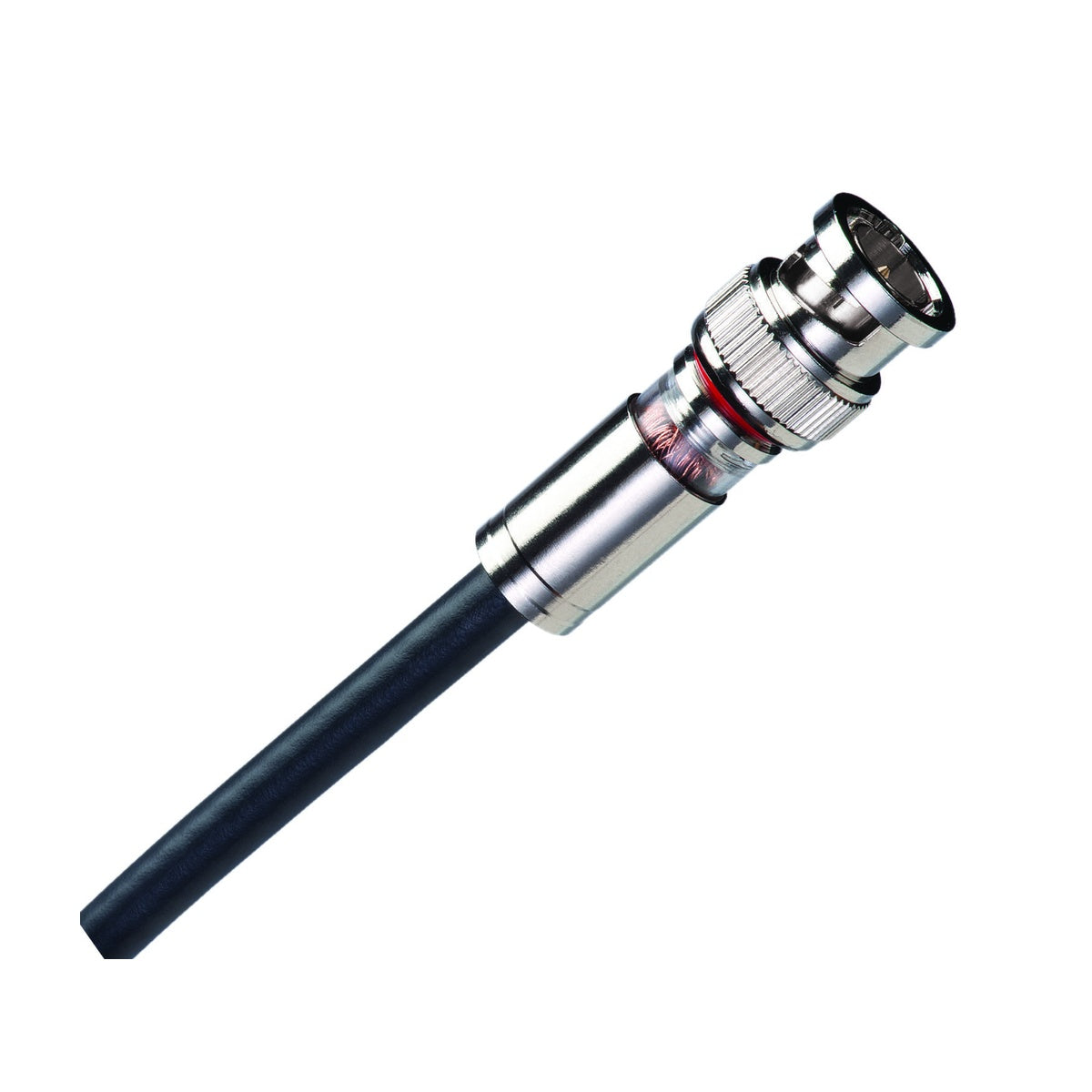

InSITE™ RG-59 BNC Compression Connector - Compression Connector for CCTV and Video Applications
The InSITE™ RG-59 BNC Compression Connector is designed for reliable field termination of RG-59 coaxial cables used in CCTV system installations, video distribution, and general purpose applications. This connector features patented InSITE™ Technology, providing a 360° clear window that allows electrical distributors and lighting solutions providers to verify proper cable insertion before compression, eliminating guesswork and improving installation accuracy. The connector is compatible with standard 1/4” x 1/4” cable preparation and offers a robust, weatherproof, and high-performance connection suitable for wire and cable applications requiring 75Ω impedance and operation up to 3GHz.
Specifications
- Application: For CCTV System Installations/Integrations and General Purpose Applications on RG-59 Cable
- Cable Jacket Diameter: 0.230” - 0.250”
- Dielectric Diameter: 0.142” - 0.148”
- Conductor Range: 23-18 AWG Solid Center Conductor (0.029” - 0.042”)
- Material: Brass
- Finish: Nickel-Plated
- Dimensions (L x W x H): 5.25 in x 4.5 in x 2 in
- Product Weight: 1.5010 lbs
- Manufacturer: IDEAL Industries
- Manufacturer Part #: 89-5047
- Impedance: 75Ω
- Frequency Rating: Up to 3GHz
- UPC: 783250689408
Features
- Patented InSITE™ Technology with a 360° clear window for visual verification of cable insertion before compression
- Gold plated fixed center pin that will not fall out, ensuring consistent electrical contact
- Nickel-plated brass body for durability and corrosion resistance
- Patented RTQ™ compression sleeve providing a weatherproof seal at the cable entry point
- Low insertion force and redesigned funneled pin entry that centers angled pins
- Compatible with 23-18 AWG solid center conductors, reducing the need for multiple connector types
- Maintains 75Ω impedance with 360° compression design for improved return loss and lower insertion loss
- Smoother and easier mating with female BNC connectors due to extended head travel range
