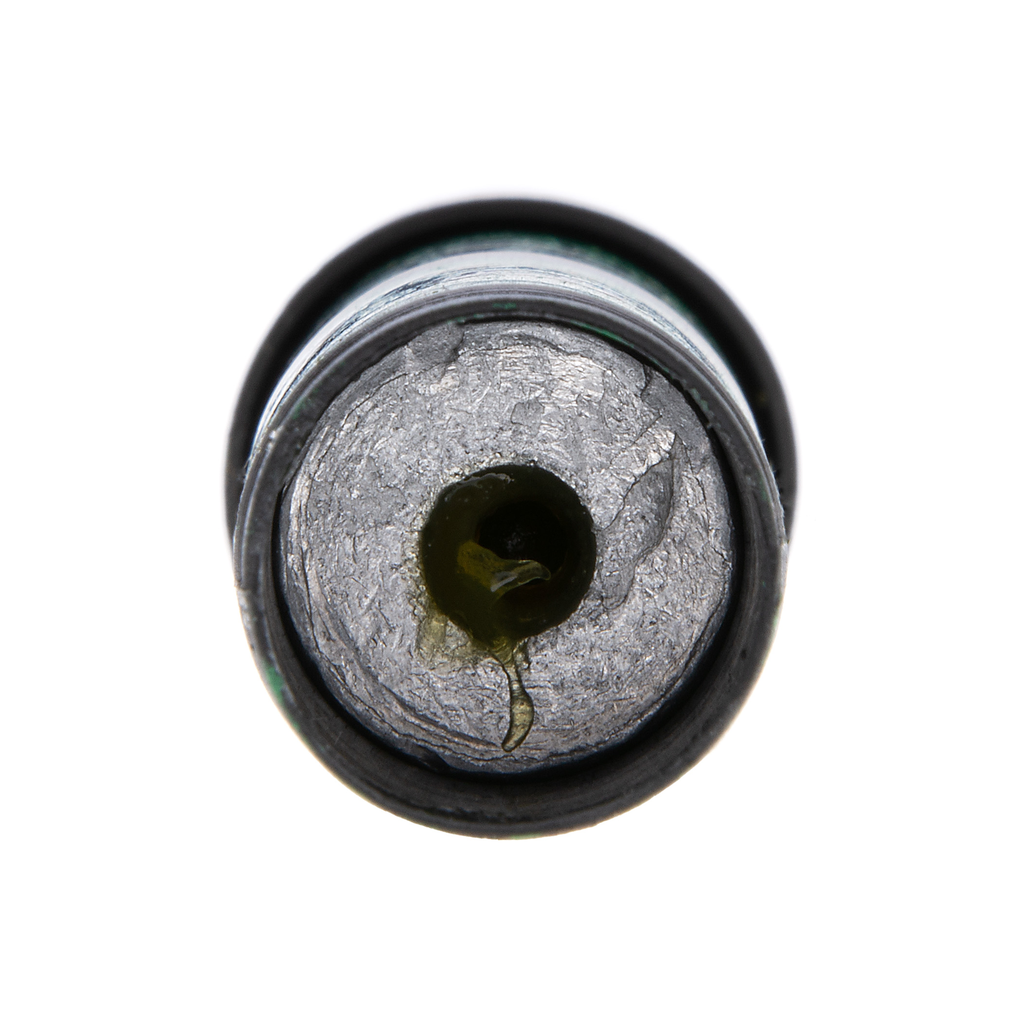

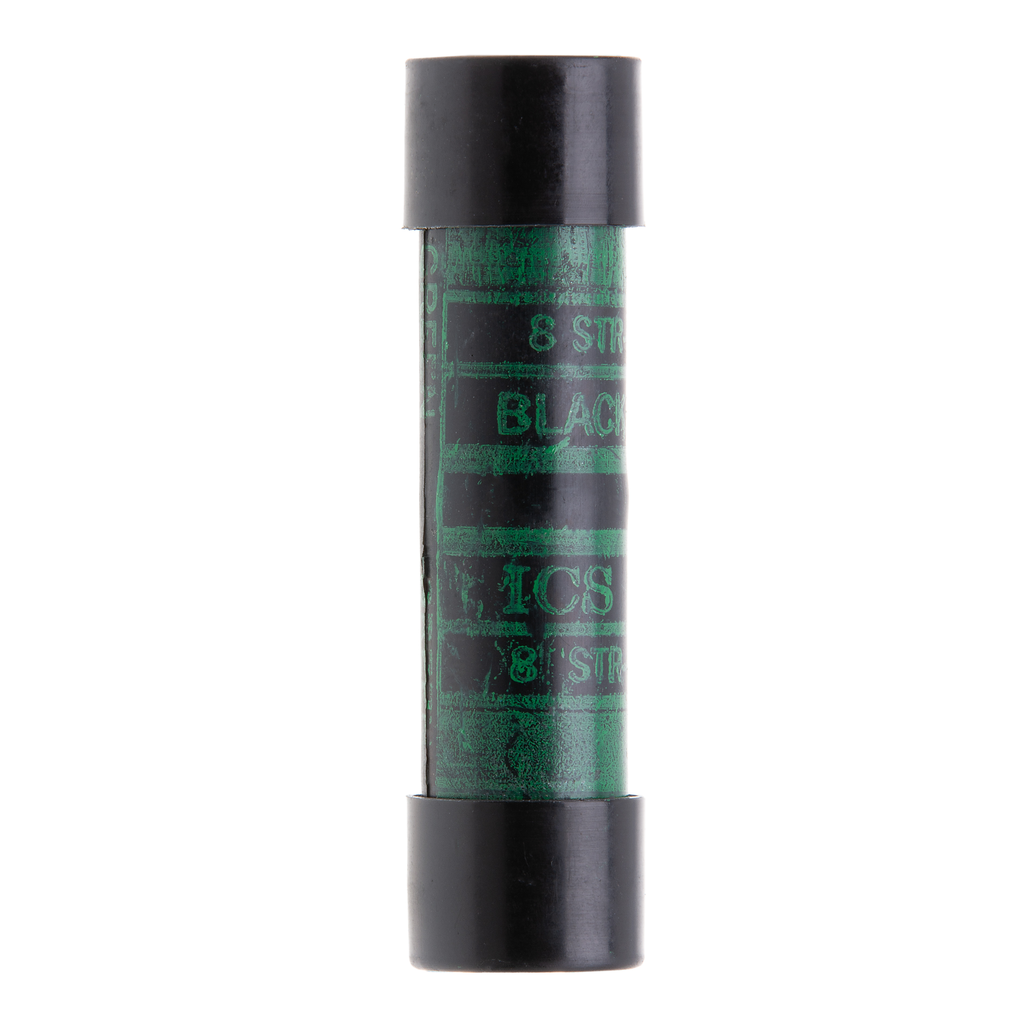

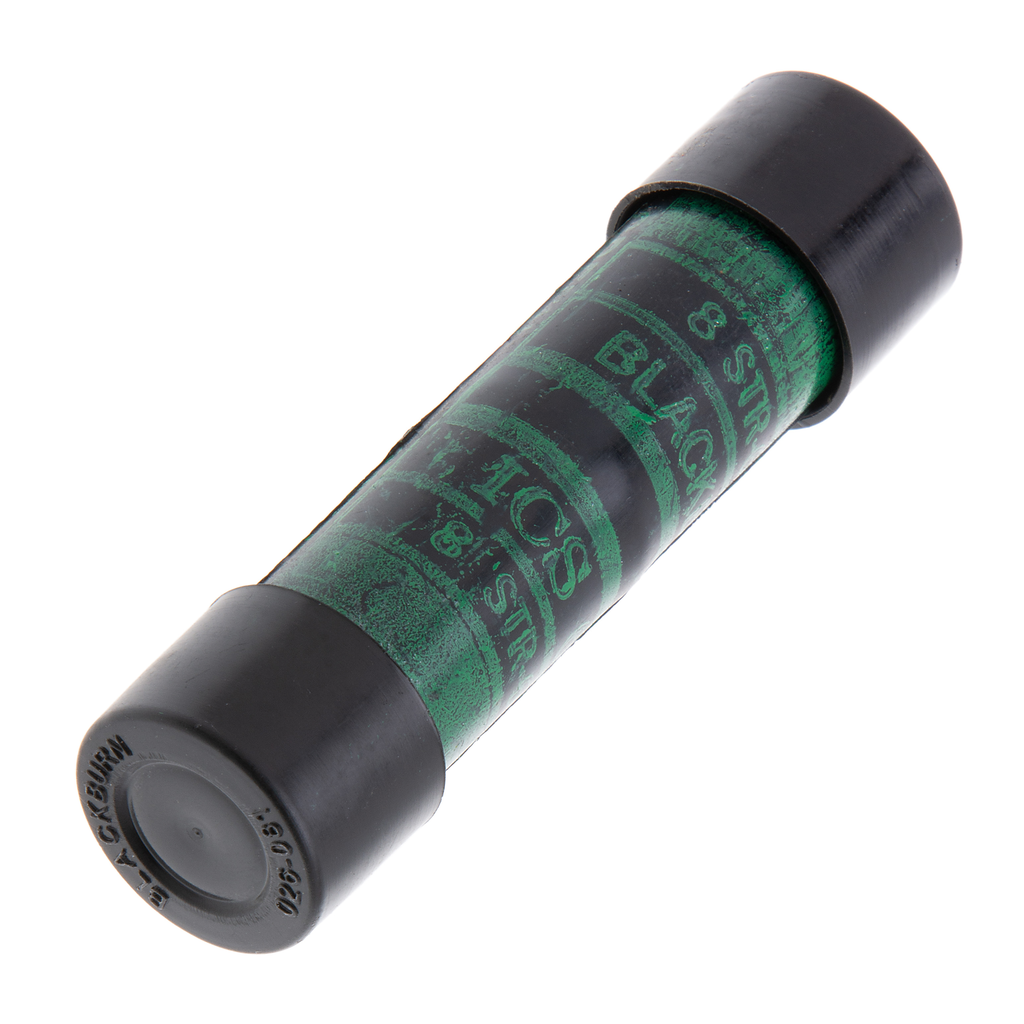

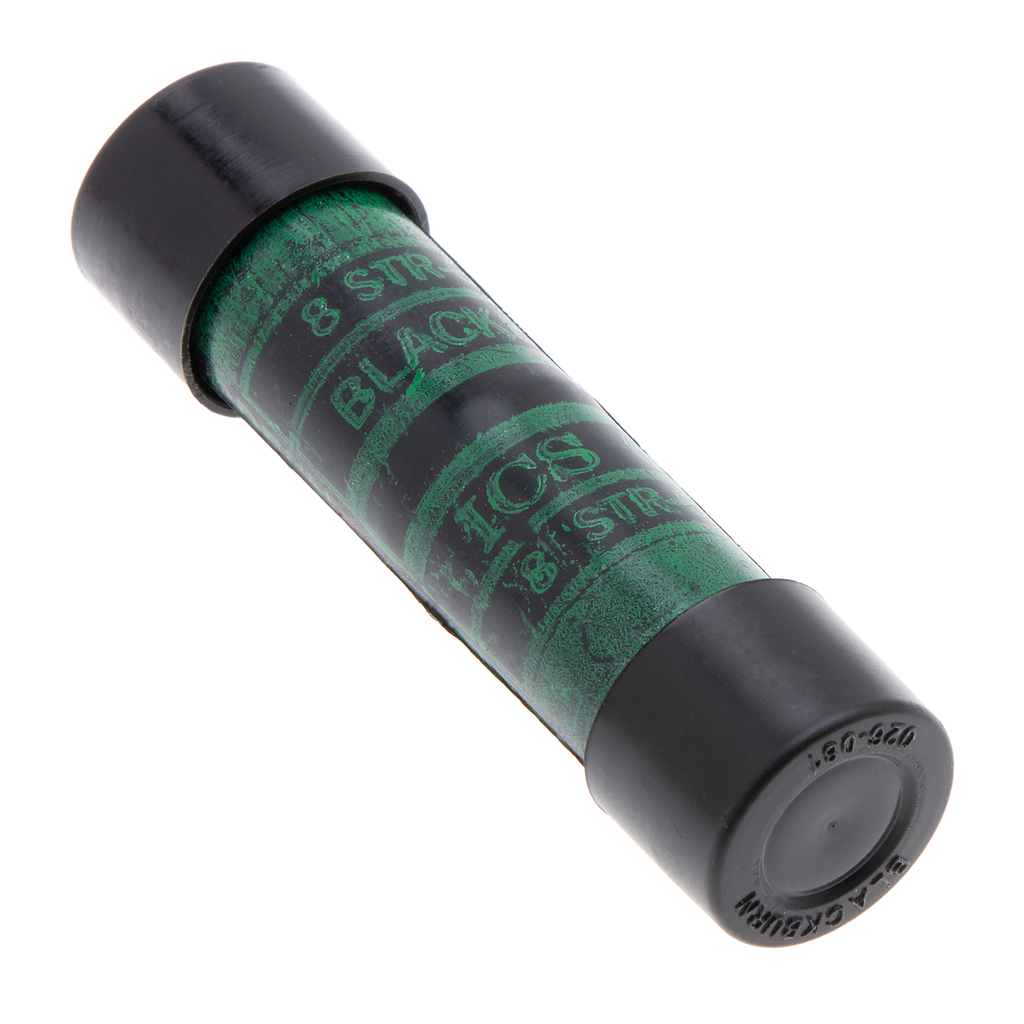

Ins Serv Ent Sleeve GRN-GRN 8 STR-6 SOL
SKU: #305047
Part: #ISE61
UPC: 662381028006
Ins Serv Ent Sleeve GRN-GRN 8 STR-6 SOL
SKU: #305047
Part: #ISE61
UPC: 662381028006
Description
Ins Serv Ent Sleeve GRN-GRN 8 STR-6 SOL - Insulated Service Entrance Sleeve
This insulated service entrance sleeve is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, dual-rated connectors for aluminum-aluminum and aluminum-copper conductor combinations. The sleeve supports fast and easy installation using standard tools.
Specifications
- Application: Terminate, Splice, Tap Power Connectors
- Material: Aluminum
- Insulation: Insulated
- Color: Green (Main) - Green (Tap)
- Dimensions: 2.78 inches (Length) x 0.64 inches (Width) x 0.64 inches (Height)
- Number of Wires: 2
- Voltage Rating: 600 Volts
- Environmental Conditions: 90°C
- Meets ANSI C119.4 standards
- Product Weight: 3.5 lbs
- Country of Origin: Taiwan
- Manufacturer: NSI Industries
- Manufacturer Part #: ISE61
Features
- Pre-insulated service entrance compression sleeve for fast and easy installation with standard tools and dies
- Suitable for aluminum-aluminum and aluminum-copper conductor combinations
- Solid center barrier for reliable connection integrity
