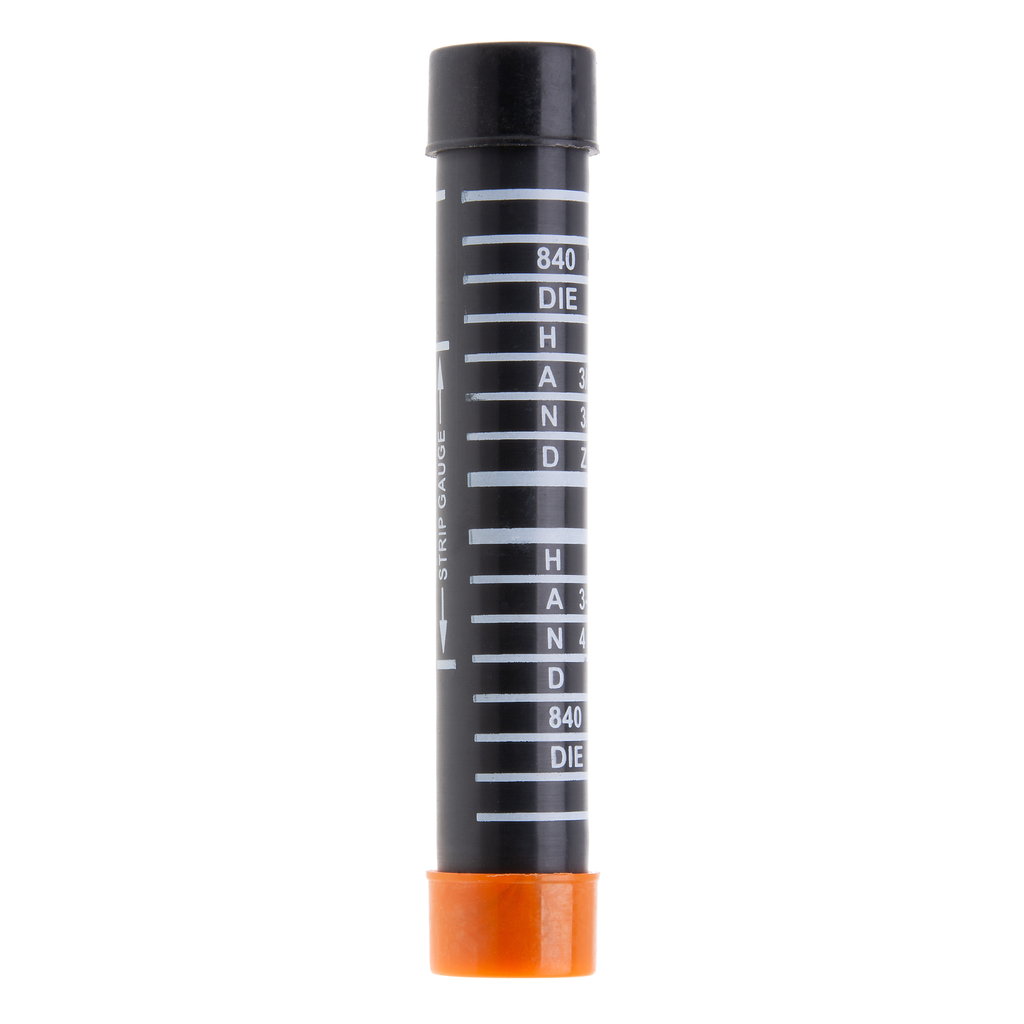

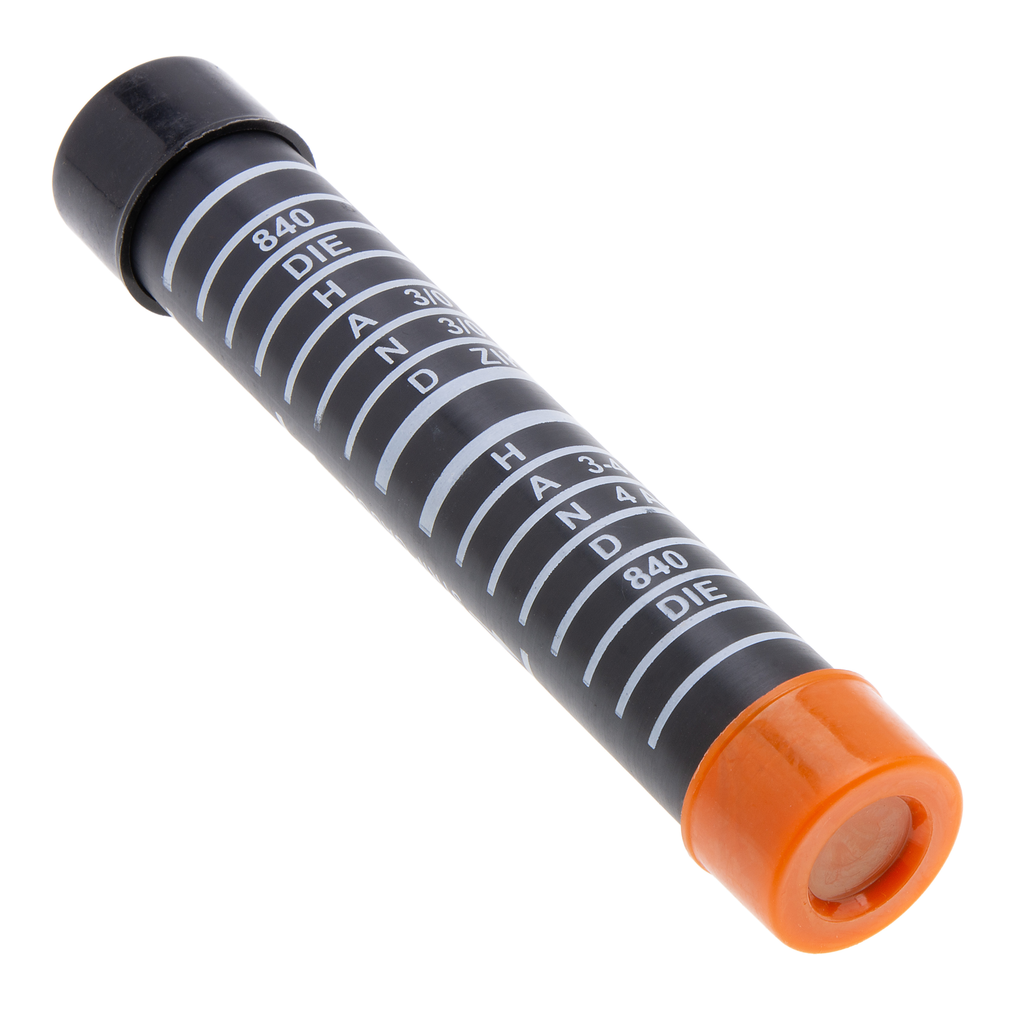

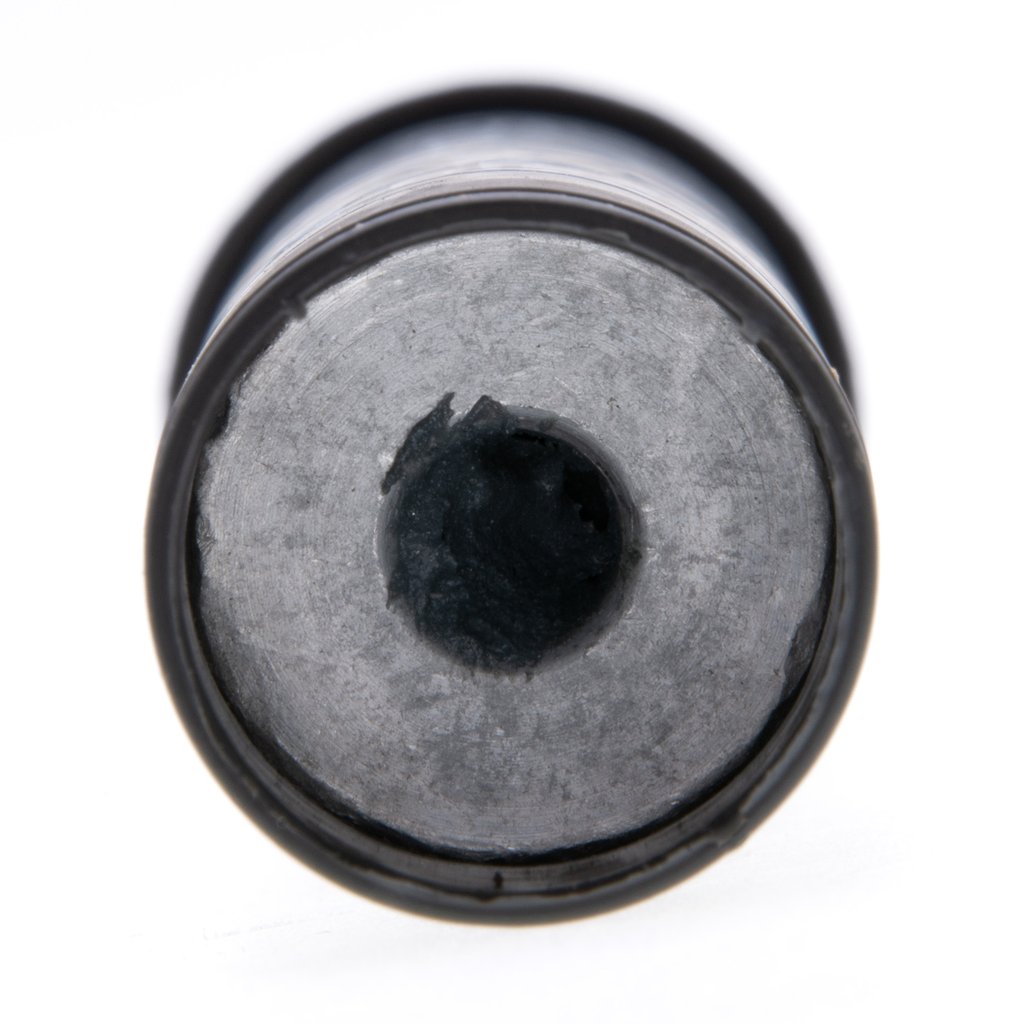

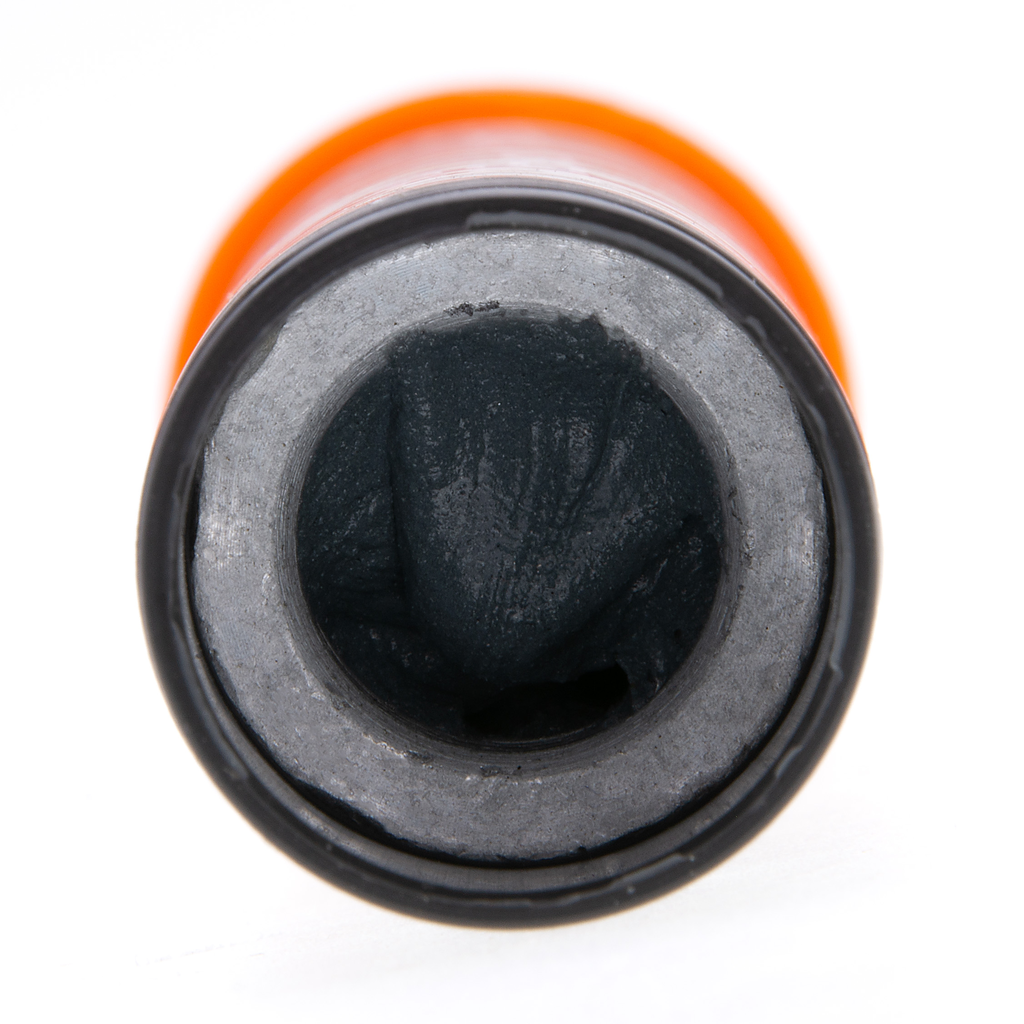

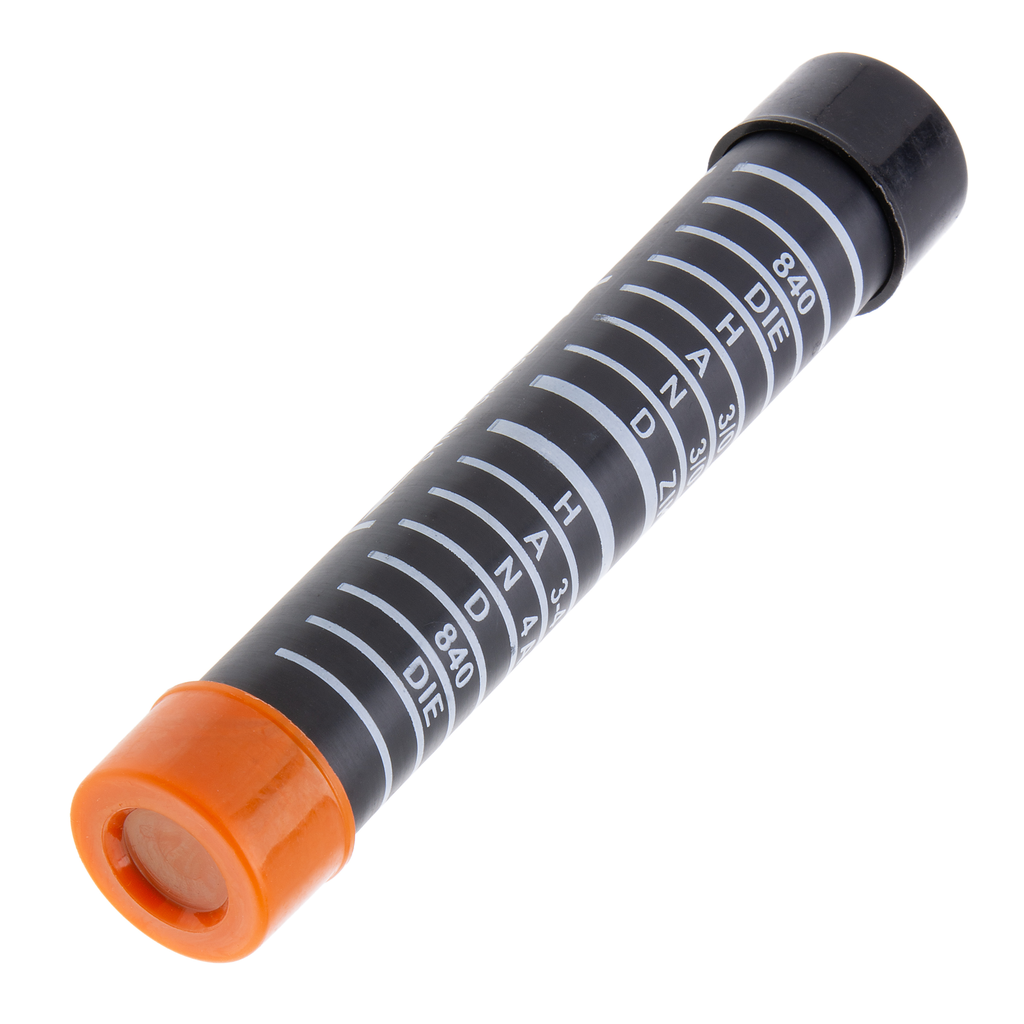

Ins Serv Ent Sleeve BLK-ORN 3/0-2 SOL
SKU: #305022
Part: #ISE154
UPC: 662381028235
Ins Serv Ent Sleeve BLK-ORN 3/0-2 SOL
SKU: #305022
Part: #ISE154
UPC: 662381028235
Description
Ins Serv Ent Sleeve BLK-ORN 3/0-2 SOL - Insulated Service Entrance Sleeve
Insulated service entrance sleeves designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. These sleeves facilitate fast and easy installation with standard tools, suitable for combinations of aluminum-aluminum and aluminum-copper conductors. Rated for 600 volts and compliant with ANSI C119.4 standards, they are ideal for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections.
Specifications
- Application: Terminate, Splice, Tap Power Connectors
- Material: Aluminum
- Insulation: Insulated
- Voltage Rating: 600 Volts
- Environmental Conditions: 90 °C
- Color: Black (Main) - Orange (Tap)
- Length: 5.5 inches
- Width: 0.91 in
- Height: 0.91 in
- Number of Wires: 2
- Product Weight: 2.88
- Manufacturer: NSI Industries
- Manufacturer Part #: ISE154
- Country of Origin: China
Features
- Pre-insulated service entrance compression sleeves for fast and easy installation with standard tools and dies
- Compatible with aluminum-aluminum and aluminum-copper conductor combinations
- Solid center barrier for enhanced connection integrity
- Meets or exceeds ANSI C119.4 standards
