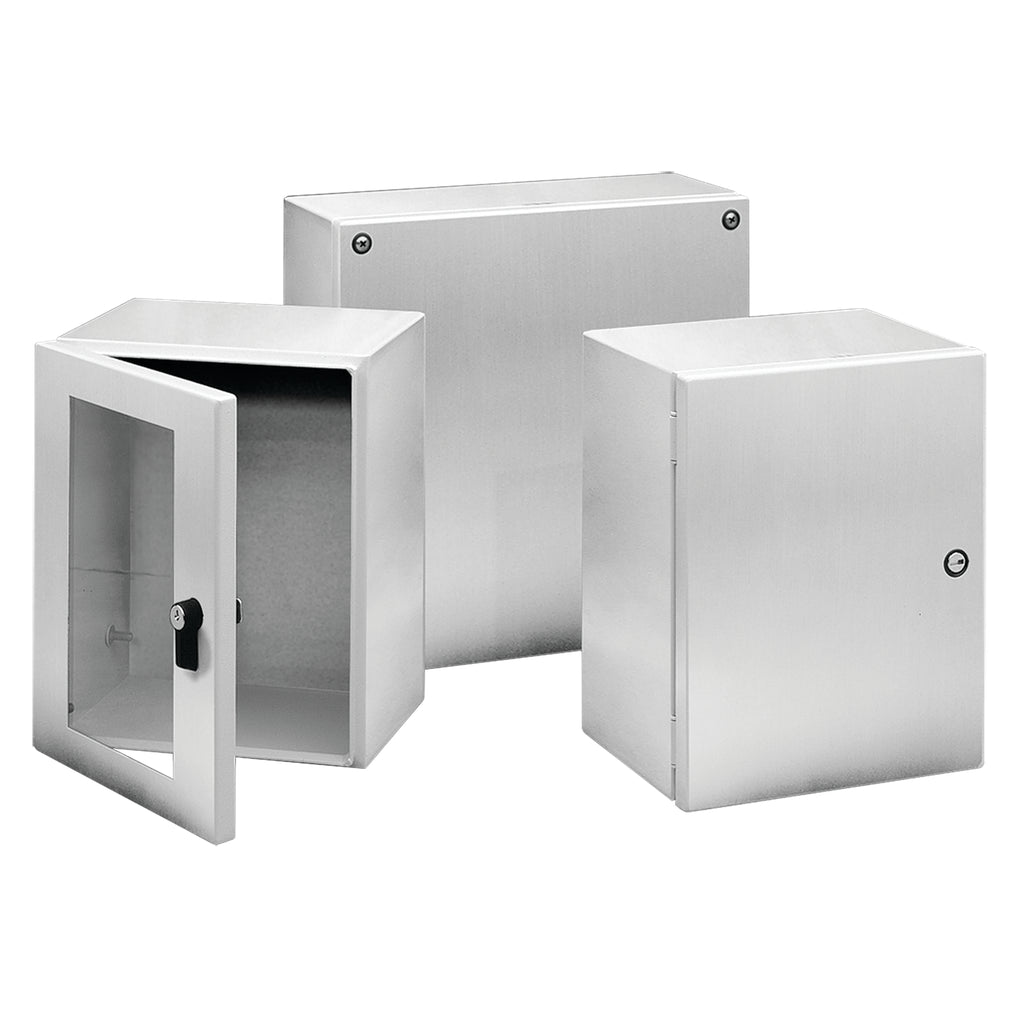

InLine Enclosure Screw Cover Type 4X, 350x300x200mm, Brushed, Stainless 304 - Electrical Enclosure

The InLine Enclosure Screw Cover Type 4X is a stainless steel electrical enclosure designed for industrial applications requiring protection and aesthetic styling. Ideal for electrical distributors and switchgear suppliers, this enclosure offers a combination of style and functionality with a brushed stainless steel finish. It is suitable for housing wire and cable, instrumentation, and control equipment in demanding environments.

Specifications

• Material: Stainless Steel 304
• Finish: Brushed
• Dimensions (L x W x D): 14.25 in x 12.50 in x 7.87 in (350 mm x 300 mm x 200 mm)
• Body Thickness: 1.98 millimeters
• Weight: 14.96 lbs
• Order Minimum: 1 unit
• Country of Origin: Mexico
• Manufacturer: nVent Hoffman
• Manufacturer Part Number: LSC353020SS
• UL Certification: UL508A Listed, Type 4, 4X, 12 (per Declaration of Conformity, file E61997)
• Standards: NEMA/EEMAC Type 4, 4X, 12; CSA Type 4, 4X, 12; IEC 60529 IP66

Features

• Aesthetic brushed finish with embedded handles for style and functionality
• Continuous welds with smooth joints for durability and contamination resistance
• Body flange formed outward to prevent contaminant ingress
• Captive stainless steel Type 316 screw covers with durable composite bushings
• Foam gasket without joints for effective sealing
• Provision for M6 bonding terminal on cover and M6 grounding terminal on body
• Rear mounting holes compatible with M6 or ¼-20 UNC screws for direct or external mounting
• Brushed stainless steel 304 construction suitable for harsh environments requiring Type 4X protection
