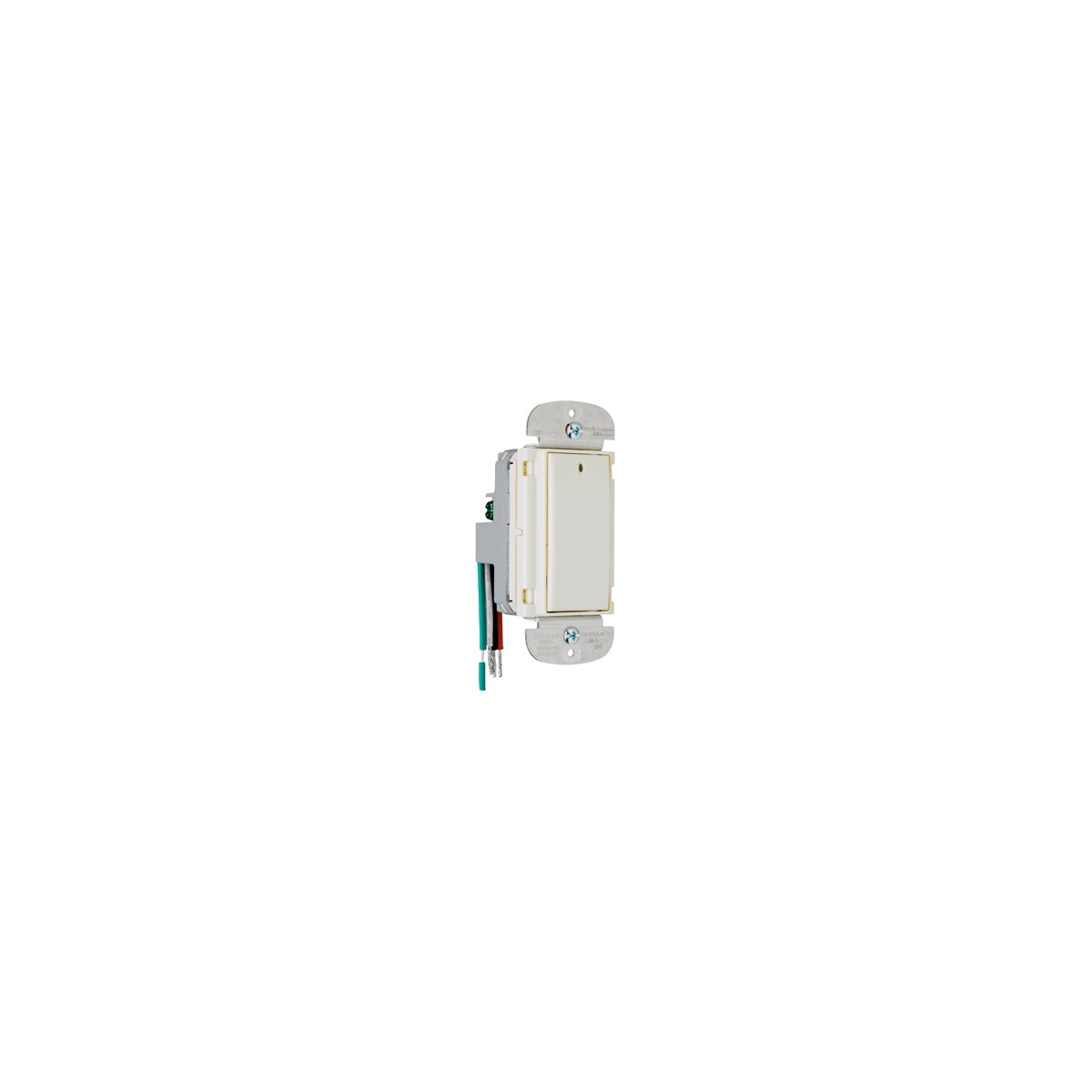

In-Wall Incandescent Dimmer, Ivory DRD2-I – Wireless Lighting Control

The In-Wall Incandescent Dimmer DRD2-I by On-Q is designed for residential lighting control applications, enabling smooth dimming of traditional incandescent and quartz halogen bulbs without requiring a neutral wire connection. As part of the RF Lighting Control System, this dimmer can be wirelessly controlled from multiple locations within a home, making it a practical solution for electrical distributors and lighting solution providers focused on advanced wire and cable control technologies.

Specifications

• Manufacturer: On-Q
• Manufacturer Part #: DRD2I
• Application: Residential
• Operating Voltage: 120VAC, 60Hz
• Maximum Load Rating: 600W
• Minimum Load Required: 60W
• Load Type Compatibility: Incandescent (tungsten/quartz halogen), 60-600W
• Amperage Rating: 5 Amps
• Number of Poles: 1
• Mounting Type: Electrical Box
• Material: Plastic
• Color: Ivory
• Dimensions: 4.33" Length x 2.44" Width x 2.44" Height x 1.88" Depth
• Product Weight: 0.36 lbs

Features

• Wireless control capability as part of the RF Lighting Control System for multi-location management
• Compatible with incandescent and quartz halogen lamps only; not suitable for motors or diode-equipped lamps
• No neutral wire required for installation, simplifying retrofit and new installations
• Supports grouping with other Miro wireless devices for synchronized lighting control
• Power fail memory preserves last dimming level after power interruptions
• Air gap isolation feature for safe lamp replacement
• FCC compliant with Class B digital device standards
• Recommended installation in deep wall boxes for ease of wiring
