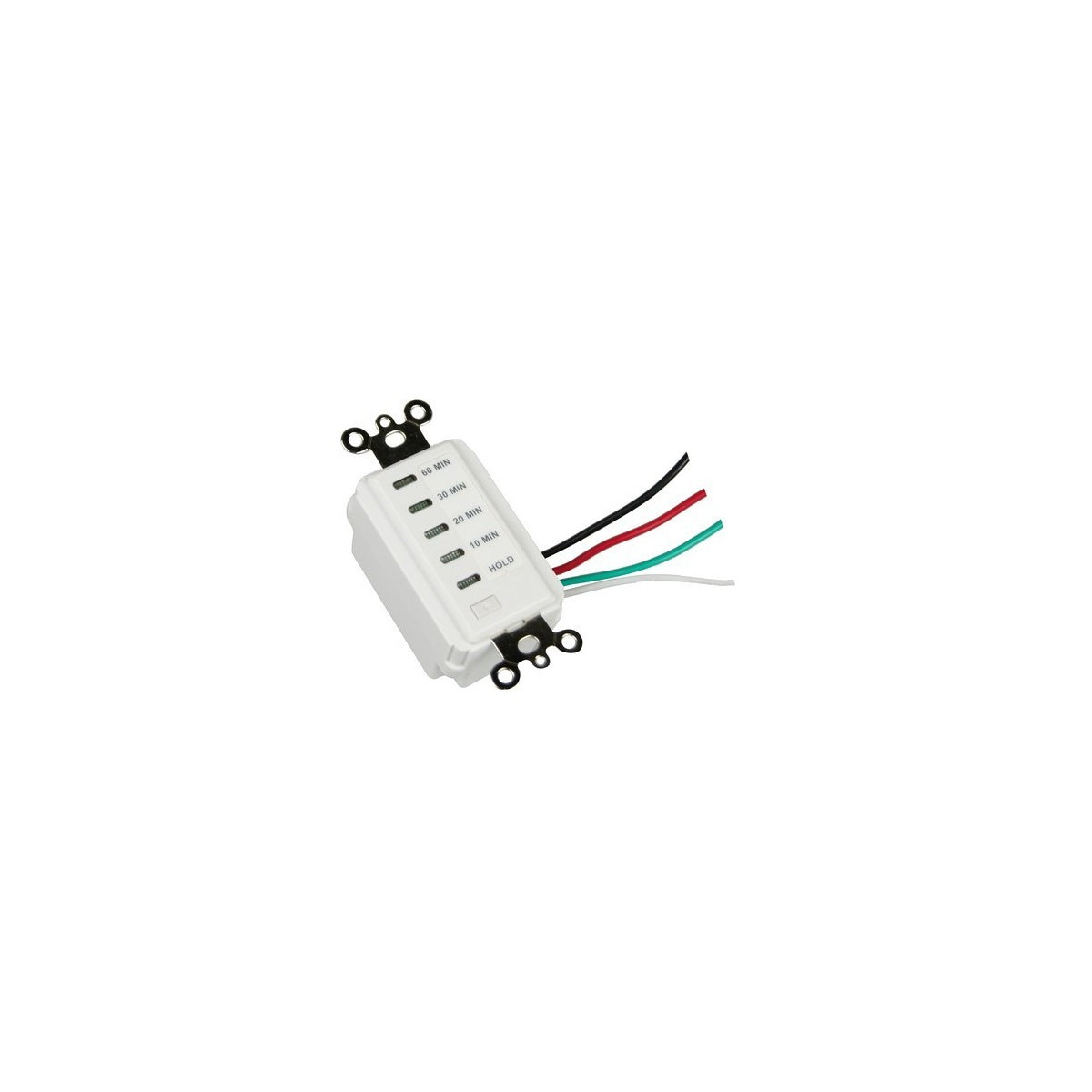

In Wall Countdown Timer Lighting Control

The In Wall Countdown Timer is designed for precise auto on/off lighting control in residential and commercial electrical installations. Suitable for use by electrical distributors and switchgear suppliers, this timer facilitates timed control of lighting and appliances, enhancing energy efficiency and convenience. It requires a neutral wire for operation and is compatible with standard incandescent, appliance loads, and CFL bulbs (except those labeled incompatible with timer controls).

Specifications

• Voltage Rating: 120V
• Current Rating: 15A Resistive (1800W Appliance), 8.3A Tungsten (1000W Incandescent)
• Motor Load: 1/4 HP, 1000VA Ballast
• Color: White
• Product Weight: 0.6 lbs
• Manufacturer Part #: 80505
• UPC: 601986805056

Features

• Four selectable countdown settings: 10, 20, 30, and 60 minutes
• Hold feature to keep lights on indefinitely until manually turned off
• Compatible with compact fluorescent lamps (CFLs) except those marked incompatible with timers
• Requires neutral wire for proper installation
• Not compatible with 3-wire switch configurations
• Easy installation with included wire connectors and mounting screws
• Indoor use only
