In-Sure® Push-In Wire Connector, Model 87 5-Port Gray, Jar of 150
SKU: #203478
Part: #30-087J
UPC: 783250460779
In-Sure® Push-In Wire Connector, Model 87 5-Port Gray, Jar of 150
SKU: #203478
Part: #30-087J
UPC: 783250460779
Next day delivery
Description

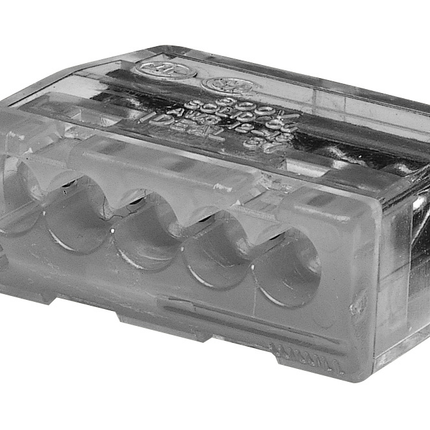

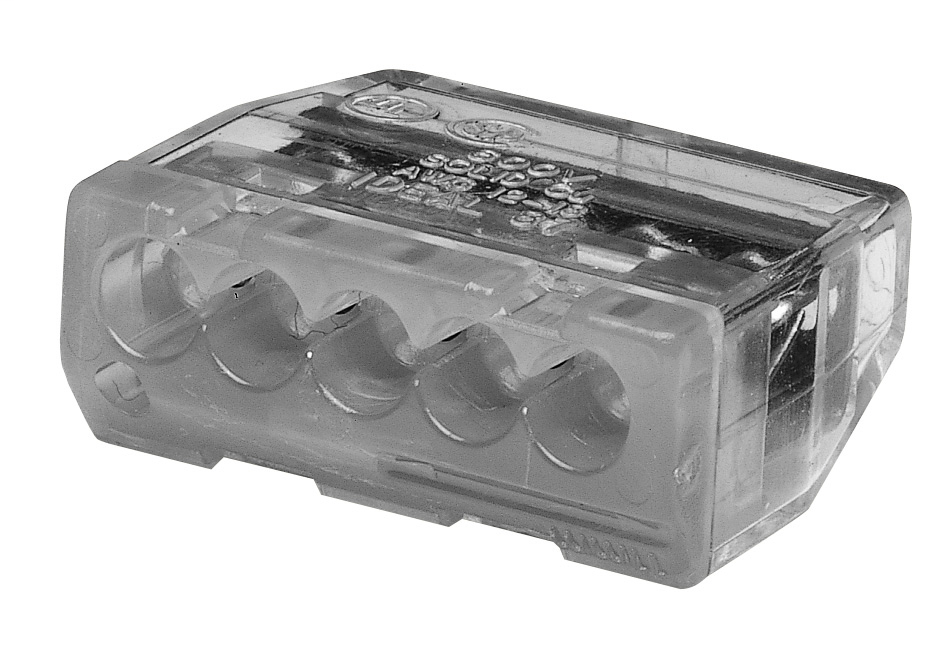

In-Sure® Push-In Wire Connector, Model 87 5-Port Gray – Wire Connector for Electrical Applications
The In-Sure® Push-In Wire Connector Model 87 is designed for quick, reliable wire connections in residential, light commercial, lighting retrofit, and pre-fab wiring systems. Ideal for electrical distributors and lighting solutions providers, this connector supports branch circuit wiring applications where traditional twist-on connectors are typically used. Its low insertion force and ergonomic design facilitate easy push-in connections, improving productivity and reducing installation time in tight spaces and shallow boxes.
Specifications
- Voltage Rating: 600V maximum for building wire, 1000V maximum for signs and luminaires
- Temperature Rating: 105°C (221°F) maximum
- Wire Range: Solid 20-12 AWG, Stranded 16-14 AWG (≤19 strand), 18 AWG (7 strand), Tin Bonded Stranded 18-14 AWG (≤19 strand)
- Strip Length: 3/8" to 1/2" (9.5mm - 13mm)
- Housing Material: Polycarbonate
- Contacts: Stainless steel and copper with tin plating
- Color: Gray with transparent shell
- Ports: 5
- Product Weight: 1.5 lbs (Jar of 150)
- Certifications: UL Listed (UL 486C, UL 467 Grounding), CSA Certified (CSA C22.2 #188), CE Certified, UL 94V-2 Flame Rating
- Manufacturer Part Number: 30-087J
Features
- Low insertion force reduces risk of repetitive trauma injury during installation
- Color-coded shell enables quick identification of port configuration
- Clear polycarbonate housing allows visual verification of each connection
- Ergonomic design for easier grip and more comfortable push-in connections
- Compact size suitable for installations in tight spaces and shallow boxes
- Ground rating eliminates the need for a special ground connector
- Tough, flame-retardant housing withstands harsh environments
- Stainless steel inserts restrict pull-out for secure connections
- Check port available for continuity testing
