In-Sure® Push-In Wire Connector, Model 34 4-Port Yel, Jar of 200
SKU: #203583
Part: #30-1034J
UPC: 783250693580
In-Sure® Push-In Wire Connector, Model 34 4-Port Yel, Jar of 200
SKU: #203583
Part: #30-1034J
UPC: 783250693580
Total Price: $0.17 per each Sold in increments of 200 each
Next day delivery
Description
In-Sure® Push-In Wire Connector, Model 34 4-Port Yel – Wire Connector for Electrical Wiring

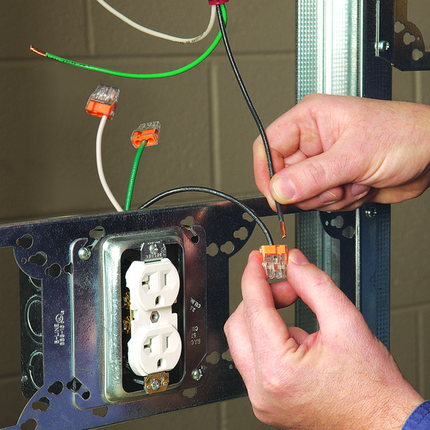

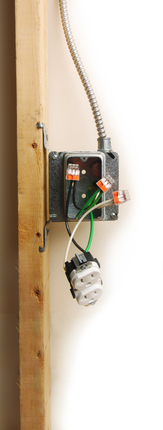

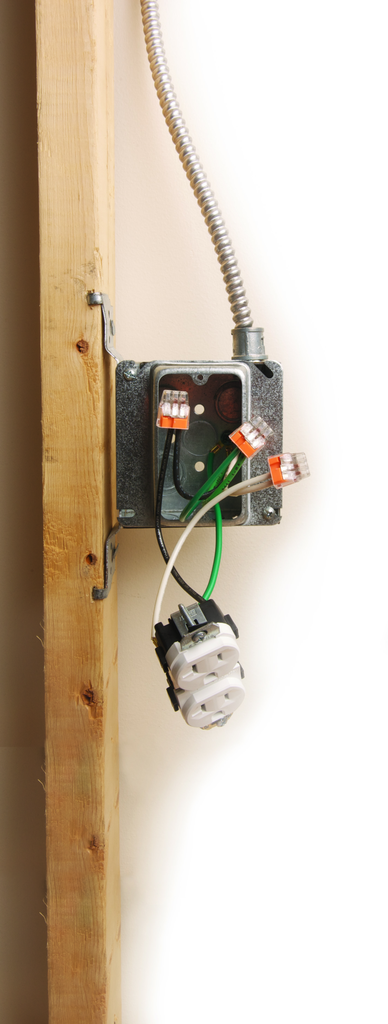

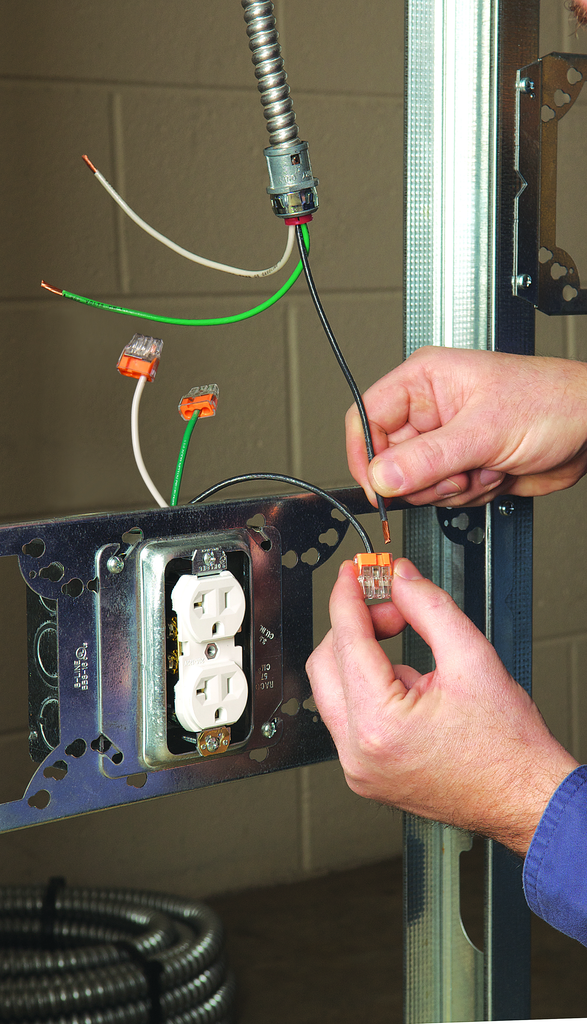

The In-Sure® Push-In Wire Connector is designed for fast, reliable connections in residential, light commercial, lighting retrofit, and pre-fab wiring systems. Ideal for grounding and bonding applications, this connector simplifies branch circuit wiring by allowing wires to be pushed in with low insertion force, eliminating the need for twisting. The clear polycarbonate housing permits visual verification of every connection, while the ergonomic design enhances grip comfort. Rated to 600V and 105°C, and UL Listed and CSA Certified, the compact yellow connector is suitable for solid, stranded, and stranded tin-bonded wire types, making it a practical choice for electrical distributors and lighting solution providers.
Specifications
- Application: For Grounding And Bonding Applications
- Connection: 4 Ports
- Color: Yellow
- Wire Type: Solid, Stranded, Stranded (Tin Bonded)
- Voltage Rating: 600 Volts Max.
- Temperature Rating: 105°C (221°F)
- Product Weight: 0.0078 lbs
- Manufacturer: IDEAL Industries
- Manufacturer Part #: 30-1034J
Features
- No-twist push-in design reduces repetitive motion fatigue
- Clear housing allows visual verification of connection
- Color-coded shell for quick identification of port configuration
- Ergonomic design for easier grip and more comfortable push-in connections
- Compact size fits in tight spots and shallow boxes
- Tough, flame-retardant polycarbonate shell stands up to harsh environments
- UL Listed and CSA Certified for safety and reliability
- Accepts solid, stranded, and stranded tin-bonded wires
- Rated for 20 Amp circuits
