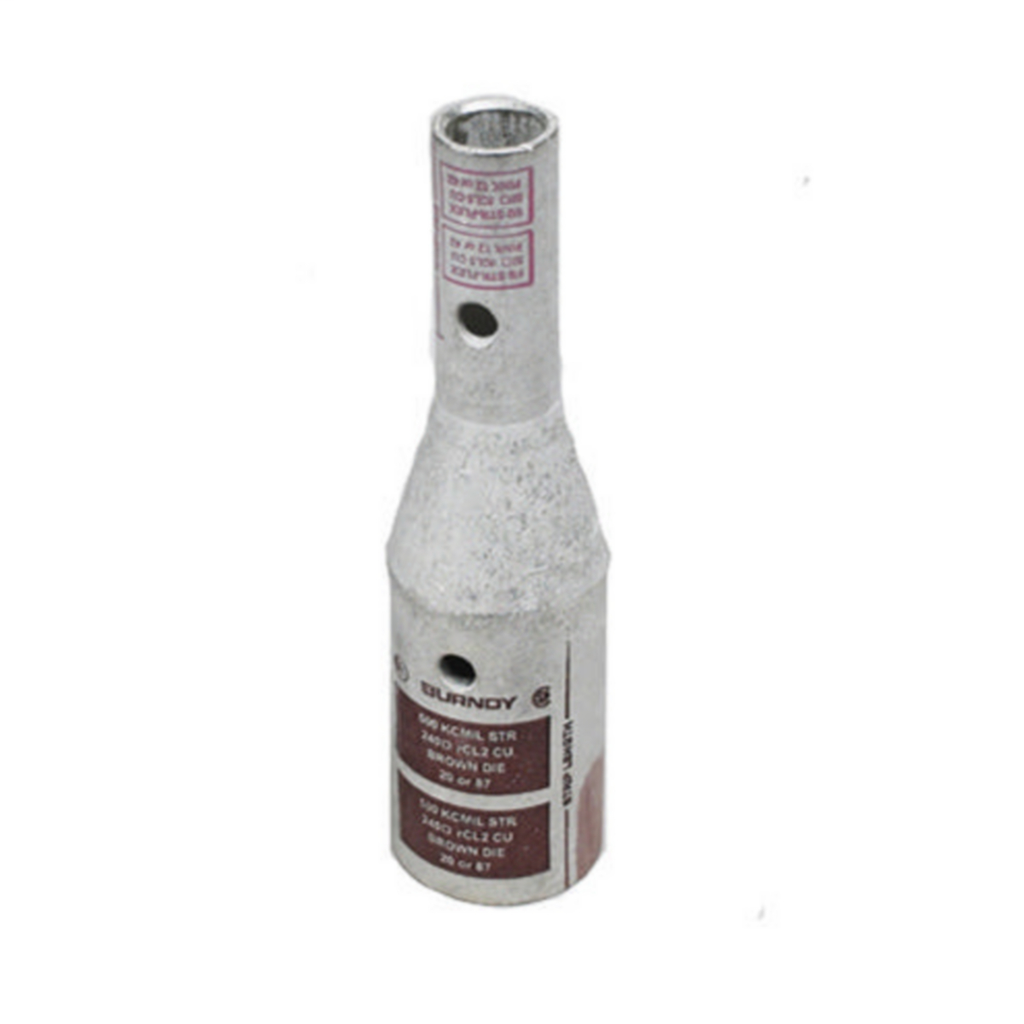

Specifications

General

• Color Code - Side A: Pink
• Color Code - Side B: Brown
• Connector Type: Reducer;Splice
• Die Index - Element A: L99
• Die Index - Element B: 20
• Die Index Run Side: L99
• Die Index Tap Side: 20
• Feature - Barrel Style: Skived
• Feature - Barrel Type: Standard
• Material: Copper
• Plated: Y
• Plating Type: Tin - Electro Plated
• Temperature Rating: 194
• Trade Name: HYREDUCER™
• UPC: 781810355367
• UPC 12 Digit: 7818103553677

Dimensions

• Dimension - B Length fraction: 1-7/8 in
• Dimension - B Length inch: 1.88 in
• Dimension - L Length Overall mm: 103 mm
• Dimension - Length BB inch: 1.69 in
• Dimension - Length Overall inch: 4.06 in
• Dimension - Strip Length inch: 1.77 in

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper Flex G Size A: 500 kcmil
• Conductor - Copper Flex G Size A Range: 500 kcmil
• Conductor - Copper Flex H Size A: 500 kcmil
• Conductor - Copper Flex H Size A Range: 500 kcmil
• Conductor - Copper Flex I Size A: 500 kcmil
• Conductor - Copper Flex I Size A Range: 500 kcmil
• Conductor - Copper Flex K Size A: 500 kcmil
• Conductor - Copper Flex K Size A Range: 500 kcmil
• Conductor - Copper Flex M Size A: 500 kcmil
• Conductor - Copper Flex M Size A Range: 500 kcmil
• Conductor - Copper Str Size B: 500 kcmil
• Conductor - Copper Str Size B Range: 500 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No
