In-line Reducer splice kit
SKU: #333004
Part: #YSR10CFX14CLTCKITC
UPC: 781810474006
In-line Reducer splice kit
SKU: #333004
Part: #YSR10CFX14CLTCKITC
UPC: 781810474006
Next day delivery
Description

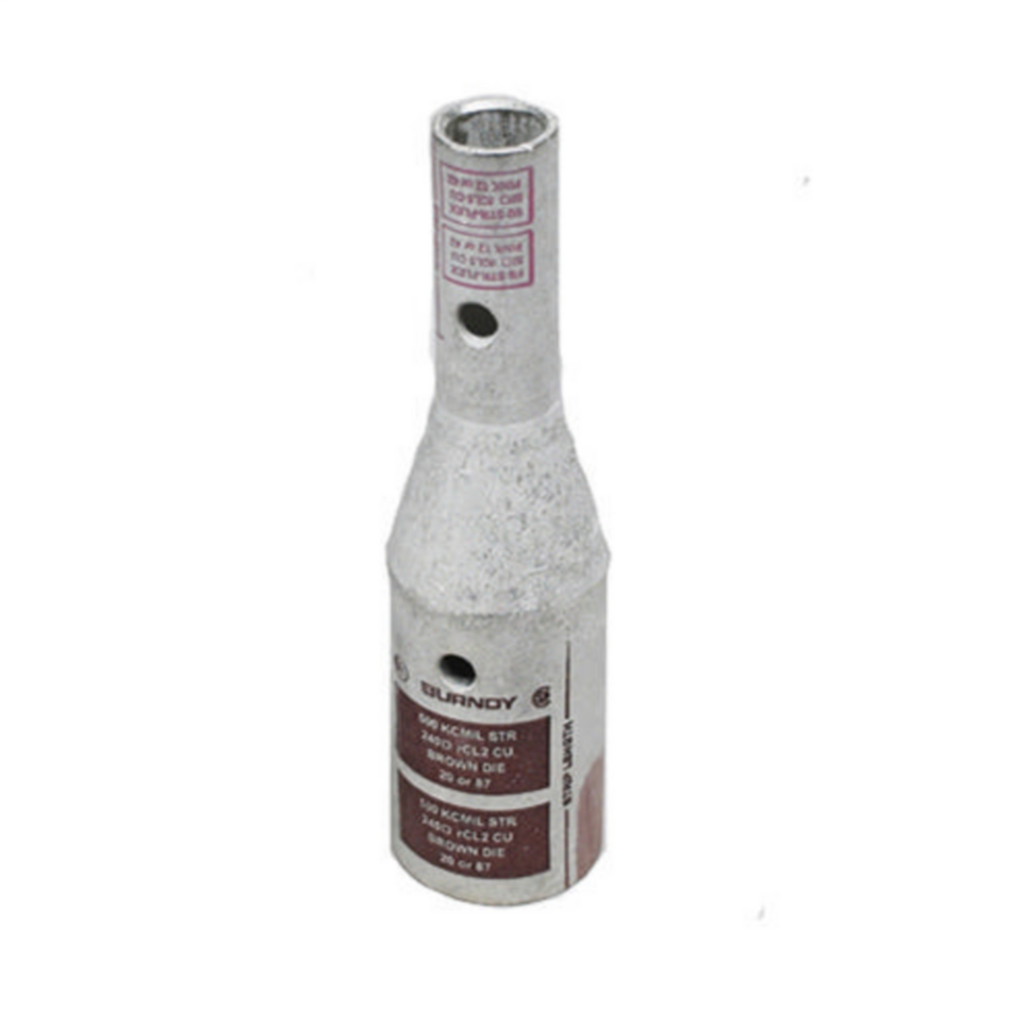

In-line Reducer splice kit – Wire and Cable Connector
The In-line Reducer splice kit by Burndy is designed for wire reducing splice applications, providing a reliable electrical connection between wires of different sizes. This compression copper reducer/splice kit features an electro-tin plated finish for enhanced conductivity and corrosion resistance. It is suitable for use in wire and cable installations where reducing conductor size is required, making it a practical solution for electrical distributors and switchgear suppliers seeking dependable lighting and electrical solutions.
Specifications
- Application: Wire Reducing Splice
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 10 AWG-14 AWG
- Connection Type: Reducer; Splice
- Max. Voltage: 35000 volts
- Product Weight: 0.0500 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YSR10CFX14CLTCKITC
- UPC: 781810474006
Features
- Compression copper connector with electro-tin plated finish for durability and conductivity
- Includes a through inspection window on each side for cable verification
- Standard barrels designed for flexible stranded wire sizes #10 AWG to #14 AWG
