In-line Reducer splice kit
SKU: #333028
Part: #YSR282CFXLTCKITC
UPC: 781810345566
In-line Reducer splice kit
SKU: #333028
Part: #YSR282CFXLTCKITC
UPC: 781810345566
Next day delivery
Description

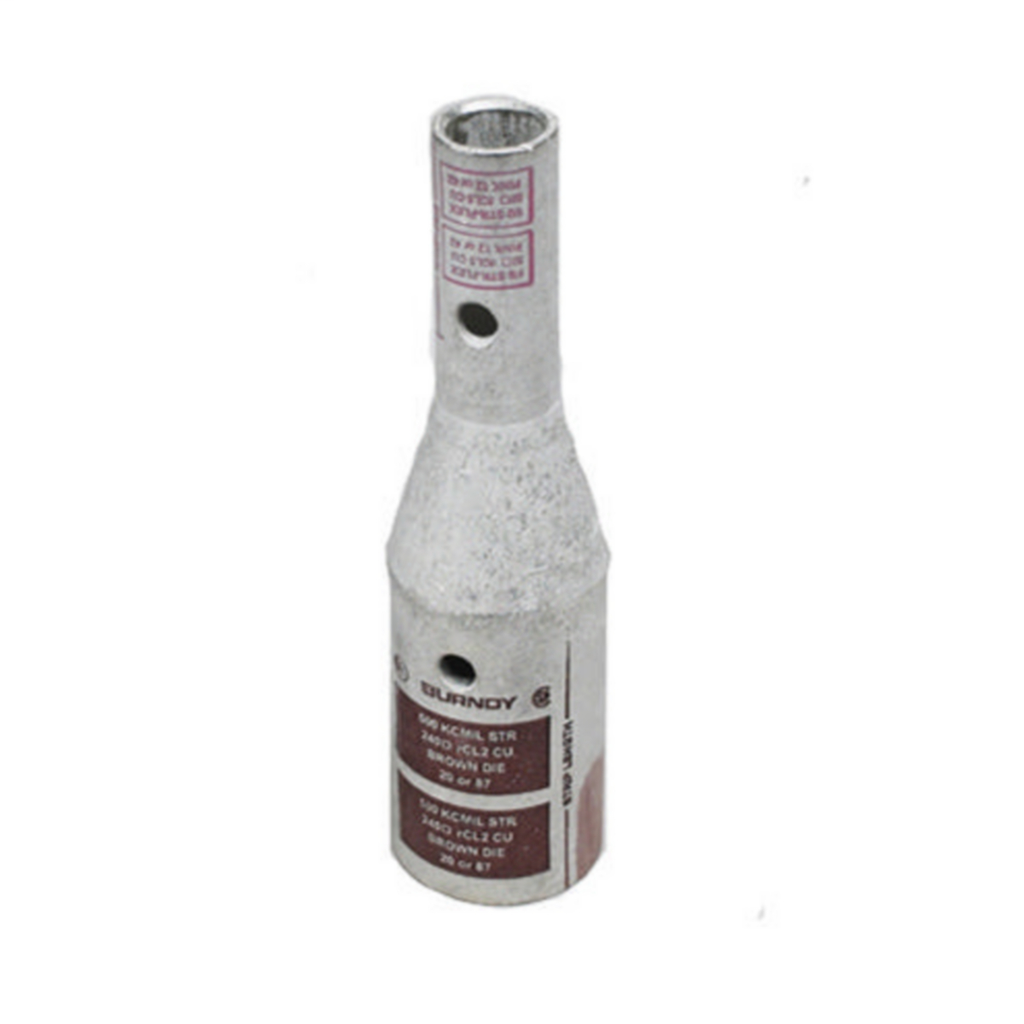

In-line Reducer Splice Kit - Wire and Cable Connector
The Burndy In-line Reducer Splice Kit is designed for wire reducing splice applications, providing a reliable electrical connection between conductors of different sizes. This copper compression splice kit is suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers requiring high-quality wire and cable connectors. The kit features an electro-tin plated copper construction to ensure conductivity and corrosion resistance, supporting a maximum voltage rating of 35,000 volts.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 4/0 AWG - 2 AWG
- Connection Type: Reducer; Splice
- Max. Voltage: 35000 volts
- Product Weight: 0.1680 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YSR282CFXLTCKITC
Features
- Compression copper reducer/splice with inspection window for cable inspection on each side
- Standard barrel design with electro-tin plating for enhanced corrosion resistance
- Includes heat shrink tubing for environmental protection and insulation
- Suitable for stranded and flexible copper conductors
- Packaged with multilingual installation instructions and product labeling
