In-line Reducer splice kit
SKU: #333083
Part: #YSR3934FXLTCKITC
UPC: 781810472309
In-line Reducer splice kit
SKU: #333083
Part: #YSR3934FXLTCKITC
UPC: 781810472309
Next day delivery
Description

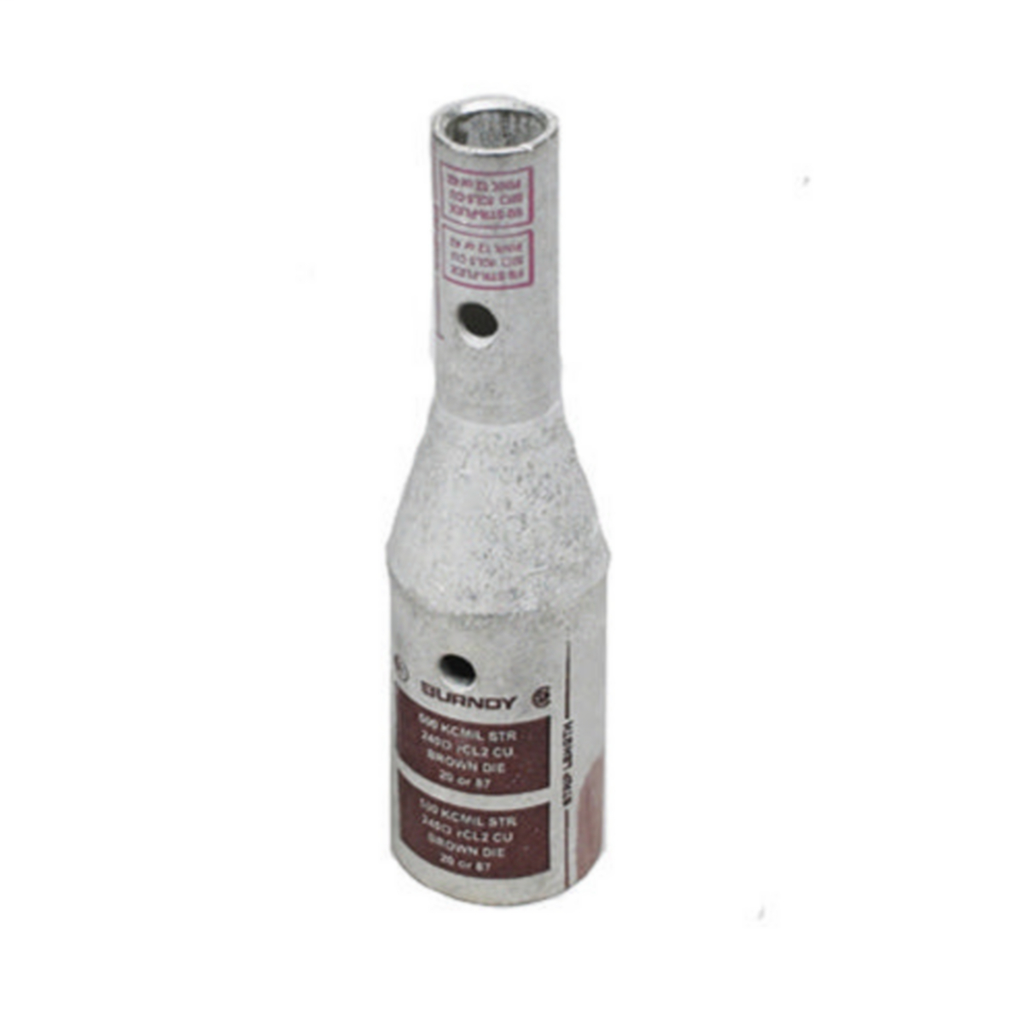

In-line Reducer Splice Kit - Wire Reducing Splice
The In-line Reducer Splice Kit by Burndy is designed for electrical distributors and switchgear suppliers requiring reliable wire reducing splice solutions. This compression copper reducer/splice kit facilitates the connection of different conductor sizes in wire and cable applications, offering a secure and efficient electrical connection. It is suitable for high-voltage environments, supporting up to 35,000 volts, making it appropriate for various industrial and commercial electrical installations.
Specifications
- Application: Wire Reducing Splice
- Conductor Size: 750 KCMIL - 350 KCMIL
- Max. Voltage: 35000 volts
- Material: Copper
- Finish: Tin-Plated
- Connection Type: Reducer; Splice
- Product Weight: 0.6000 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YSR3934FXLTCKITC
Features
- Compression copper reducer/splice with electro-tin plating for corrosion resistance
- Includes inspection window for cable inspection on each side
- Standard barrel design suitable for both stranded and flexible-stranded conductors
- Supports a range of conductor sizes from 750 kcmil stranded to 350 kcmil flexible stranded
- Designed for secure electrical connections in wire and cable applications
