In-line Reducer splice kit
SKU: #333055
Part: #YSR2CFX8CFXLTCKITC
UPC: 781810473948
In-line Reducer splice kit
SKU: #333055
Part: #YSR2CFX8CFXLTCKITC
UPC: 781810473948
Next day delivery
Description

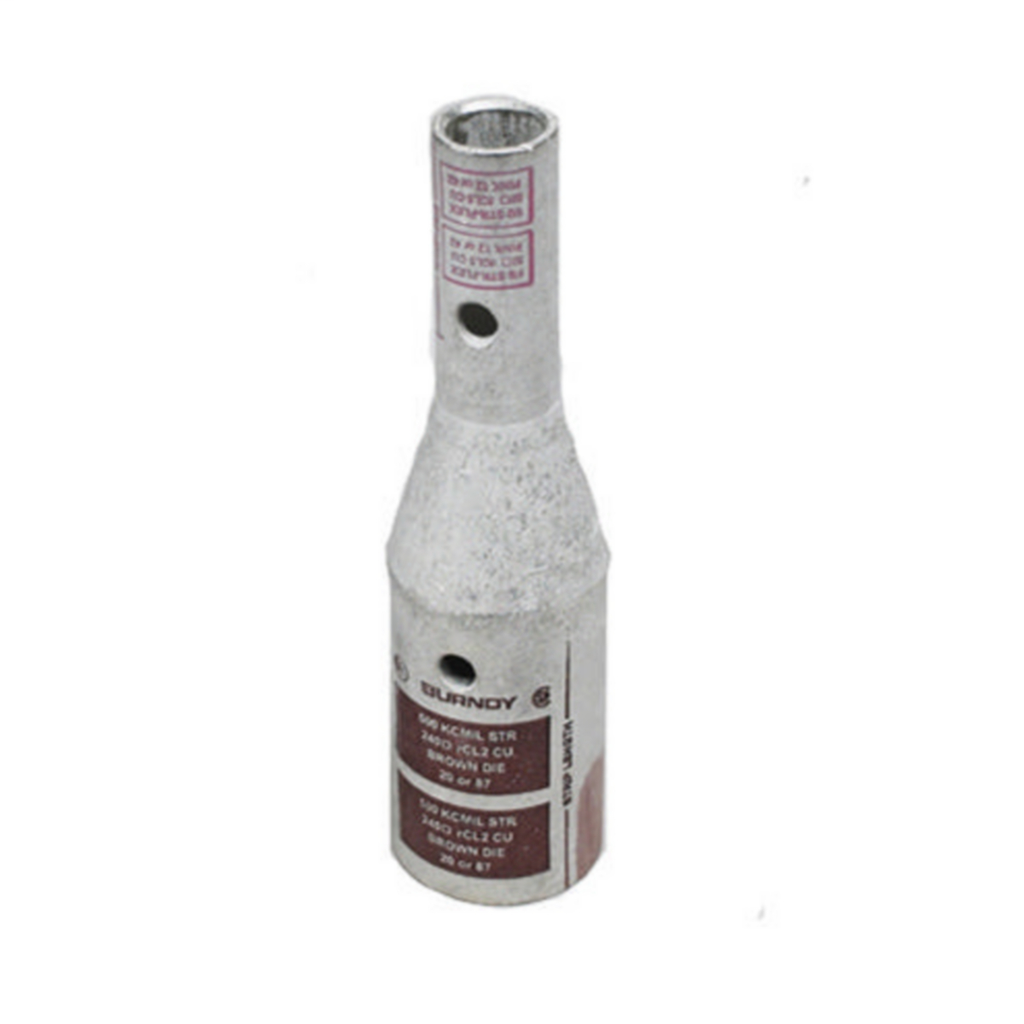

In-line Reducer Splice Kit – Wire Reducing Splice
The In-line Reducer Splice Kit by Burndy is designed for wire reducing splice applications, providing a reliable electrical connection between different conductor sizes. This kit is suitable for electrical distributors and lighting solutions requiring secure splicing of wire and cable ranging from 2 AWG to 8 AWG. It features a copper compression connector with electro-tin plating for enhanced conductivity and corrosion resistance, making it ideal for use in switchgear and other electrical distribution systems up to 35,000 volts.
Specifications
- Application: Wire Reducing Splice
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 2 AWG - 8 AWG
- Connection Type: Reducer; Splice
- Max. Voltage: 35,000 volts
- Product Weight: 0.0550 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YSR2CFX8CFXLTCKITC
Features
- Compression copper reducer/splice with through inspection window for cable inspection on each side
- Electro-tin plated for corrosion resistance and improved conductivity
- Standard barrel design suitable for stranded and flexible stranded conductors
- Includes heat shrink tubing for environmental protection and mechanical support
- Compatible with standard Burndy installation tooling
